Jaguar S-Type 2002 Electrical Schematic – 172-Page OEM Wiring Manual

Jaguar S-Type 2002 Electrical Schematic – if you’re staring at a dead instrument cluster or a no-start with the correct fuel pressure, this is the document that tells you which pin carries the 12-volt feed and which ground goes open. I’ve been turning wrenches in San Antonio for 28 years, and I’ve seen otherwise good techs throw parts at an electrical problem because they were working off a generic wiring book. That stops here.

This 172-page manual covers the 2004 model year S-Type – the one with the multiplex network and modules that talk to each other over CAN and SCP buses. You get the OEM diagrams for power distribution, battery circuits, engine management, transmission controls, and every accessory from the heated seats to the telematics unit. No condensed aftermarket version. Factory-issued, same print that sat on the Jaguar dealer tech’s bench.

What’s Inside the Jaguar S-Type 2002 Electrical Schematic

Flip to the Table of Contents and you see twenty numbered sections: 01 Power Distribution, 02 Battery;Starter;Generator, 03 Engine Management, 04 Transmission, 05 Chassis, 06 Climate Control, 07 Instrumentation, 08 Exterior Lighting, 09 Interior Lighting, 10 Steering Column;Pedals;Mirrors;Heaters, 11 Seat Systems, 12 Central Locking;Security, 13 Wash/Wipe, 14 Powered Windows;Sliding Roof, 15 In-Car Entertainment, 16 Telematics, 17 Occupant Protection, 18 Driver Assist, 19 Ancillaries, 20 Vehicle Multiplex Systems. Then an Appendix with SCP and CAN message lists. That’s the line-up. Each section starts with a figure number – for example, Fig. 01.1 shows Main Power Distribution for all vehicles. You trace the wire from the battery junction box straight to the ECM. No guesswork.

Power Distribution and Battery Circuits

The battery circuit chapter (Section 02) gives you the exact routing from the battery to the starter solenoid and generator. Need to know which fuse feeds the engine control module? It’s in Section 01. The ground point locations are on page 22, and I’ll tell you this – I’ve seen more intermittent failures traced back to a corroded ground point than to a bad module. This manual lists every ground, with the exact location on the body, so you can put your meter on the right stud the first time.

3 Sections You’ll Use Most

Section 03 – Engine Management covers the V6 and V8 ECM pinouts, injector drivers, crank and cam sensor circuits. Section 04 – Transmission shows the TCM wiring for the ZF 6HP26 and the older 5-speed. If you’re swapping a transmission or chasing a shift solenoid fault, you need the pin identification starting on page 23. Section 06 – Climate Control includes the blend door actuator circuits – those are a headache on these cars when the mix door gets stuck. The manual shows the control module location and the harness in-line connectors (pages 18-19) so you can back-probe without shorting anything out.

Get the Ground Point Locations Right

There are eleven ground points listed on page 22. G101, G102, G201 – all with specific locations like “left side of engine compartment, inner fender, near battery tray”. Skipping ground checks? That’s how you chase a phantom misfire that goes away when the car warms up. I watch junior guys go straight to the ECM and replace it – then the next day the same code comes back. Check the ground. This manual gives you the exact stud location and the wire color code.

OEM vs Aftermarket: Why This 172-Page Manual Works

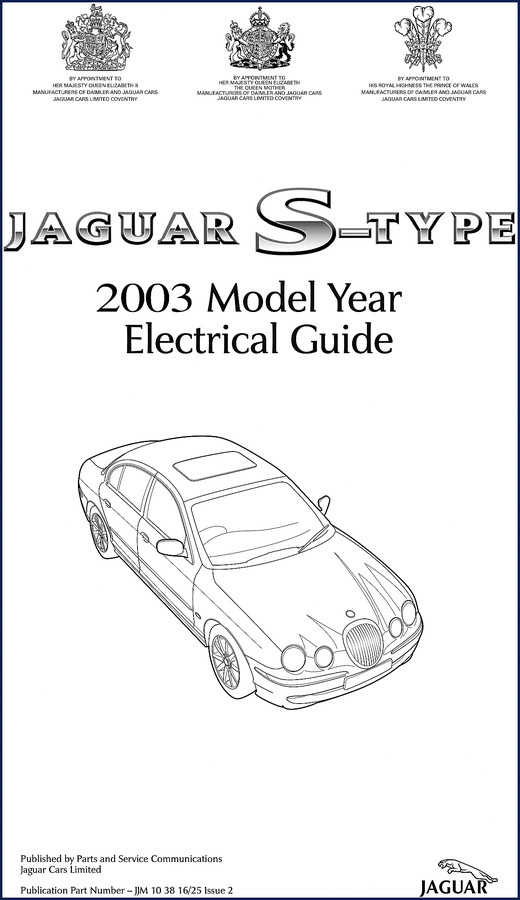

I’ve got a stack of third-party electrical books that redraw the factory diagrams and inevitably leave out a junction connector or swap a wire color. This is the real deal – published by Jaguar Cars Limited, Parts and Service Communications. The OCR excerpt shows the royal warrants on page 1. That’s the level of documentation you’re getting. The pin numbers on the control module identification table (pages 23-29) match what you see when you pull the connector off the module. Aftermarket? They often re-label pins or skip the notes about “do not connect test light to this circuit.” The manual includes the SCP and CAN message appendix – you don’t get that from a Haynes or a Chilton. Automotive Industry Overview”>Automotive Industry Overview standards demand this level of detail for multiplex systems. If you’re working on a 2004 S-Type, get the correct battery specification from Automotive Battery”>Automotive Battery resources – then use this manual to wire it in without popping the ECM fuse.

Audience: Who Needs This Manual on the Bench

DIY owners who have a multimeter and know how to read a schematic will get through a no-crank or a dead tail light without calling the dealership. Home garage enthusiasts who want to upgrade the sound system or add driving lights will find the harness in-line connector positions on page 18-19 – you can tap into the correct circuit without splicing into a CAN bus line. Beginners? If you can follow a colored line from one pin to another, you can troubleshoot the blower motor resistor or the window regulator. But I’m not sugarcoating it – if you don’t know how to set a DMM to DC volts, you need to learn that first. This manual gives you the map; you bring the tool knowledge. Professional mechanics will use it to reduce diagnosis time on the S-Type’s peculiarities, like the Telematics module (Section 16) causing battery drain when it doesn’t go to sleep. The Vehicle Multiplex Systems section (20) explains the bus architecture – you can’t fix a network failure without that.

Related Manuals You Might Need

• Jaguar S-Type XJ V6 On-Board Diagnostics Manual 2005″>Jaguar S-Type XJ V6 On-Board Diagnostics Manual 2005
• Jaguar S-Type XJ V8 Engine Management Diagnostics Manual”>Jaguar S-Type XJ V8 Engine Management Diagnostics Manual
• Jaguar On-Board Diagnostics V6 and V8 Engine Management”>Jaguar On-Board Diagnostics V6 and V8 Engine Management

FAQ – Jaguar S-Type Electrical Schematic

Does this manual cover the 2002 model year S-Type?

The manual is marked 2004 Model Year, but the issue date is June 2002. It covers the 2002.5 and 2004 S-Type with the updated electrical architecture. If your car is a 2001–2002 with the older RJB and different ECU pinout, check the section numbers – some differences exist in the airbag and security circuits.

Which section has the transmission solenoid wiring?

Section 04 – Transmission. The pin numbers for the TCM are in the Control Module Pin Identification table (pages 23–29).

Access the Factory Manual – stop chasing ground loops with a test light and a prayer. This 172-page OEM schematic gives you the same electrical data Jaguar dealers pay for. Grab your copy from AutoRepairManuals and keep it on the bench next to your multimeter. No aftermarket redraws, no missing pinouts – just the factory wiring diagrams for the S-Type’s Engine, Transmission, and all 20 electrical systems.
