Iveco 8131 I, 8141 I 1984 Workshop Manual

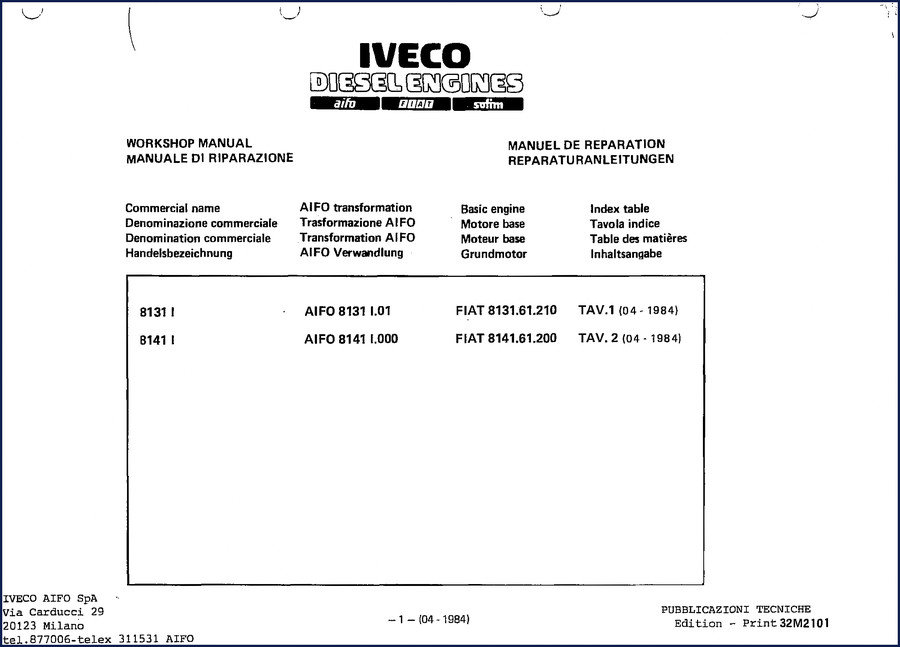

If you are pulling an Iveco 8131 I or 8141 I diesel apart and relying on some aftermarket pamphlet that says “torque to spec” without telling you which spec, you are wasting time and risking a come-back. I have seen one too many broken crankshafts because somebody guessed at the main bearing cap torque. This Workshop Manual from 1984 is the real deal – printed by IVECO AIFO SpA for the 8131.1.01 and 8141.1.000 variants. 160 pages of factory data, not a reprint of a reprint. Page 1 lists the exact model designations: AIFO 8131.1.01, FIAT 8131.61.210 for the 8131 I, and AIFO 8141.1.000, FIAT 8141.61.200 for the 8141 I. Page 3 gives you the full table of contents in English, Italian, French, and German. That is the kind of documentation that keeps a six-bay shop running.

Engine Overhaul Data – What You Get

This manual breaks down every major engine system into numbered sections. Crankshaft bearings overhaul data sits under section 02.04. Valve springs and valve gear are sections 02.08 and 02.10. Cylinder head overhaul data appears twice – once for engines up to serial number 001080 (02.06) and another for engines from 001081 onward (02.07). That matters because a head casting change can shift your torque sequence. The section on pistons, pins, and rings (02.02) gives you clearance ranges you will not find in any generic guide. If you are rebuilding a set of 8131 I engines, you need those numbers to be correct the first time.

Torque Data and Fastener Specs

Section M.00 is where you live when you are buttoning up an engine. TORQUE DATA – plain and simple. No “tighten to feel.” These are the factory torque values for cylinder head bolts, main bearing caps, connecting rod nuts, and every other critical fastener on the 8141 I and 8131 I. I have seen manuals that lump all M12 bolts into one generic torque. Not this one. The values are specific to the component. A head bolt on an 8141 I gets a different number than a main cap bolt because the material and thread pitch differ. You want to use a torque wrench that is calibrated and read the table on the page labeled M.00. Do not skip this step. A snapped bolt in a blind hole costs you an afternoon and a heli-coil kit.

Crankshaft and Valve Gear: Factory Clearances

Section 10.00 covers the crankshaft assembly. Journals, radii, thrust faces – the manual tells you the wear limits. Pair that with section 02.04 for the bearing shell selection. If you are replacing bearings, you need the code stamped on the block to match the shell grade. This manual explains that process. Valve gear (02.10) includes camshaft and timing drive specs. The timing system has its own dedicated section (20.00) with the injection pump timing procedure. A lot of guys skip the valve clearance adjustment because they think it is “close enough.” That is how you burn an exhaust valve. The manual gives you the cold clearance for both intake and exhaust on the 8131 I and 8141 I. Follow it.

Why OEM Beats Aftermarket Every Time

I have a stack of aftermarket manuals in my office that I use for door stops. They copy from each other, they drop decimal points, and they never include the service tool numbers. This Workshop Manual includes section 45.00 – SERVICE TOOLS. You get the part numbers for the pullers, the injector test bench adapters, and the dial gauge holders. If you have ever tried to set injection timing without the correct locking pin, you know why that matters. The OEM documentation also lists the original IVECO AIFO part numbers for each tool. You can cross-reference them to aftermarket equivalents, but at least you know what you are looking for. Aftermarket manuals? They will tell you to “use a suitable tool.” That is not a specification. That is a guess.

Who Needs This Manual?

Home garage enthusiasts rebuilding an 8131 I out of a generator set. Diesel pump shops that see 8141 I engines from irrigation equipment. Fleet mechanics maintaining old IVECO trucks. And any technician who has been burned by incorrect wiring diagrams or torque values. If you are working on these engines, you need the actual factory overhaul data. The manual covers lubrication (25.00), cooling (30.00), fuel system (35.00), and injectors (40.00). Even the auxiliaries section (22.00) is included. There is no reason to flip through YouTube videos that skip the critical steps. This manual is 160 pages, written by the engineers who designed the engine. Buy it once, use it for every rebuild.

FAQ

Does this manual cover the 8141 I with the intercooler option?

The 8141 I basic engine is covered, but the manual does not include an intercooler section. The intercooler was a later AIFO addition. You will get the base engine specs, torque data, fuel injection, and timing. If you have a 8141 I with a turbo, the turbocharger section is not in this document. Check the related manuals below for that.

What torque value does it give for the cylinder head bolts on the 8131 I?

Section M.00 lists the specific value. I am not going to type it here because you need to see the table with the tightening sequence and the angle-tighten steps. Buy the manual.
