Isuzu 3LA1, 3LB1, 3LD1 Parts Catalog – OEM Factory Document (104 Pages)

You’ve got an Isuzu 3LA1, 3LB1, or 3LD1 diesel engine on the bench or in a piece of equipment. You need a gasket, a piston ring, an injector line, or a seal. You punch the old part number into Google and get ten different results. With this genuine Isuzu Parts Catalog, you get the actual OEM exploded views and the exact part numbers the factory stamped on the box. That means you order once, get the right piece, and move on to the next job. No wasted time, no wrong parts, no calling the customer back.

104 Pages of Exploded Views and Part Numbers

This document is 104 pages of Isuzu factory parts breakdowns. Each page shows the engine assembly as a clear exploded diagram with every component labeled by its genuine part number. You get the oil pump group, cylinder head group, timing gear train, fuel injection system, and the whole rotating assembly broken out. The back of the catalog includes numerical indexes so you can cross-reference a part number you already have. Use this on the bench next to your laptop or print the page you need and tape it to the wall.

Which Engines Does This Cover?

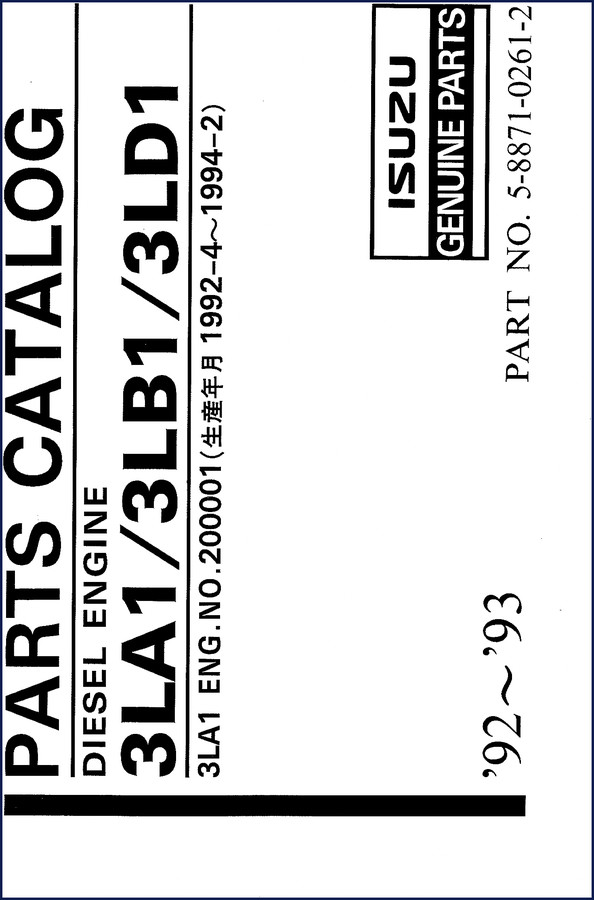

The catalog specifically covers the Isuzu 3LA1, 3LB1, and 3LD1 diesel engines. According to the front matter, it applies to the 3LA1 engine numbers starting from 200001, with production dates between 1992-4 and 1994-2. If your 3LA1 is within that range, every part in the catalog is correct. For the 3LB1 and 3LD1 variants, the same book covers them with separate exploded views. Check your engine serial number – if it matches, you’re set.

Why You Want Genuine Isuzu Documentation

Aftermarket parts catalogs are worse than useless. They guess at supersessions, omit revisions, and often show the wrong illustration. This is a factory-printed Isuzu genuine parts catalog with part number 5-8871-0261-2. It’s the same reference that dealers used in the 1990s. When you order from this book, you get the part that actually fits. If you’re working on industrial equipment, irrigation pumps, or generator sets that use these engines, having the right part number the first time keeps the machine running and your customer happy.

How to Use This Catalog on the Workbench

First, locate your engine model and serial number on the nameplate. Then flip to the exploded view for that engine family. Find the part you need – say the cylinder head gasket – and note the part number callout. Write it down or take a photo. Then either order through an Isuzu dealer or use the number to search online. Keep the catalog open when you disassemble so you see how the parts stack. The exploded views show the order of washers, O-rings, and bushings. You won’t miss a clip or misplace a spring.

What’s Not in This Manual

Let’s be clear: this is a Parts Catalog, not a service manual. It doesn’t tell you how to remove the head or what torque to use on the main bearing bolts. For repair procedures, you need the ISUZU 3LA1 3LB1 3LD1 Industrial Diesel Engine Workshop Manual. That manual has the step‑by‑step, torque tables, and diagnostic flowcharts. But you still need this parts catalog to identify what you’re buying. Don’t start a rebuild without both documents in hand. Also, for other Isuzu equipment, check the Isuzu ZX240-3 Series Parts Catalog – 370 Pages OEM and the Isuzu D-MAX 2009 Parts Catalog | OEM Factory Manual 465 Pages.

Battery? Not in this book. But if you’re diagnosing electrical issues, you’ll want to review the Automotive Battery basics and the Automotive Industry Overview for context on modern starting systems. That’s separate from the engine itself though.

Does this catalog include torque specs?

No.

What engine serial numbers are covered?

3LA1 engine numbers from 200001, production 1992-4 to 1994-2. The 3LB1 and 3LD1 are also covered.

Can I use this to order parts from an Isuzu dealer?

Yes, if you have the part number. Each exploded view labels every component with the Isuzu genuine part number. You can take that number to any dealer or online parts counter and order exactly what you need. No guesswork, no returns.

Is this the same as the workshop manual?

No. The workshop manual has procedures; this parts catalog shows what the parts look like and how they fit together. Both are useful, but different.

Get the right parts the first time. Access the Factory Manual now and keep it on your phone or tablet next to the engine. Every exploded view you need is inside.
