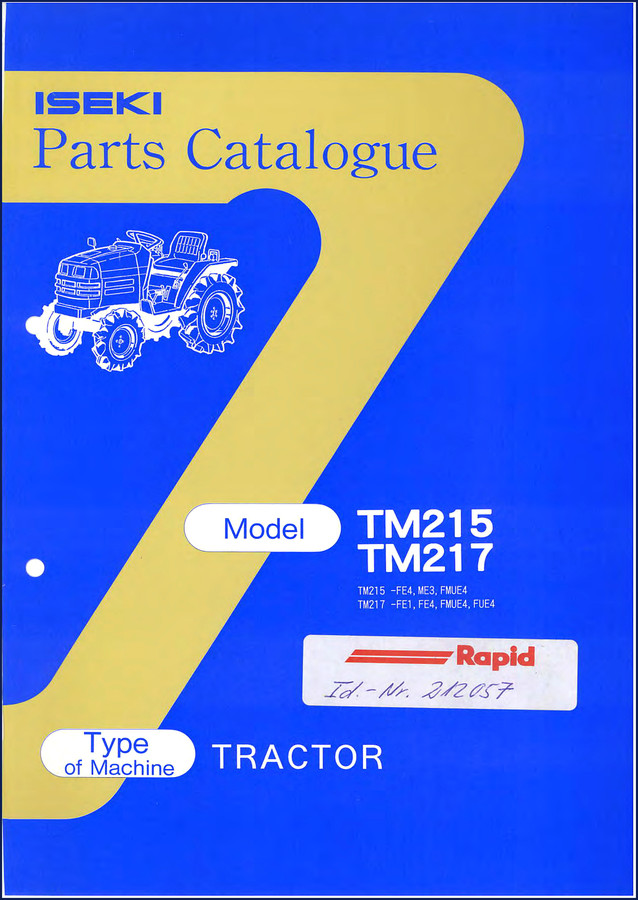

Iseki TM215, TM217 Parts Catalog – Factory Parts Breakdown

Iseki TM215, TM217 Parts Catalog isn’t something you grab for casual reading. It’s what you pull when you’re staring at a transmission housing split open and you need to know which bearing goes where and what the part number is so you can order it before the shop closes. This factory document runs 289 pages of exploded diagrams and part listings, covering every variant of these tractors. If you’ve ever been stuck with a wrong part because you trusted an aftermarket cross-reference, you know exactly why this matters.

Model Type Variations You Can’t Ignore

This catalog doesn’t treat all TM215 and TM217 tractors the same. On the first page, it lists the model type breakdown: TM215 comes in FE4, ME3, FMUE4 versions. TM217 appears as FE1, FE4, FMUE4, FUE4. The letters mean something: F = 4WD, U = power steering, M = mid PTO. Area codes E1 (Asia) and E4 (Europe and Oceania). If you order a part without cross-referencing your tractor’s type code, you’ll get the wrong filter, wrong seal, wrong everything. This catalog shows which parts apply to which variant in the table columns.

Parts Table Columns: What Each Symbol Means

Turn to page 2 and you see a table with columns for KEY, PART CODE, DESCRIPTION, QTY, TYPE OF MODEL, S, R, REMARKS. The key number in the illustration corresponds to the part. QTY shows how many per unit – sometimes ‘M’ for meters if it’s a hose, ‘l’ for liters, ‘AR’ for as required. The S and R columns indicate standard part or replacement part. Pay attention to the Remarks column: it might list a figure number for set parts. This is how you avoid ordering a part that doesn’t fit your build.

Order the exact factory part.

Interchangeability Codes – When Old Parts Fit New

Page 3 explains the ITC (interchangeability) codes. Three possibilities: OLD → NEW (new part replaces old), OLD → NEW (old part can replace new), OLD ↔ NEW (not interchangeable). If you’re working with an older TM217 and want to use a newer replacement part, check this column first. It will save you the headache of a bolt that almost fits but strips the threads.

What’s Inside the Iseki TM215, TM217 Parts Catalog?

The bulk of the catalog is figure-based illustration pages. Each figure shows an assembly (e.g., engine, transmission, steering) with callout numbers. Below the illustration, a table lists every part code, description, quantity, and the specific model types it applies to. You also get color codes for painted parts on page 4 – Crystal Blue and Sunset Gray are standard, with code numbers for spray cans, 4K drums, 16K drums. If you’re restoring a tractor, you need those paint codes.

Why OEM Documentation Beats Third-Party Parts Lists

I’ve seen DIYers pull part numbers from forums or generic catalogs. They end up with the wrong O-ring or a filter that’s too short. This catalog is printed by Iseki – not scanned from a missing manual or recreated by a third party. Every part code starts with a letter: ‘V’ and ‘W’ designate standard market parts (nuts, bolts, seals). The rest are Iseki-specific. When you order using the exact part code from this catalog, the parts desk can source it without ambiguity. That’s the difference between a one-day job and a two-week wait. If you’ve ever had your tractor down because you guessed at a part number, you know the cost of downtime. A wrong hydraulic filter can mean aeration, cavitation, and a pump failure that costs more than this catalog. The exploded diagrams show where each seal and gasket goes, so you can spot if a part is missing from the assembly. The ‘S’ and ‘R’ columns tell you if the part is standard equipment or a replacement option. All of this information is organized by figure number, so you flip to the transmission section and see the exact breakdown for your TM217-FUE4. There’s no ambiguity, no cross-referencing against a Chinese knockoff. This is the original Iseki data.

Does this catalog include service procedures or just part numbers?

Parts only. This is a parts catalog, not a service manual. It shows exploded diagrams and part numbers for ordering. For repair steps, you need the factory service manual.

How do I identify which model variant my tractor is?

Check the tractor’s serial number plate. The model designation is usually stamped on a plate near the steering column or under the hood. Match it against the type codes on page 1 of this catalog (e.g., TM215-FE4, TM217-FUE4). The area code (E1 or E4) matters for regional differences in emissions and electrical components. If you can’t find the plate, contact an Iseki dealer with the serial number. Once you know your type, use the Type of Model column in each parts table to verify fitment. This catalog lists every variant, so there’s no guesswork – just look for the bullet symbol under your model’s column.

Can I use this catalog to order parts online?

Absolutely. Copy the part code from the Parts Catalogue and enter it into your preferred parts supplier’s search. Because it’s an OEM number, most dealers will recognize it.

What does the ‘ITC’ column mean?

Interchangeability. It tells you if the new part can replace the old one and vice versa. Crucial when sourcing discontinued parts.

The difference between a correct repair and a parts-fishing expedition is having the right documentation. This catalog is that documentation. ISEKI SSM48 Parts Catalogue Directions For Use, ISEKI SSM48-M Parts Catalogue Directions for Use, and Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown cover other Iseki models if you work on a fleet. For background on why OEM standards matter, see Automotive Industry Overview and Automotive Industry Overview. Access the Factory Manual now and start ordering parts that fit.
