Iseki TG5470 2006 Parts Catalog

You need a part for the TG5470, and the dealer’s on backorder for a week. The aftermarket websites show three different numbers and none of them match the bolt in your hand. That’s where the Iseki TG5470 2006 Parts Catalog comes in. This is the original factory print – 465 pages of part codes, torque specs, and model cross-references that Iseki engineers wrote. I’ve been turning wrenches for 28 years, and I’ve learned the hard way that aftermarket catalogs get you fired. This one doesn’t.

Directions for Use: How This Manual Is Organized

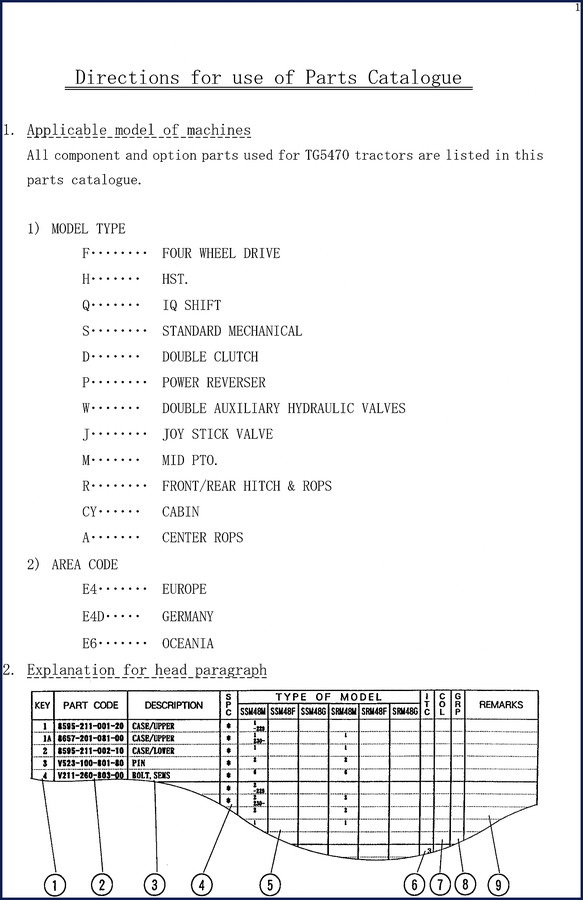

The manual opens with a clear “Directions for use of Parts Catalogue” section that explains exactly what models and options are covered. You get a list of model type codes – F for four‑wheel drive, H for HST, Q for IQ Shift, S for standard mechanical, D for double clutch, P for power reverser, W for double auxiliary hydraulic valves, J for joy stick valve, M for mid PTO, R for front/rear hitch & ROPS, CY for cabin, A for center ROPS. Each code tells you which variants the part fits. That table on page 1? It saves you from ordering a washer that doesn’t belong to your gearbox.

Model Type Codes – What You Need to Know Before Ordering

Forty-six years in this trade. You learn to spot a fake.

If you’re working on a TG5470 with a power reverser (code P) and dual auxiliary hydraulics (code W), you need to know that some parts – like the upper case (part code B588-311-091-20) – may not fit the standard mechanical transmission. The catalog lists each part against the applicable model types using a matrix: a bullet (•) means it fits, blank means it doesn’t. No guesswork. You match your tractor’s model code from the serial plate, then scan the columns. I’ve seen techs skip this step and bolt a transmission case that was never designed for the torque load. That’s a 4‑hour job turned into a 3‑day headache. Don’t be that guy.

Area Codes and Parts Availability

The catalog also includes area codes – E4 for Europe, E4D for Germany, E6 for Oceania. Some parts are region‑specific due to emissions, hydraulics, or attachment mounts. If you’re in North America, you may need to check with your local Iseki distributor about compatibility. The manual itself is global, but the parts listing is honest about what was sold where. That’s the kind of detail you only get from an OEM source – not from a re‑typed PDF that pads the page count.

Reading the Parts Table – Part Codes, Descriptions, and Torque

Every parts catalog lists numbers. This one includes torque specs right in the table – see the entry for bolt V211-380-003-00: “BOLT, 30NM”. That’s not a suggestion; it’s the factory tightening spec. When you’re assembling the upper case (B588-311-091-20) to the transmission, 30 Nm (about 22 ft‑lb) is what Iseki engineers designed the joint to handle. Aftermarket catalogs often omit torque values or round them to a generic number. This manual doesn’t. You also get the part code prefix breakdown – B588, V511, etc. – which tells you the assembly group. Cross‑referencing these codes with the ISEKI TG5330/TG5390/TG5470 SSM72 Operator’s Manual gives you the full service picture.

Why OEM Documentation Beats Aftermarket Print

I’ve got a stack of aftermarket “universal” parts catalogs in the shop corner. They all claim to cover Iseki tractors, but the part numbers don’t match the factory stampings. The TG5470 uses a unique casting pattern on the case halves – you can’t swap in a TG5390 case without checking the length difference. The ISEKI TG5470 Tractor Parts Catalogue Nov 2005 is an earlier edition; this 2006 version adds the HST model and the Q transmission codes. If you’re ordering parts for a late‑model TG5470, you need the current catalog. The aftermarket copies I’ve seen skip the area code column entirely. That’s a rookie mistake that costs you shipping fees and downtime. For reference on how the automotive industry defines professional repair standards, see Automotive Industry Overview.

Who Needs This Parts Catalog?

If you own a TG5470 and do any of your own maintenance – oil filter, hydraulic hose, PTO shaft – you need this. The parts listing includes every component from the engine block down to the washer (V511-311-051-00) and pin (V523-100-001-00). You don’t have to disassemble the tractor to find the part number; you can look it up by assembly group. For a shop that services multiple Iseki models, the Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown is a good companion. This manual is also essential for anyone restoring a TG5470 – the 2006 edition captures the final production run specs before the model changes.

Does this catalog include service repair procedures, or just parts numbers?

Parts only. This is a parts catalog – it lists every component, its part code, and applicable model variants. You’ll find torque specs listed on individual fasteners (like the 30 Nm bolt), but you won’t get step‑by‑step removal instructions. For that, pair it with the operator’s manual or a factory service manual.

How do I confirm my model code from the tractor?

Look at the serial plate on the left side of the transmission housing. It lists the model type code (e.g., TG5470FWDQ for four‑wheel drive, IQ Shift). Match that to the codes in the catalog’s header (page 1). If you can’t find the plate, check under the right‑hand floor mat – sometimes they migrate.

Forty years from now, this catalog will still be accurate because it came from the same people who built the machine. Aftermarket reprints lose resolution, mis‑align columns, and drop footnotes. The original Iseki TG5470 Parts Catalog is the only source I trust when I’m ordering a $3 washer that holds a $900 transmission together. Access the Factory Manual from AutoRepairManuals and get the part numbers that fit the first time.
