Iseki TG5395, 5475 Parts Catalog

You’ve got a tractor that won’t move because some bracket cracked, or a hydraulic line blew, and your local dealer tells you the part is “discontinued with no cross-reference.” That’s when you need Iseki TG5395, 5475 Parts Catalog – the factory document that lists every nut, seal, and casting these machines left the line with. I’ve been wrenching for 28 years, and I can tell you: aftermarket parts catalogs are garbage for serial-number-specific breakdowns. This one is the real thing.

Exploded-View Diagrams and Part Number Cross-References

Each page in this 560-page PDF gives you a numbered diagram – KEY column, part code, description, quantity per machine, and which model variant uses it. You see the actual shape of the part next to its number. No guessing whether that snap ring is an internal or external type. The OCR excerpt shows the exact format: for example, a CASE/UPPER assembly uses part code 8595-211-001-20 for one machine and 8657-201-081-00 for another. You need to know which one fits your serial number range. That’s in the “SPC” column and the lower row of the quantity cell. This catalog tells you “up to serial 229” or “230 and after.” Try finding that on a third-party website. You won’t.

The part numbers starting with V or W are standard market parts – bolts, pins, sensors. Those you can source anywhere, but the Iseki-specific castings and housings? Those numbers only show up here. The diagrams also indicate left-hand vs right-hand orientation based on the direction of travel. That matters when you’re ordering a steering cylinder or a fender brace.

How Do I Read the Model Type and Area Code?

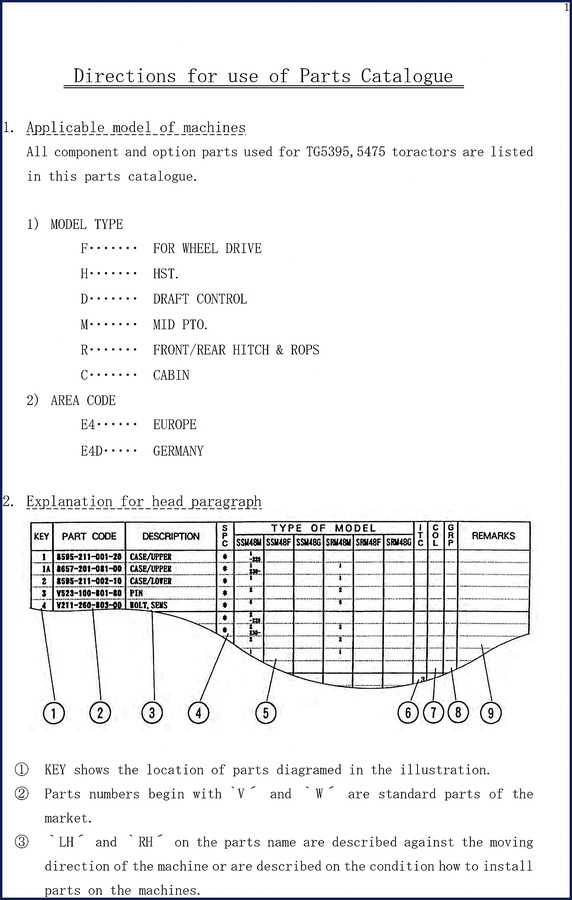

Every tractor – TG5395 or 5475 – gets a model code string like “F H D M R C” followed by an area code like E4 (Europe) or E4D (Germany). The catalog breaks down which options (Hydrostatic Transmission, Draft Control, Mid PTO, ROPS, Cabin) correspond to which suffix letters. You match your tractor’s serial plate to the code and then look up the parts for exactly that configuration. If you skip this step, you’ll order a part that physically won’t bolt on. The manual explains it in two paragraphs on page 1. Read them. I’ve seen too many DIY guys blow a weekend because they ignored the model code.

560 Pages of Factory Data

That page count is not padded with filler. Every page is an exploded view with a table of part codes, quantities, interchangeability codes (ITC column), and color codes for painted parts. The ITC column tells you if an old part can replace a new one, or vice versa, or if they are not interchangeable at all. Stamped metal parts often get superseded, and this catalog tells you which supersession direction is allowed. Without that, you might install a part that locks up the driveline because the bearing bore changed. Yes, that happens.

The color code table on page 3 lists Iseki’s factory paint colors – like “1300-959-004-00 5I SUNSET GRAY.” If you’re restoring a machine or matching a touch-up, you get the exact Iseki code, not a “close enough” rattle can.

TG5395 and 5475 Parts Catalog: Avoid Guesswork with Factory Diagrams

Look, you can’t torque a bracket if you ordered the wrong clevis pin. This catalog eliminates that risk. Whether you’re a home garage mechanic trying to fix a 5475 hydrostatic leak or a small farm owner keeping a TG5395 running through harvest, the difference between getting the right part on the first order and wasting two weeks waiting for a return is this PDF. The ISEKI Tractors TG5395 TG5475 Operation Manual covers daily operation and maintenance – but for parts identification, this catalog is the only source. Pair it with the Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown if you have the smaller frame model. And if you run an older 2003 TXG23 series, check the Iseki TXG23 TXG23FH TXG23TH TXG23E 2003 Parts Catalog.

Interchangeability Codes: What They Mean for Your Repair

The ITC column uses three symbols: 1 means the old part can be replaced by the new part (bidirectional but forward-only allowed), 2 means the old part can replace the new part (backward compatibility), and 3 means they are not interchangeable. The OCR excerpt shows this clearly. I’ve seen people buy a “cheaper” used part that had a 3 code and then wonder why the hydraulic line routing didn’t line up. That’s a tow bill you don’t want. This catalog saves you that. The GRP column further groups parts that can be replaced as a set – for example, replacing an entire brake assembly rather than individual components. That’s useful when you’re rebuilding and the separate pieces are obsolete.

For general context on why factory documentation matters in the automotive and equipment world, read the Automotive Industry Overview. And if you want a broader perspective on repair standards, check Automotive Industry Overview.

FAQ – Iseki TG5395, 5475 Parts Catalog

Is this a printed book or a digital access?

Digital PDF. You get the full 560-page factory file after purchase. No waiting on shipping.

Does this manual include torque specs or repair procedures?

It is a parts catalog – it lists every part with its part number, quantity, and diagram. It does not contain step-by-step disassembly or torque values. You need the service repair manual for that. Use this catalog to order the correct parts before you start the job.

Which serial number ranges are covered?

The catalog covers TG5395 and 5475 models. It breaks down serial numbers (e.g., up to 229, 230 and after) in the quantity row. You must match your tractor’s serial number to the correct row. Page 2 explains the letter codes for serial breaks.

Can I use this for other Iseki models like the TS3110?

No. This catalog is model-specific. We carry separate parts catalogs for other Iseki models – see the related links above. Mixing part numbers across model families will cost you time and money.

Access the Factory Manual – get the exact parts breakdown for your Iseki TG5395 or 5475 tractor. No lies, no aftermarket reprints. Just the official PDF from the same source dealers used. Stop ordering the wrong bracket.
