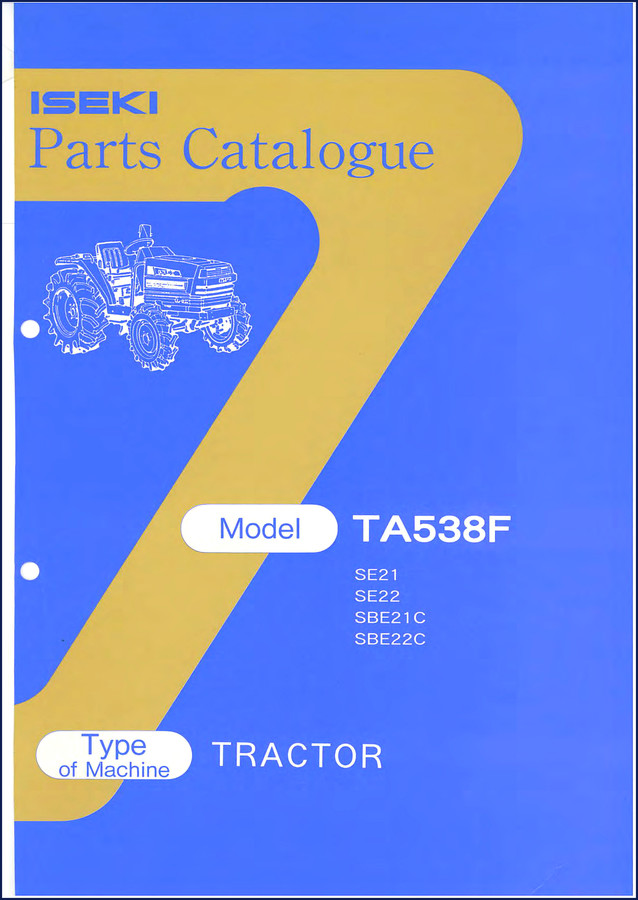

Iseki TA538F, SE21, SE22, SBE21C, SBE22C Parts Catalog – Factory OEM

If you’ve ever ordered a part for an Iseki tractor and got the wrong one because the aftermarket catalog blew the serial number cutoff, you know the drill. Time wasted. Tractor down. Money burned. That’s why a Iseki TA538F, SE21, SE22, SBE21C, SBE22C Parts Catalog from the factory is the only thing that belongs on your bench. This isn’t a reprint or a third-party compilation. It’s the original 233-page document used by dealers to order every nut, seal, and hydraulic line. I’ve been wrenching for 28 years and I still reach for OEM parts books before I touch a wrench on any tractor – especially when the serial number determines whether the clutch fork changed in mid-production. That’s the kind of detail that keeps your machine running and your wallet from bleeding.

Serial Number Cutoff: Why Page 2 Matters

This catalog covers tractors from serial number 10145 onward. If you’ve got a TA538F built before that number, you need a different parts book – catalog number 1642-098-100-00. The first page of the manual lays this out flat. Page 2 explains that the SBE21C and SBE22C variants started at serial 10145 as well. Miss that detail and you’ll be staring at parts that don’t fit. The factory provides a clear serial number table per model: SE21, SE22, SBE21C, SBE22C. Check your tractor’s serial plate before you even open the PDF. Saves you a return shipping charge.

What the Parts Catalog Actually Covers

The book covers all components and options for the TA538F tractor line. That includes every variation: hydrostatic reverse (S), hydrostatic reverse with cabin (SB), low lug tires for Germany (E21), turf tires for Germany (E22), low lug for Switzerland (E21C), and turf for Switzerland (E22C). Engines are the E3AD1-HT. You won’t find separate sections for each variant thrown together – the part numbers are marked with symbols. A star (*) means standard equipment. A “T” means optional – can be installed as an add-on. An “R” means you can retrofit the new part to replace older equipment. That distinction saves you from buying an optional bracket when a standard one does the job.

Interchangeability Codes: OLD-NEW vs OLD-<-NEW

Look at the ITC column. An arrow from old to new means the new part supersedes the old – you can install the new one on an older tractor. An arrow pointing the other way (old <- new) means the two parts cannot be swapped. That is critical when the dealer tells you “this part replaces the old one.” Check the catalog. I’ve seen guys install a new hydraulic pump that didn’t mate with the old bracket because they didn’t verify interchangeability. This catalog gives you the code. Use it.

Color Codes and Paint Part Numbers

Page 4 lists the OEM colors: Cosmo Blue (color code 4F) and Flash White (6F). For each color, the catalog gives you the spray can, 4K drum, and 16K drum part numbers. If you need to respray a fender or hood, you can order the exact factory paint – not a rattle can that fades after a season. The part numbers are real: 1300-952-001-10 for Cosmo Blue spray. That’s the kind of specification you won’t find in a generic parts list.

Audience: Not Just for Dealerships

Home garage enthusiasts often buy parts based on a picture. Then the hydraulic hose doesn’t reach because the length changed at serial number 10200. This catalog uses a KEY diagram and part numbers starting with ‘V’ or ‘W’ for standard market parts. Quantities are listed per unit (QTY). Items measured by meter get an ‘M’, by liter get an ‘l’, and adjustable parts get an ‘AR’. If you’re rebuilding a TA538F hydrostatic drive, you need these numbers to match the factory assembly. Don’t guess – use the book.

Source Authenticity: Factory OEM, Not a Reprint

This is a genuine Iseki factory PDF. Not a photocopy from a dealer binder, not a scanned aftermarket version. The page headers, part numbering conventions, and color codes are original. I’ve been burned by third-party manuals that mixed up left and right because the illustrator mirrored a diagram. This one uses LH/RH based on the machine’s moving direction. That matters when you order a steering arm. Iseki TS3110 Parts Catalog – Factory OEM Parts Breakdown covers a different chassis, but the same factory document structure applies. For a smaller Iseki model, check the Iseki TXG23 TXG23FH TXG23TH TXG23E 2003 Parts Catalog or the Iseki TXG23 Parts Catalog – Factory OEM Parts Breakdown. The automotive industry demands precision – Automotive Industry Overview is one place to start understanding why factory specs matter. Automotive Industry Overview also touches on standardization, but your tractor doesn’t care about theory – it cares about the right part number.

3 Common Questions About This Parts Catalog

Does this catalog cover tractors before serial 10145?

No. Use catalog 1642-098-100-00 for earlier units.

What do the symbols ‘*’, ‘T’, and ‘R’ mean?

The asterisk (*) marks standard parts that come on every machine of that type. ‘T’ indicates optional parts that can be installed but are not factory standard – you need to order them separately. ‘R’ means the part is a replacement that can be used in place of the originally equipped part, but check the ITC code to see if the swap is allowed. For example, if you have a TA538F SBE21C and want to switch to a different tire tread, the ‘R’ symbol tells you the part is applicable. But you still need to verify interchangeability column. Ignoring that will get you a fender that doesn’t fit the mount brackets.

Are paint colors specified with part numbers?

Yes. Page 4 lists Cosmo Blue (4F) and Flash White (6F) with spray, 4K drum, and 16K drum part numbers. You can order exact factory paint.

Can I use a generic aftermarket parts catalog instead?

Not if you want the right part the first time. Aftermarket catalogs often omit serial number splits and interchange codes. Stick with OEM.

If you own a TA538F, SE21, SE22, SBE21C, or SBE22C, this 233-page parts catalog is your blueprint for ordering the correct parts every time. No wasted trips to the dealer. No returns. No guessing. Access the Factory Manual now and keep your tractor running with genuine factory data.
