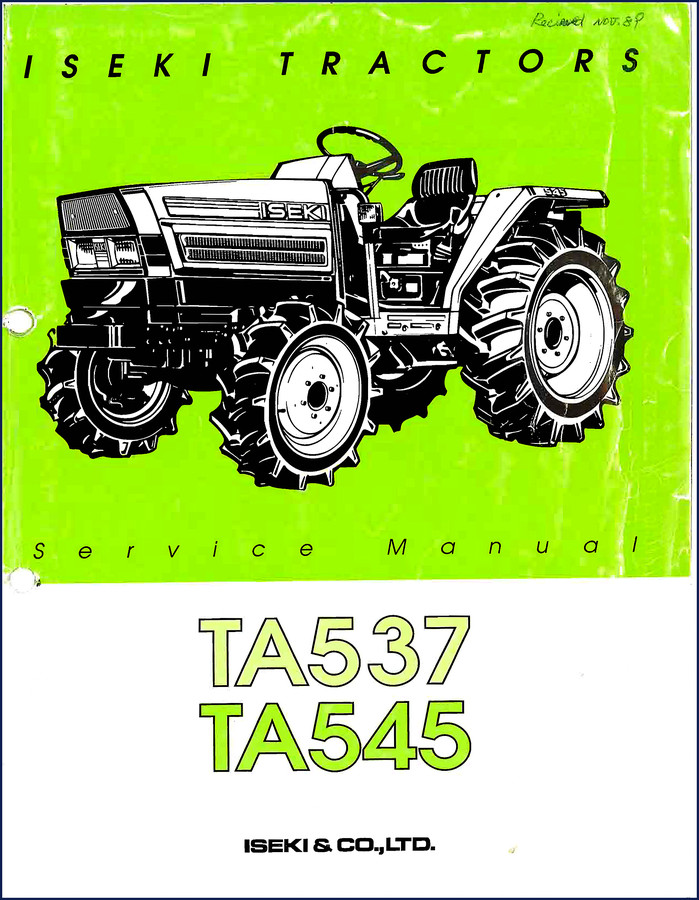

Iseki TA537, TA545 1989 Service Manual

You’ve been burned by aftermarket manuals before – torque specs that don’t match, wiring diagrams for a different model year. That’s not a problem with the Iseki TA537, TA545 1989 Service Manual. This is the factory-issued document, 306 pages, straight from Iseki’s engineering department. It tells you the exact fill capacities, the precise gear train layout, and the torque values that keep that engine sealed. I’ve torqued enough head bolts to know that guessing costs you gaskets and time. This manual eliminates the guesswork.

Specifications and Gear Train Diagrams

Section 2 starts on page 1-5 with the full specs for both the TA537 and TA545. Engine displacement, fuel system, hydraulic pump flow – it’s all there. Section 3 lays out the gear train diagrams on pages 1-8 and 1-9. For a mechanic, these diagrams are gold. They give you the exact layout of the Manual Transmission and driveline components. Without them, a gear noise diagnosis turns into a tear-down gamble.

Model Identification: Name Plate and Serial Numbers

Page I-5 shows you where to find the engine serial number and model marking. If you’re working on a tractor that’s had parts swapped over the years, you need to confirm what you actually have before ordering a clutch or a PTO shaft. The manual walks you through the model name plate (page 1-4) and chassis production number. It’s the kind of detail that prevents you from bolting on the wrong part.

Precautions and Maintenance Chart

Section 4 covers the precautions for operation and the maintenance chart that goes up to page I-14. The filling diagram and capacity table on page 1-12 list every fluid capacity in the correct units. If you overfill the hydraulic reservoir, you’ll cause aeration and pump noise. The manual tells you the right fill point. Skip that step and you’re chasing a hydraulic leak for hours. Workshop tip: always refer to the maintenance chart before you start – it saves a second trip to get the correct filter.

What the Iseki TA537, TA545 1989 Service Manual Covers

This isn’t a thin owner’s booklet. The 306 pages cover the full powertrain: engine overhaul procedures, cooling system, fuel injection timing, steering, brakes, and the rear axle. The engine section includes cylinder head bolt torque sequences and valve clearance specifications. You’ll also find the wiring diagrams for the electrical system, which is where most aftermarket manuals fall apart. OEM wiring schematics show the actual wire colors and connector pinouts. One misread wire can fry a $400 ECU – this manual keeps you away from that mistake.

Why Factory OEM Manuals Beat Aftermarket Reprints

I’ve seen third-party manuals that copy the diagrams but leave out critical notes like “do not reuse the sealing washer” or “apply threadlocker to bolts B and C only.” The Iseki factory print includes those warnings in the original Japanese manufacturer’s language (translated to English). The torque values are verified against production line specs, not guessed from a bolt chart. When a bearing clearance calls for 0.0015 to 0.0025 inches, you need that precision. Aftermarket reprints often round numbers – and that rounding costs you a bearing.

If you need manuals for other Iseki models, check out the Iseki TK546F, TA545 Service Manual – OEM Factory Specs or the Iseki TM215F TM217F TM223FH TM223F Service Manual – OEM Specs. For the TM series, the Iseki TM217F, TM223FH, TM213F Service Manual – 42 Pages OEM is also available. And when you’re working on the shift linkage, the Manual Transmission section in this manual gives you the correct adjustment procedure.

A short note: never rely on a photocopy of a photocopy. The scan quality of this file is high – you can read the torque tables without squinting. That matters when you’re under a tractor with grease on your hands.

Frequently Asked Questions

Does this manual cover the engine?

Yes, engine specs and procedures are included.

What torque values are listed?

The manual provides factory torque specifications for all major fasteners including cylinder head bolts, connecting rod nuts, main bearing cap bolts, and flywheel bolts. These are the values Iseki engineers used on the production line – not aftermarket approximations. You’ll find them in the specifications section starting on page 1-5, but note that the manual uses metric units. For example, the cylinder head bolts on the TA537 require a specific tightening sequence and torque angle – not just a single number.

How many pages is the manual?

306 pages.

Is this a reprint or a factory copy?

This is a direct scan of the original Iseki factory service manual, not a reprint or a third-party compilation. The page count, diagrams, and text match the official 1989 release.

Access the Factory Manual – get the exact data Iseki used to build these tractors. No approximations, no missing pages. Add it to your cart now and have it on your screen in minutes.
