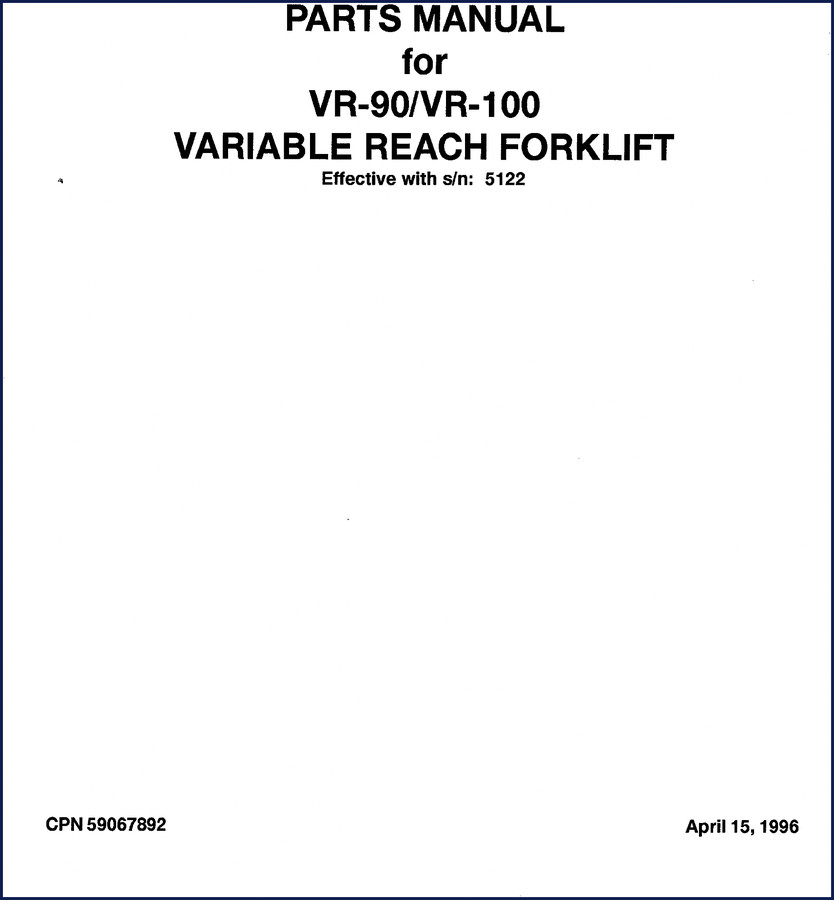

Ingersoll Rand VR-90, VR-100 1996 Parts Catalog

What burns my tail is watching a guy tear down a VR-90 transmission because he guessed on the seal part number. Three hours of labor, wrong part, machine down another day. This 1996 Parts Catalog from Ingersoll Rand puts a stop to that. 155 pages of factory-issued part numbers, exploded views, and word-indexed searches. If you work on variable-reach forklifts, you need this on the bench.

Engine and Transmission: Finding the Right Part Numbers

The engine section lists every component from the air cleaner element (comm. number 59438804 on page 56) to the throttle pedal bracket assembly. The transmission section breaks down the auxiliary pump drive, seals, and gears. You get the OEM part number, quantity per assembly, and any notes. No guesswork—order the exact Ingersoll Rand parts the first time.

Brake System and Electrical: Specs That Keep You Safe

Brake accumulator, brake cylinder, alarm, alternator—all listed with comm. numbers. The electrical section covers the alternator, alarm, and other components. When you need to replace a brake part, you pull the manual, cross-reference the word index, and order the factory item. No aftermarket knockoffs that don’t fit. The welding and fabrication specs are not in this catalog, but the parts diagrams are crystal clear.

Using the Word Index and Part Numbers

Flip to the back of the book. The word index is alphabetical—look up “Air Cleaner Element” and it sends you to page 56. Or search by comm. number using the numerical index. The manual explains this on page 2. It’s dead simple. You don’t need to guess the functional group; the index does the work. That’s how you avoid ordering the wrong boom cylinder or tilt cylinder.

Hydraulics and Axle: 155 Pages of Factory Data

The hydraulics section (Section 1) covers control valve sections, cylinders, hoses. The axle section (Section 4) includes axle mounting and cylinder part numbers. This is not a repair manual—it’s a parts catalog. But if you’re rebuilding, you need the OEM part numbers to order seals, bearings, and hydraulic components. Trust me, the aftermarket catalogs miss details. Stick with genuine Ingersoll Rand.

Why Factory Parts Catalogs Beat Aftermarket

Third-party parts databases often merge models or skip revisions. This manual is dated April 15, 1996, effective with serial number 5122. It covers both VR-90 and VR-100. You get the correct comm. numbers for your specific unit. The table of contents lists 11 functional groups: Hydraulics, Boom and Carriages, Engine, Axle, Hoods/Covers/Seat, Transmission, Electrical, Brake System, Frame, Miscellaneous, Optional Equipment. That’s how a factory catalog should be organized.

7 Systems Covered – What You Can Order

Seven major systems are broken down: Hydraulics, Engine, Axle, Transmission, Electrical, Brake, Frame. Plus optional equipment and miscellaneous parts. Each section has an even-page illustration and odd-page parts list. Item numbers cross-reference to comm. numbers. You can order parts for the crowd cylinder, side-tilt carriage, steering cylinder, decal installation, and more.

Does this manual include torque specs or repair procedures?

No. This is a parts catalog only. For torque specs and repair steps, you need the corresponding service manual. The parts catalog gives you the OEM part numbers and quantities.

Can I use this for the VR-90 only?

Yes. The manual covers both VR-90 and VR-100 models. All sections apply to both unless noted.

Is this a digital access or a physical book?

Digital PDF format. 155 pages, indexed, printable. You get the exact file shown.

What if I can’t find a part number in the word index?

The word index and numerical index cover all listed components. If you have a comm. number from an existing part, use the numerical index. If not, start with the word index. For parts not listed here, contact an Ingersoll Rand dealer.

Every hour wasted hunting down a part number costs you billable time. I’ve torqued more bolts than most and know the value of having the right comm. number on hand. Get the right parts the first time. Ingersoll Rand T-708H Tow Tractor Parts Manual 2000 and Ingersoll-Rand RT-706H/708H Rough Terrain Forklift Parts Manual are also available if you need those models. For compactors, check the Ingersoll Rand SD 70, 77TF Vibratory Compactors Parts Manual. For broader context on equipment reliability, read this Automotive Industry Overview and Automotive Industry Overview.

Access the Factory Manual and stop guessing on part numbers. Your shop will run smoother, and you’ll keep that VR-100 moving material.
