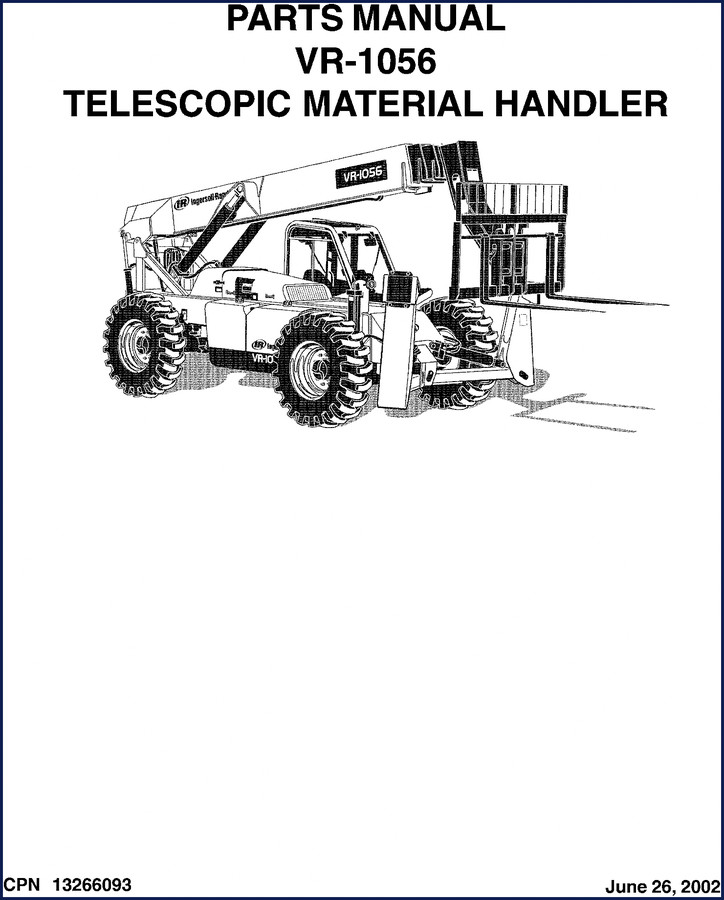

Ingersoll Rand VR-1056 2002 Parts Catalog

You are pulling a telehandler apart and the part you need has a flaking label. Maybe the hydraulics are weeping, maybe the boom won’t lift. Without the factory part number, you are guessing. I have seen that game before—guys order three different air cleaners because the aftermarket book had no cross-reference. This Ingersoll Rand VR-1056 2002 Parts Catalog stops that waste. 406 pages of OEM illustrations, Comm. numbers, and index systems that get you the right bolt, filter, or hose the first time. No aftermarket interpretation. No reprints. Just the same binder that sat in the dealer parts counter.

406 Pages of Factory Part Numbers

Open this book and you will see exploded views on even-numbered pages and parts lists on odd-numbered pages. Every component gets an item number, a Comm. number (the only number that buys Genuine Ingersoll Rand parts), and a quantity. The manual covers twelve functional groups from Main Frame (Section A) to Publications and Training (Section P). Each group is broken into sections—for example, Section C covers Engine/Transmission with subsections like C.1.2 Engine/Transmission Installation and C.3.2 Air Cleaner Installation. You want the throttle assembly? Turn to C.2.2. The page references are printed right in the Table of Contents on page 3.

Section C – Engine/Transmission: What You Get

Section C is eleven pages of engine and transmission breakdowns. You will find the air cleaner installation parts list on page C.3.3, which matches the illustration on C.3.2. The manual lists the primary air cleaner filter element (Comm. 54524416) and the secondary element. If you need the radiator/oil cooler installation, C.5.2 shows the cooler and lines. The transmission cooling lines hit C.6.2. These are factory drawings, not aftermarket sketches—the bolt callouts match what Ingersoll Rand installed at the factory. For reference on how to use the index to find Engine parts, see the OCR excerpt from page 3.

Section E – Electrical: Not Just Wiring Diagrams

Section E covers the electrical system. The parts list includes the alternator (listed in the Word Index as “Alternator” on E.1.3), backup alarm (E.3.3), and other electrical components. If you are chasing a no-start or a dead gauge, the manual lists every relay, connector, and harness part number. The Word Index on page 2 shows how to find items alphabetically—look up “Alarm, Backup” and it points to E.3.3. This saves you flipping through every page looking for a switch.

Why You Need the Word Index and Numerical Index

The book has two back-of-the-book indexes: a Word Index and a Numerical Index. The Word Index lists every part description in alphabetical order—”Air Cleaner Primary Filter Element” points to C.3.3. The Numerical Index lists every Comm. number in numeric sequence. If you have a part in hand with a legible Comm. number, the Numerical Index tells you the page. Use these indexes before you call a dealer. I have seen technicians blow two billable hours searching through parts manuals that lacked an index. This one has both. The Word Index alone saves you time every job.

Get the Right Parts the First Time

Ordering the wrong hose or filter costs you downtime and return shipping. This parts catalog gives you the Comm. number, the illustration, and the quantity. You can hand the page to your parts supplier and say “This is what I need.” The manual also includes Section M – Maintenance Interval Kits, which lists pre-packaged kits for routine service. If you maintain a fleet of VR-1056 machines, having the official factory parts catalog on your tablet or workbench means every mechanic looks at the same numbers. Pair it with the Ingersoll Rand T-708H Tow Tractor Parts Manual 2000 for other IR equipment. The Ingersoll-Rand RT-706H/708H Rough Terrain Forklift Parts Manual covers similar chassis components. For vibratory compactors, check the Ingersoll Rand SD 70, 77TF Vibratory Compactors Parts Manual.

Understanding how manufacturers structure their documentation helps you read any OEM manual faster. See the Automotive Industry Overview for context on standard parts numbering. That same logic applies to construction equipment. For more on OEM manual best practices, read Automotive Industry Overview.

FAQ

Does this parts catalog include repair procedures?

No. This is a parts manual, not a service manual. It lists part numbers and illustrations.

How do I find a part if I don’t have the Comm. number?

Use the Word Index at the back of the book. Look up the part description (e.g., “Hydraulic Pump”) and the index will give you the page number. If you only know the machine assembly area, use the Table of Contents to find the functional group (e.g., Section H – Hydraulics) and then scan the parts list pages. Each parts list page has an illustration on the facing page so you can visually confirm the part. The Word Index is alphabetical and cross-references multiple descriptions—for example, “Filter Element, Primary Air Cleaner” and “Primary Filter Element, Air Cleaner” both point to the same page. This system is designed to get you to the correct part number even if you don’t have the Comm. number.

Access the Factory Manual and put the OEM data on your bench today. No guessing, no cross-referencing aftermarket catalogs. Just the original 2002 Ingersoll Rand parts catalog with 406 pages of factory illustrations and Comm. numbers.
