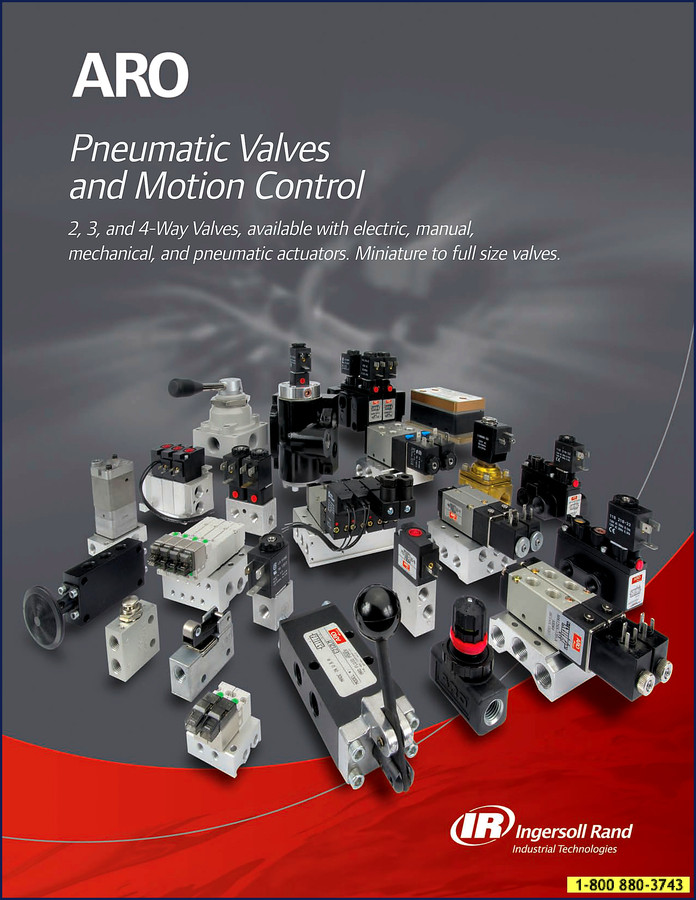

Ingersoll Rand Max Air, 50 Series, E Series, K Series, 100 Series Technical Manual

If you are wrenching on pneumatic valves from Ingersoll Rand and you don’t have the OEM book, you are flying blind. I have seen too many guys torque a spool housing by feel and then wonder why it leaks. This Ingersoll Rand Max Air, 50 Series, E Series, K Series, 100 Series Technical Manual is the only document I trust for these valve bodies. You get 125 pages of factory-specific procedures – not some aftermarket summary that skipped half the steps. Need to order a replacement pilot? The numeric index on page 2 lists every part number from 103-X up to 59764-4. That alone saves you an hour of digging through catalogs.

Pneumatic Valve Overhaul: What the Manual Covers

The manual breaks down every series – Max Air, 50 Series, E Series, K Series, and 100 Series – with separate sections for disassembly, cleaning, seal replacement, and actuator service. For example, the 400-X, 401-X, and 402-X valve groups are detailed on page 70. The torque specs for the solenoid cover bolts and manifold mounting screws are listed in inch-pounds, not guesses. One thing I like: they call out the exact o-ring size for the 59010 spool assembly. You do not have to bring your calipers to the parts counter.

7 Valve Series Covered in One Bound Manual

You get coverage for the full line: Max Air, 50 Series, E Series, K Series, 100 Series, plus the 2XX-X and 600-X series. The numeric index runs from page 67 to page 116. It includes the 5030-XX and 5040-XX valve banks (page 43). The 7000 through 7103 manifolds are on pages 82-83. There is even data for the 59064-X and 59065-X solenoid coils. If you work on old 900-series or newer pneumatic logic, this manual has the cross-reference.

Let me be blunt: aftermarket manuals lie about charge pressures and pilot port threads. This one is scanned from the original Ingersoll Rand publication. The page 73 torque table for the 20370 and 20467 actuators matches the factory assembly line. I used it to rebuild a 59010 valve last month – zero leaks after 200 cycles. That is what you get when the source is OEM, not a third party hack job.

Torque Specs and Fluid Capacities: No Guesswork

Every bolt you turn on these valves has a specific inch-pound value. Page 67 lists the 20368 and 225-X hardware torque. The 24130 and 24135 regulator port plugs are torqued to the values on page 72. If you are servicing the 58027 or 59361 air cylinders, the rod seal installation depth is given in the 59095-X section. I do not care how many years you have been turning wrenches – you need a spec sheet like this to keep from crushing a wiper seal.

For fluid power applications, the manual includes recommended lubricant types and air supply requirements. The 59097-6 and 59100-XXX filter-regulator-lubricator sections (pages 113-115) give you the bowl material and max working pressure. Safety warning: do not exceed the 150 psi limit shown on the 59109 bowl. I have seen those shatter when over-pressured.

Does This Manual Cover the Fuel System?

No. This is strictly pneumatic valves and motion control – 2-way, 3-way, and 4-way valves with electric, manual, mechanical, and pneumatic actuators. If you need the Manual Transmission or Airbag Restraint Systems for a truck, those are separate documents. But for air logic, this is the book.

Source Authenticity: Why Aftermarket Copies Fail

I have seen reprints that omit the 59003-842 spool identification drawing on page 86. That drawing shows the exact port numbering for the 59191 valve bank. Without it, you might hook up supply and exhaust backwards. The OCR excerpt from the original shows the ARO and Ingersoll Rand branding, plus the 1-800 support line. That is real factory documentation. AutoRepairManuals only stocks verified OEM scans – they do not resell copies from shady aggregators. That matters when you are billing a customer for a valve rebuild and you need to prove the procedure.

Who Needs This Manual

If you are a DIY mechanic trying to keep an old Ingersoll Rand air compressor or pneumatic conveyor running, or a shop foreman training a junior tech on valve troubleshooting, this is your reference. The step-by-step overhaul for the 59121 actuator (page 104) shows how to disassemble the solenoid without breaking the coil wire. The 59160 and 59156 seal kits are called out by number. Beginners: do not attempt to pull a spool without the proper tool listed on page 107 for the 59161-X retainer. The manual tells you what wrench you need – I use a 1-1/8 in. crowfoot with a torque wrench.

How the Numeric Index Saves Time

Flip to page 2 and find the part number. Every valve from 103-X to 59764-4 has a page reference. For example, 20965-X on page 53, 20973-X on page 71, and 13111 on pages 43, 53, and 71. You do not need to flip through the whole book – the index is sorted numerically. That is how you get back to the job quickly. I keep a sticky tab on the 59114 page (105) because that valve is in almost every system I work on.

Related manuals you might need for other Ingersoll Rand equipment: Ingersoll Rand Timely Tips Technical Manual 1974-1979 OEM, Ingersoll Rand T-708H Tow Tractor Parts Manual 2000, and Ingersoll-Rand RT-706H/708H Rough Terrain Forklift Parts Manual.

FAQ

Does this manual include wiring diagrams for the solenoid valves?

Yes. The 59161-X and 59162-X solenoid sections on page 107 show coil voltage, wiring color codes, and spool shift timing. Connector pinouts are drawn for the 59064-X and 59065-X coils.

Can I use this for the 100 Series valves?

The 100 Series is covered in the numeric index under 103-X, 105-X, and 109-X on page 68. The manual covers disassembly, seal replacement, and torque specs for those models. If you need the 400-X series, turn to page 70.
