Hyundai R290LC Service Manual – The One That Lives on My Bench

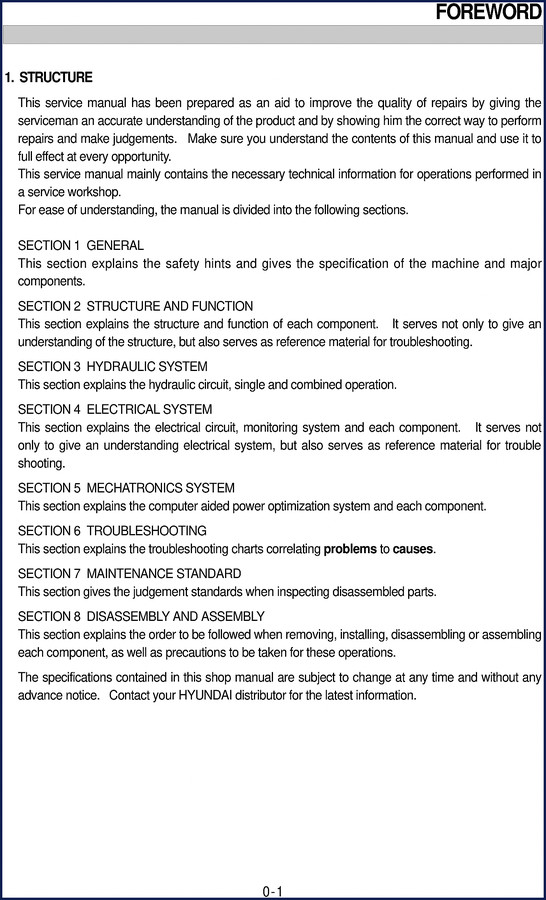

I’ve torqued more head bolts than most people have had hot meals, and I can tell you right now: if you’re working on a Hyundai R290LC without the factory manual, you’re wasting time and risking a comeback. This isn’t some aftermarket reprint that skips the critical footnotes. The Hyundai R290LC Service Manual I’m talking about runs 668 pages of OEM data – the same binder Hyundai sends to their own dealers. Page 1 lays out the foreword and structure, and page 2 explains the symbol system that keeps you from missing a safety note. You don’t get that in a PDF from a third‑party site.

668 Pages of Factory Service Data

Eight sections, each one packed with the kind of detail that makes the difference between a repair that holds and one that comes back on a hook. Section 1 covers safety hints and machine specs – things like fluid capacities and operating pressures in Imperial units. Section 2 walks through every component: pump device, MCV, swing device, travel motor, RCV lever, accelerator pedal, brake pedal, transmission, power control valve, steering valve, and axle. You get exploded views, clearance limits, and the exact order of disassembly. I’ve used Section 8 more than any other – the tightening torque table alone is worth the price of the manual. No more guessing whether that fitting takes 85 ft‑lb or 110 ft‑lb.

Hydraulic Circuit Diagnosis: Section 3 Breakdown

Hydraulics are where most diag time gets eaten up. This manual gives you the full hydraulic circuit – main circuit, pilot circuit, single and combined operation flow paths. When a R290LC loses power on the swing, you pull Section 3 and trace the pilot signal pressures step by step. The diagrams are OEM, not redrawn by some graphic artist who never touched a wrench. Pair this with the troubleshooting charts in Section 6, and you can isolate a sticking relief valve in under an hour instead of swapping parts.

Troubleshooting Without Guessing: Section 6

Section 6 is divided by system: hydraulic and mechanical, electrical, and mechatronics. Each chart lists the symptom on the left and the probable cause on the right – with specific test points and pressure values. I’ve seen guys replace an entire pump assembly because they didn’t check the pilot pressure first. This manual would have saved them ten hours and two thousand dollars. The self‑diagnostic section in the mechatronics chapter (Section 5) also cross‑references with the electrical diagrams, so you can confirm a sensor signal before you condemn the controller.

Mechatronics System: Why You Need the OEM Source

The R290LC uses a computer‑aided power optimization system that adjusts pump output based on engine speed, load, and operator mode selection. Aftermarket manuals often skip the logic tables and the EPPR valve calibration steps. Not this one. Section 5 covers mode selection, auto decel, power boost, engine speed sensing, battery charge monitoring, travel control, arm half flow, hydraulic oil temperature warning, and engine overheat protection. You also get the self‑diagnostic procedure and the Prolix switch description. If the machine goes into limp mode, you can pull the fault code and look up the exact corrective action without flipping through three different sources.

Disassembly and Assembly: Step‑by‑Step Proceedures

Section 8 starts with general precautions – the kind a 28‑year tech learns the hard way. Then it hits tightening torque tables with all the critical fasteners. Pump device, MCV, swing device, travel motor, RCV lever, turning joint, steering valve, transmission, front and rear axles, and all the work equipment – boom, arm, bucket. Each procedure tells you the sequence, the tool needed (like a 300‑ft‑lb torque wrench for the swing motor bolts), and the direction to remove or install. You’ll also find the disassembly order for the transmission, including bearing preload specs and seal installation depths. This section alone saves you from having to reverse‑engineer the assembly when you’re elbow‑deep in hydraulic oil.

Audience Fit: Who Should Use This Manual

If you’re a home‑garage enthusiast with a R290LC on your land, you need this. If you’re a field tech running a 6‑bay shop like mine, you need this. Beginners – yes, the manual assumes you understand basic tool use, but the step‑by‑step structure and the safety hints in Section 1 keep you from making rookie mistakes. For example, the manual tells you to lock the travel motor before removal – something a DIYer might skip. I’ve seen the result. Safety is baked into every page. And because it’s OEM, the wiring diagrams in Section 4 are pin‑to‑pin accurate. No guessing which terminal is the signal wire.

Source Validity: OEM vs. Aftermarket

This is a Hyundai factory release, not a compilation from multiple sources. Every torque value, every clearance spec, every wiring color code came from the same engineers who designed the machine. Aftermarket manuals sometimes copy the first edition and miss the revisions. Hyundai updates their shop manuals; the revision mark system on page 2 tells you if you have the latest version. That matters when you’re ordering parts or setting valve clearances. I keep a printed copy on the bench and a PDF on my tablet for field service – both from this same OEM source. Don’t waste money on a reprint that leaves out the “Revised edition mark” page.

Related Manuals You Might Need

• Hyundai Santa Fe Service Manual 2001-2002 – 353 Pages OEM Factory Specs”>Hyundai Santa Fe Service Manual 2001-2002 – 353 Pages OEM Factory Specs
• Hyundai 75-7 Service Manual – OEM Factory Specs for Excavator Repair”>Hyundai 75-7 Service Manual – OEM Factory Specs for Excavator Repair
• HYUNDAI Robex 36N-7 Service Manual”>HYUNDAI Robex 36N-7 Service Manual

For broader context on heavy equipment repair standards, check the Automotive Industry Overview”>Automotive Industry Overview and the Manual Transmission”>Manual Transmission deep dive – both apply to the drivetrain components in the R290LC.

Does this manual cover the R290LC-3 or R290LC-7?

No. This is specifically for the R290LC base model. Check the model tag on your machine before ordering. The -3 and -7 variants have different electrical and mechatronic systems.

What torque specs are included?

The tightening torque section (part of Disassembly and Assembly) lists values for every major fastener on the pump, swing device, travel motor, MCV, transmission, axles, and work equipment. You get both the initial torque and the final angle where applicable, all in ft‑lb. There’s also a separate table for hydraulic fitting torque. That section alone accounts for about 20 pages of the manual. If you’re rebuilding the pump, you’ll need the specific sequence and torque for the swash plate bolts. It’s all in there.

I’ve been using this manual for three years on a customer’s R290LC. It has never steered me wrong. Access the Factory Manual and put it on your shop tablet. You’ll thank me when the next swing brake problem rolls in.
