Description

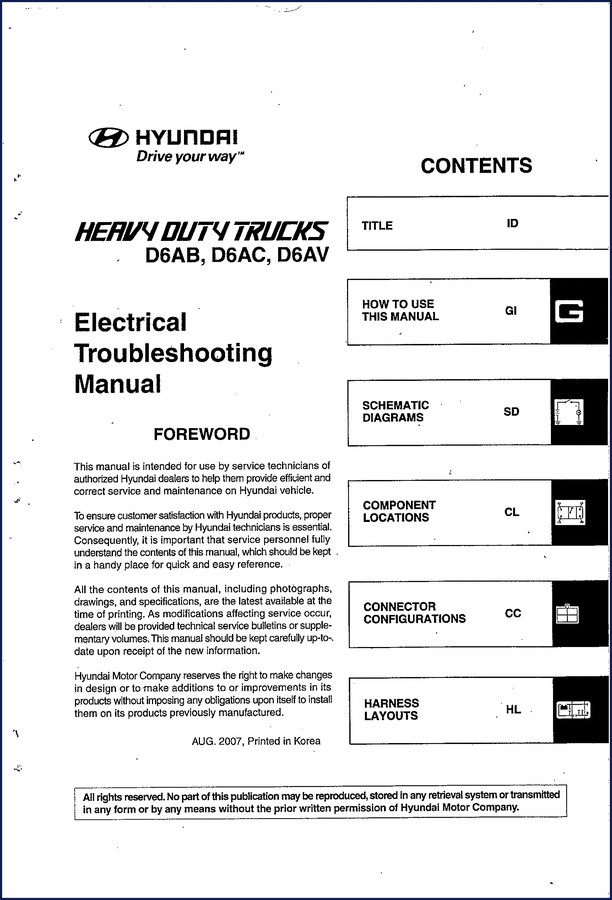

Hyundai D6AB, D6AC, D6AV 2007 Troubleshooting Manual

I’ve been turning wrenches long enough to know that electrical gremlins on a heavy-duty truck are the kind of thing that turns a four-hour job into a two-day headache. You pull out a generic wiring diagram and find out the wire colors don’t match, or the connector pinout is for a different build date. That’s when you start chasing phantom shorts. This Hyundai D6AB, D6AC, D6AV 2007 Troubleshooting Manual is 170 pages of factory-sourced data that cuts that guesswork out. No aftermarket reprints. No third-party interpretation. Just the original Hyundai Motor Company procedures, printed in August 2007.

Connector Configurations: Why the Manual’s Diagrams Beat Aftermarket Junk

Open the manual to page 4 and you’ll see exactly how Hyundai labels every connector in the starting system. The system name, system code, wire colors, harness numbers, terminal numbers – it’s all laid out with no ambiguity. Aftermarket manuals often consolidate connectors into one generic block and call it good. That’s fine if you’re working on a lawnmower. On a D6AB with a 12-liter diesel, one crossed terminal can fry the ECM. This manual gives you the actual connector manufacturer part numbers, the distinction between female and male pins, and even the number of terminals per connector. If you’ve ever stared at a rat’s nest of wires under a Hyundai HD270 dash, you’ll appreciate the connector configuration section on page 4 and the full connector code explanation on page 5.

Does This Manual Cover the Starting System?

Yes, and it does it right. The schematic diagrams section (SD in the TOC) walks you through the starting circuit from the ignition switch down through the starter relay and fuse to the starter motor itself. You get the wire colors – B for black, G for gray, L for blue – and the exact terminal codes used at each connector. There’s a system code for the starting system (EE03T701 on page 4) so you can cross‑reference with component locations and harness layouts. No guesswork about which relay is which.

3 Reasons to Use Hyundai’s Own Troubleshooting Instructions

• Factory diagnostic flow. The troubleshooting instructions start at page 3 (GI-8) and give you a logical sequence for isolating faults. Not “check the battery” – it’s “test for voltage drop at the starter magnetic pickup with ignition ON.” That kind of specific step saves time.
• Component locations that match reality. The manual includes a whole chapter (CL) with photo references. Each component has a picture number that correlates to the harness layouts. You don’t have to hunt for the starter relay – the manual tells you it’s behind the fuse panel on the passenger side frame rail.
• No outdated wiring colors. Aftermarket manuals frequently use generic color codes that were abandoned after 2005. Hyundai’s 2007 printing uses the exact wire colors that left the factory. If the original harness has a brown/white trace, this manual shows it.

Get the Right Torque Specs – Or Don’t Start the Job

Torque spec data? That’s in the troubleshooting instructions. Page 3 references the allowable torque for starter mounting bolts. You won’t find a table here – this is a troubleshooting manual, not a service manual – but where torque matters (like ground studs and relay terminals) the manual gives you the number. Never rely on a generic chart from the internet. A loose ground on a D6AC means intermittent no‑start that drives you crazy for a week.

Schematics vs Reality: What Page 3 Tells You

Page 3 starts the “How to Use This Manual” section with troubleshooting instructions. It explains every symbol used in the diagrams – the difference between a component connector and a harness connector, how to read system codes, and what the picture numbers mean. If you skip that page, you’ll misinterpret the schematics. I’ve seen guys ignore the symbol legend and spend three hours trying to locate a connector that doesn’t exist because they misread the harness classification. Page 3 saves you from that mistake.

FAQ

What engine models are covered?

Hyundai D6AB, D6AC, and D6AV. All three are heavy‑duty diesel engines used in various Hyundai truck models.

Does this manual include torque values for the flywheel bolts?

No. This is a troubleshooting manual focused on electrical and control systems. Torque specs mentioned are only for components in the starting/charging circuits.

Can I use this for a different year?

No. This 2007 edition is specific to 2007‑model heavy‑duty trucks. Wiring and connectors changed in later years. Using it for a 2011 will give you wrong pinouts.

Why should I buy this instead of a free online schematic?

Free schematics are often scanned from unknown sources, missing pages, or color‑converted to grayscale. This manual is a complete 170‑page PDF with every page clear and searchable. The connector pinout diagrams are factory‑accurate, and you get the official Hyundai troubleshooting flow. On a job worth $800, a $40 manual is insurance.

If you work on Hyundai heavy‑duty trucks with D6AB, D6AC, or D6AV engines, you need this manual on your bench. You can check the EMS Troubleshooting Guide for Hyundai Vehicles for control system specifics or the 2011 Hyundai Sonata Electrical Troubleshooting Manual for passenger car work. For engine DTC guides, the Hyundai D6Ca D6Cb Engine DTC Troubleshooting Manual pairs well with this one. For background on diagnostic procedures, read the Automotive Industry Overview and the Manual Transmission basics if you need drivetrain context. Access the Factory Manual and stop chasing ghost faults.
