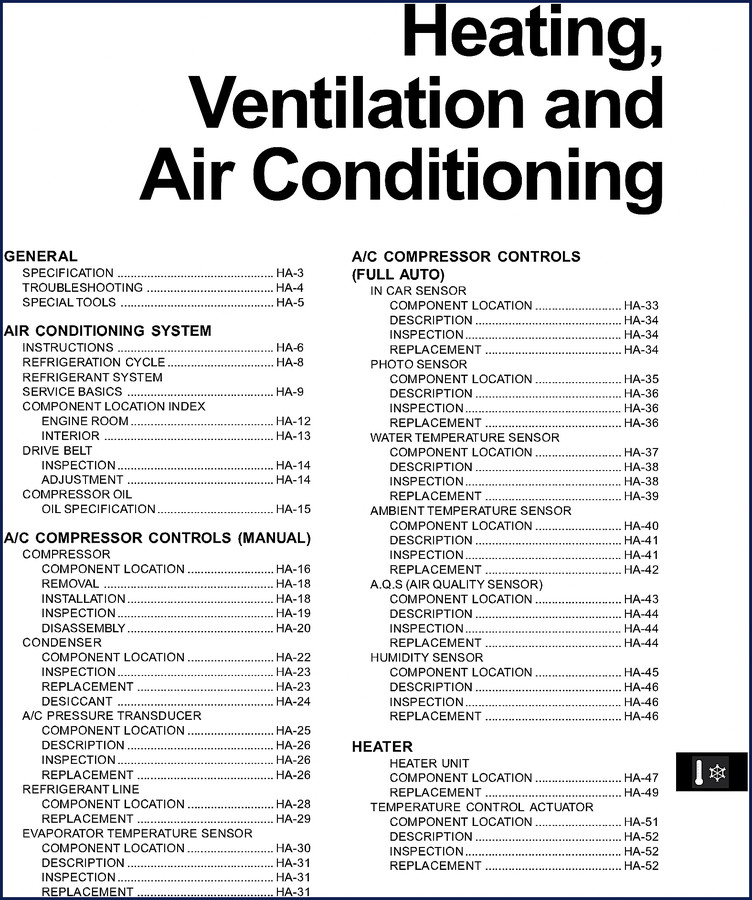

Hyundai 318, 323, 325 Service Manual

If you’re working on a Hyundai 318, 323, or 325 and the heat or AC is acting up, you know the drill. You pull the blower motor, test for voltage, swap the resistor — still nothing. Then you start guessing. That’s how you blow a weekend and a few hundred in parts. I’ve been there. This Hyundai 318, 323, 325 Service Manual is 78 pages of factory procedure, not some aftermarket rewrite. It tells you exactly how to test each component, what the resistance values should be, and where the connectors live. No fluff — just the steps Hyundai wrote for their own techs.

Let’s talk about what’s inside.

Mode Control Actuator: Inspection and Replacement

The manual covers the mode control actuator from component location to the actual removal steps. It includes the inspection procedure — you’ll find the actuator’s feedback voltage range and what to do if it’s out of spec. The repair section shows removal without breaking the blend door link. I’ve seen guys crack those housings because they didn’t read the note about the retaining clips. It’s all in here.

Blower Motor and Resistor Testing

The manual separates manual and automatic HVAC systems. For the blower resistor, the inspection procedure lists resistance measurements for each speed tap. Don’t assume the resistor is bad before checking the motor ground — the manual covers that. For vehicles with automatic climate control, the Power MOSFET is a different animal. The component location diagram shows exactly where it sits in the plenum. Replacement requires care with thermal paste — the manual calls out which compound to use.

Does the Manual Include Self-Diagnosis for Automatic Climate Control?

Yes. Page HA-73 covers the self-diagnosis mode. You put the system into diag, read the flashing codes, and cross-reference the chart. The manual lists each fault code and the likely cause. That alone can cut diagnostic time in half. I’ve used this on a 325 that had intermittent compressor cutout — one code pointed to the ambient sensor, which the manual described as a two-wire thermistor. Replaced it, problem gone.

10 Common Failures Mapped in the Problem Symptoms Table

The troubleshooting section has a table with ten symptoms: no blower operation, no air temperature control, no compressor operation, no cool air, insufficient cooling, no idle-up, no inlet control, no mode control, no cooling fan. Each row gives possible causes and the order to check them. For “no cool comes out,” it lists low refrigerant, compressor clutch failure, expansion valve blockage, and evaporator temp sensor fault. You go down the list with a multimeter and manifold gauges. The specification table on page 2 gives compressor oil type and capacity for the VS16M: PAG oil, 150 ± 10 cc. That matters when you replace the compressor.

Compare OEM vs Aftermarket Documentation

I’ve seen too many aftermarket manuals copy the wiring diagram upside down or omit the pull-up resistor values. This Hyundai 318, 323, 325 Service Manual is an original factory print — 78 pages scanned from the binder Hyundai gave dealers. The component location diagrams are actual line drawings, not blurry photos. For the rest of the vehicle you’d want Hyundai Santa Fe Service Manual 2001-2002 – 353 Pages OEM Factory Specs or Hyundai 75-7 Service Manual – OEM Factory Specs for Excavator Repair if you’re working on equipment. For the 318/323/325, this HVAC manual is the only source for the blower control self-test procedure. Don’t trust a third-party summary.

If you’re a DIYer who’s never pulled a dash before, you’ll benefit from the step-by-step removal of the climate control air filter and the intake actuator. The manual uses the same language as the factory training — straightforward, no drama. For more on automotive systems, see Automotive Industry Overview for context on modern HVAC control strategies. And if you’re comparing transmissions, Manual Transmission provides complementary knowledge.

Hyundai Robex 36N-7 Service Manual – Factory Specs for Excavator Repair is another manual on the site if you work on heavy machinery. But for your Hyundai 318, 323, or 325’s heating and air conditioning, this is the manual.

Frequently Asked Questions

Does this manual cover engine and transmission repair?

No. This is a dedicated HVAC service manual (78 pages). It covers only the heating, ventilation, and air conditioning system for Hyundai 318, 323, 325 models.

Can I use this manual for diagnostic without special tools?

You need basic hand tools and a multimeter. For automatic climate control self-diagnosis, you don’t need a scan tool — the manual explains how to enter the mode using the control panel buttons. For refrigerant work, you’ll need manifold gauges and a vacuum pump. The specification table lists the correct PAG oil capacity and compressor type (VS16M). The manual also includes a list of special tools required for certain repairs, like the actuator alignment tool. If you follow the procedure in order, you won’t get stuck guessing which pin to probe.

Stop chasing HVAC ghosts on your Hyundai. Get the factory documentation that Hyundai technicians used. Access the Factory Manual from AutoRepairManuals and keep it on your tablet or print it out. Your time and parts budget will thank you.
