Honda GL500, GL500 Interstate, GL650 Interstate 1983 Service Manual

If you’ve been burned by aftermarket manuals that list the wrong clearance or skip the shim selection procedure, you already know why OEM matters. This is the actual Honda GL500, GL500 Interstate, GL650 Interstate 1983 Service Manual printed by Honda Motor Co., Ltd. in October 1982. 336 pages, factory-sourced, no third-party reprints. I’ve been turning wrenches for 28 years, and I’ve seen what happens when a tech relies on a generic scan. You get head gasket leaks, stripped threads, and electrical gremlins that take three days to trace. This manual kills that guesswork.

Engine and Cylinder Head – The Real Specs

Section 6 – CYLINDER HEAD/VALVE – gives you the factory valve clearance numbers and the exact torque sequence for the cylinder head bolts. No aftermarket guesses. If you’re rebuilding a GL500 or GL650, you need the cam chain tension specs from section 10. Miss that, and you’ll be pulling the cover again in 500 miles. Page 73 in the 1983 addendum lists the updated torque values for the cylinder head and camshaft sprocket bolts. I’ve seen DIYers snap those bolts because they used a generic chart. Don’t be that guy.

Fuel System – Not Just Cleaning, It’s Calibration

Section 4 covers the FUEL SYSTEM, including carburetor identification numbers and float level adjustments. The 1983 addendum (section 24) updates the fuel system specs for the GL650 Interstate. You get the exact pilot screw turns and float heights – not a range, not a suggestion. Your bike will idle right the first time.

Transmission and Crankshaft – Bottom End Data

Section 11 – TRANSMISSION – and section 12 – CRANKSHAFT/PISTON – give you the gear backlash limits, bearing clearance, and piston ring end gaps. If you’re splitting the cases, you need the crankshaft runout specs from this manual. The GL500 and GL650 share the same basic bottom end, but the Interstate has different final drive ratios – it’s all in section 14.

Section 7 (CLUTCH/OIL PUMP) and section 9 (COOLING SYSTEM) round out the drivetrain service data. The oil pump rotor clearance is factory-measured, not estimated.

Does This Manual Cover the 1983 GL650 Interstate?

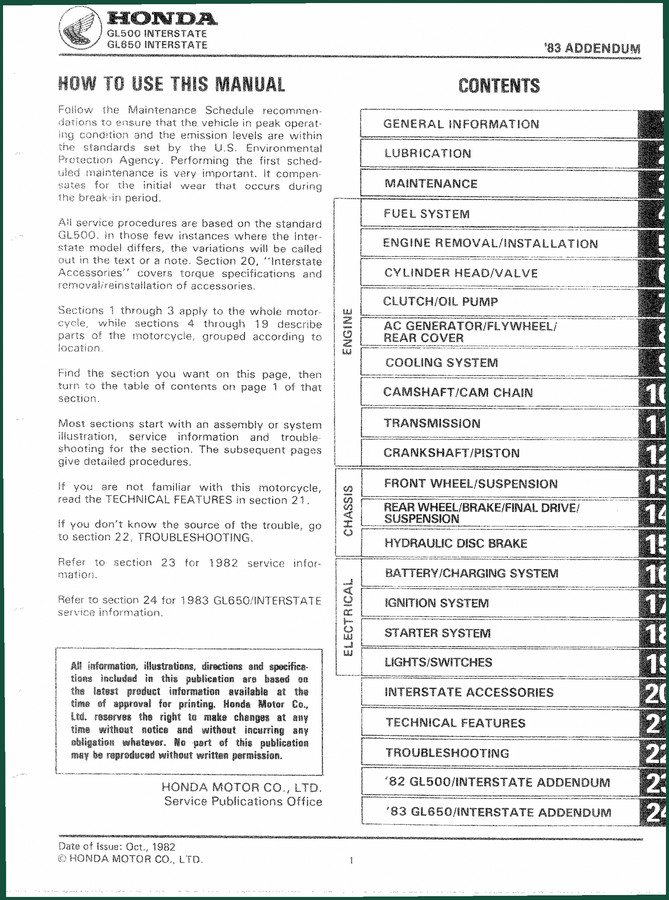

Yes. The last section (section 24) is the ’83 GL650/INTERSTATE ADDENDUM. It includes separate wiring diagrams, model identification, service data, lubrication, maintenance, fuel system, clutch, cooling, cam chain, transmission, front wheel/suspension, rear wheel, and switches. If you own a 1983 GL650 Interstate, this manual covers it completely. The 1982 addendum (section 23) is also included for earlier models. One manual, three years of coverage.

3 Reasons to Choose OEM Documentation

First, torque specs. Aftermarket manuals often round numbers to the nearest 5 ft-lb. Honda uses precise values – like the 18 ft-lb for the cam chain tensioner bolt. Second, wiring diagrams. Section 24 has the exact wire colors and connector pinouts for the Interstate’s extra lights and accessories. Third, troubleshooting. Section 22 walks you through no-start, poor charging, and brake issues using a logical flowchart. No guesswork, no skipping steps.

Audience Fit – Who Needs This Manual

The home garage mechanic rebuilding a neglected GL500. The owner of a 1983 GL650 Interstate who wants to keep it original. The shop that sees a Honda Silver Wing every few months and needs the correct brake bleeding procedure from section 15 – HYDRAULIC DISC BRAKE. If you don’t own a factory manual for these bikes, you’re working blind.

Related manuals: Honda VT600C 1998 Service Manual – Factory OEM Repair Guide covers a different platform but shares Honda’s service philosophy. Honda VFR800/A 2002 Service Manual – OEM Factory Repair Guide and 1994 Honda Civic Service Manual OEM Factory Specs are also available for other projects. For background on motorcycle transmissions, see Manual Transmission or read the Automotive Industry Overview for broader context.

FAQ

Does this manual include torque values for the engine?

Yes. Every major fastener torque is listed, including cylinder head, camshaft, connecting rod, clutch, and final drive. The 1983 addendum on page 73 has the updated figures for the GL650.

Is the wiring diagram in color?

No. The manual uses black-and-white line diagrams with component callouts and wire color abbreviations. Honda printed it that way in 1982, and it’s still readable.

Stop relying on forum screenshots and translated PDFs. This is the factory binder that Honda dealers used. Access the Factory Manual and get the right data for every bolt, every wire, every adjustment on your 1983 GL500, GL500 Interstate, or GL650 Interstate.
