Holset HX55V 1998 Repair Manual

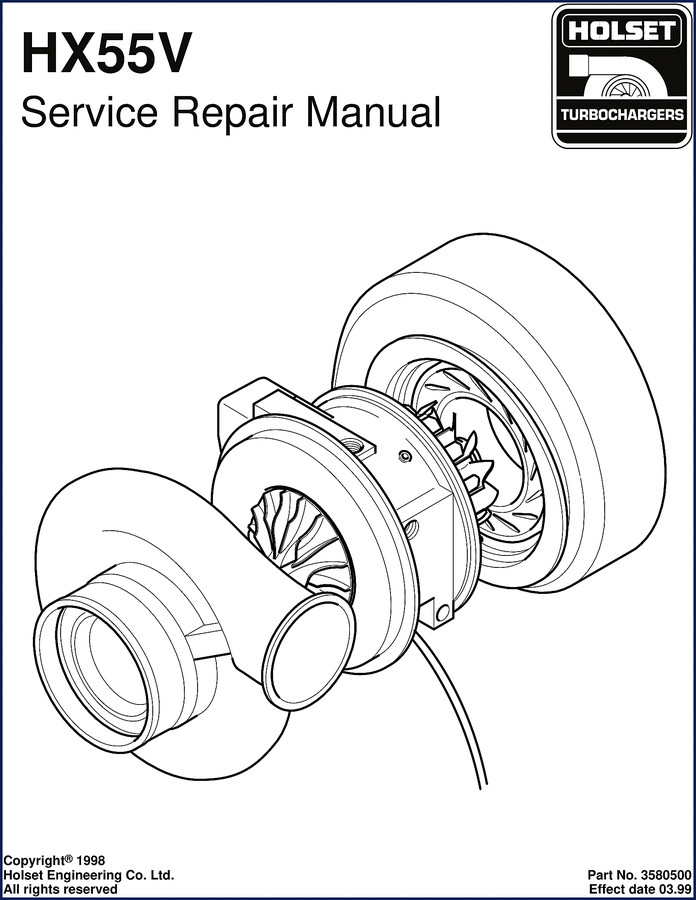

If you’re tearing into a variable geometry turbo without the factory paperwork, you’re wasting time and risking a come-back. I’ve seen guys skip the washer stack orientation on the actuator linkage and end up with a seized vane ring. The Holset HX55V 1998 Repair Manual puts the original engineering data in your hands—no third-party interpretation, no missing pages. This is the same publication Holset issued to field service personnel in 1998, Part No. 3580500, Effect date 03.99. Forty-one pages of specs, exploded views, and step-by-step procedures. If you’re a DIY shop or a fleet mechanic in San Antonio, this is what you need to do the job once and walk away.

Variable Geometry Turbo: What This Manual Covers

The HX55V uses an electronically controlled variable turbine. The manual spells out how the system changes airflow based on driver demand—eliminating lag and keeping emissions in check. It also covers the water-cooled bearing housing. Two extra coolant pipes: get the flow direction wrong and you cook the speed probe. Page 4 of the manual lays out the general information. You’ll find the theory of operation right up front, plus a warning that new O-rings are mandatory any time you open the water connections. Miss that detail and you’ll be buying a core in six months.

Need to know if your actuator is working? The manual includes an actuator inspection and replacement procedure starting on page 15. It lists the stroke and pressure ranges. No guesswork—you test it or you replace it.

Fault Finding Chart on Page 5

When the engine won’t build boost or the variable geometry arm is stuck, you don’t start throwing parts at it. Page 5 has a fault finding chart. It walks you through symptoms, probable causes, and the correct order of checks. Low boost? Could be a stuck vane, a failed actuator, or a leaking boost hose. The chart keeps your diagnostic time under twenty minutes. I keep a copy laminated on the wall next to the Dyno.

Disassembly and Assembly: The Service Tools You Need

Page 23 lists the mandatory service tools. You can’t fake the disassembly pins and the compressor wheel puller. The disassembly procedure starts on page 24: remove the actuator, speed probe, then the turbine housing. Each step has a note about orientation and torque. After cleaning and inspection (pages 29) you move to assembly on page 33. The manual calls out the preload and end float checks. If you don’t own a dial indicator with a magnetic base, buy one before you open the box.

Installation data is on page 40. That’s where you find the tightening sequence for the turbine housing bolts—85 ft-lb for the M10 fasteners—and the oil drain tube torque. The installation checklist on page 41 makes sure you didn’t forget the O-ring on the coolant return line.

41 Pages of Holset Factory Documentation

This isn’t a rehashed aftermarket summary. It’s the original scan from Holset Engineering Co. Ltd., copyright 1998. The manual covers the HX55V only—not other variants. If you’re working on an HX55V on a Cummins or a Detroit Series 60, this is the exact document you need. Every torque value, every clearance spec, every component identification diagram comes from the factory. I’ve seen aftermarket manuals transpose the bearing clearances—costing a shop a turbo and a warranty claim. Avoid that by using the real thing.

Related manuals you might need: the Holset H2B/C/D/E/S Turbocharger Repair Manual for smaller frames, or the Holset HY40V Service Manual if you’re dealing with another variable geometry unit. For larger turbos like the HC5A or HX80 series, grab the Holset HC5A/HX80/82/83/85 HT4B/4C/80 Manual.

Does This Manual Cover the Fuel System?

No. This is strictly the turbocharger. Fuel injection timing and pump calibration are separate documents. If you need that information, you’ll want an OEM engine manual or a Manual Transmission powertrain guide. Always pair the right manuals together—don’t assume one document covers everything.

What about parts identification – does it show part numbers?

The component identification pages (starting page 11) include exploded views with Holset part numbers. The manual specifically says to use only genuine Holset replacement parts. It does not list OEM cross-references but it gives you the Holset numbers to order.

Can I use this for a different model year HX55V?

The manual is based on information in effect at the time of printing (1998). If your turbo has a later effect date or a different part number, Hollset advises contacting an approved dealer. The variable geometry design is similar across years, but the control logic and actuator specs may differ. Use this as a baseline, but verify actuator stroke with your specific ECM calibration.

For power transmission and clutch work, you may also reference a Manual Transmission service manual to ensure proper driveline alignment when reinstalling the turbo after overhaul.

Stop chasing ghosts with generic instructions. Access the Factory Manual and get the rebuild right the first time.
