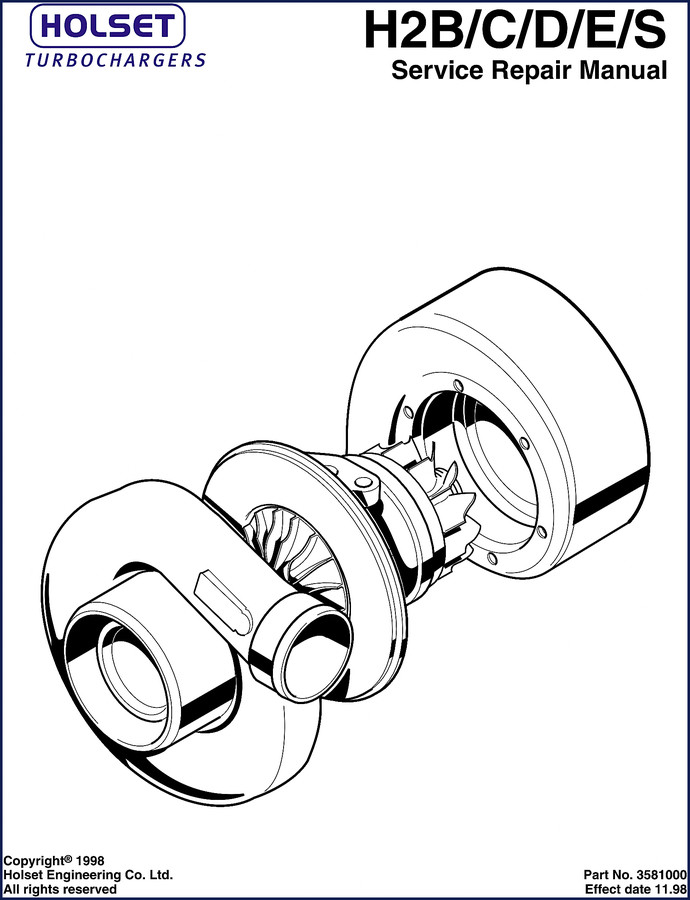

Holset H2B, C, D, E, S 1998 Repair Manual

You’ve got a Holset turbocharger sitting on the bench, and you need to put it back together right. Without the factory specs, you’re gambling with a wheel rub or oil leak. The Holset H2B, C, D, E, S 1998 Repair Manual is 31 pages of what the engineers wrote, not what some third-party editor guessed. I’ve seen DIY guys buy aftermarket reprints and end up with bearing clearances off by 0.001 inch. That’s enough to wreck a shaft. This manual comes from Holset Engineering Co. Ltd., 1998, part number 3581000. It covers the H2B, C, D, E, and S models with the same core design. Every dimension, every torque spec, every step came from the factory floor.

Fault Finding Chart – Page 5 Diagnoses Problems Fast

When a turbocharger is blowing oil or not spooling right, you need a systematic approach, not a parts cannon. The Fault Finding Chart on page 5 is a flowchart that walks you through symptoms like low boost, excessive oil consumption, and unusual noise. Instead of tearing down the entire unit to find the issue, you check inlet restrictions, oil drain blockage, or shaft play first. This chart saved me a full rebuild last year when a customer’s H2S was smoking. Turned out to be a kinked oil drain line. Without the chart, I would have pulled the cartridge for nothing. That’s billable hours wasted.

Service Tools: What You Need Before You Start

Before you crack the turbine housing, read the Service Tools list on page 15. Holset specifies the exact pullers, seal installers, and torque adapters required. Using a generic bearing puller on an H2B thrust collar can gouge the surface. The manual tells you which Holset part numbers fit. One example: a seal installer tool that prevents damaging the piston ring during assembly. Skip that tool and you’ll be buying a new seal kit. The manual also lists thread lock compounds and lubrication specs. It’s not a suggestion—it’s the difference between a rebuild that lasts 200,000 miles and one that fails in 20,000.

Installation Data on Page 30 – Torque Specs That Matter

Torque specs are not suggestions. Page 30 gives you the installation data for every critical fastener: turbine housing bolts, compressor nut, center housing bolts, and the oil inlet fitting. These are imperial torque values from the factory. I’ve seen aftermarket manuals transpose metric units incorrectly, leading to stripped threads or leaks. The H2B compressor nut torque, for example, must be precise to prevent the wheel from slipping on the shaft. The manual also includes axial and radial clearance limits. Measure those with a dial indicator. If you skip this step, you will get shaft contact. Period.

Who Needs This Manual?

Home garage guys who want to rebuild their own turbocharger without paying a shop $1,200. Diesel enthusiasts working on an H2C or H2E from a Cummins or Navistar application. Small fleet mechanics who need to keep a backup turbo ready. If you can read a torque wrench and own a set of micrometers, this manual gives you the roadmap. It also includes the disassembly and assembly sequence, starting from page 16, with steps like marking the orientation of the turbine wheel before removing it. Miss that step and you may get a persistent imbalance. The cleaning and inspection section on page 21 shows exactly what to look for: cracks in the turbine housing, worn bearing journals, carbon buildup on the backplate. Those are the details that save you from reinstalling a junk core.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the aftermarket manuals I’ve seen copy the exploded view but leave out the torque sequence. Page 13 shows the exploded view with part numbers keyed to the assembly order. Second, aftermarket books often use generic photos. This manual uses Holset’s own drawings with correct datum references. Third, the installation checklist on page 31 verifies every step: rotate the shaft by hand, check for rubs, confirm oil feed hole alignment. Aftermarket versions say “reassemble in reverse order” which is worthless. If you’re working on a vehicle with a manual transmission, you already know that skipping a step costs you time. Refer to the Manual Transmission documentation for clutch clearance when reinstalling the turbo. Also check shift linkage routing against your Manual Transmission service information to avoid interference with the oil supply line. The OEM manual prevents those mistakes.

FAQ

Does this manual cover the H2S model?

Yes, the H2S is specifically listed in the title and throughout the manual.

Are torque specs in imperial units?

Page 30 lists all torque values in pound-feet and inch-pounds. The Holset manual uses imperial units for every fastener including the compressor nut (24–30 lb-ft) and turbine housing bolts (specified by size). If you need metric conversions, you’ll have to do them yourself because the factory document stays with imperial. That’s how the bolts were designed. I’ve seen aftermarket manuals incorrectly use Newton-meters for SAE fasteners, leading to undertorqued joints and oil leaks. The OEM data is correct as printed.

Can I use this manual for a Holset HX55 turbo?

I would not recommend it. The HX55 uses a different bearing system and wheel geometry. For that model, get the Holset HX55V 1998 Repair Manual – Factory Turbo Specs. The H2B/C/D/E/S share a common core design, but the HX55 has different clearance specs.

Is the fault finding chart helpful for common symptoms?

Yes, it covers low boost, high oil consumption, smoke from exhaust, and unusual noise. The chart uses a yes/no flowchart that isolates the root cause in minutes.

If you’re serious about rebuilding a Holset H2B, C, D, E, or S, stop relying on forum guesses. Access the Factory Manual from AutoRepairManuals and get the genuine 1998 Holset document. It’s 31 pages of what you need. For other Holset turbo models, see the related manuals below.
