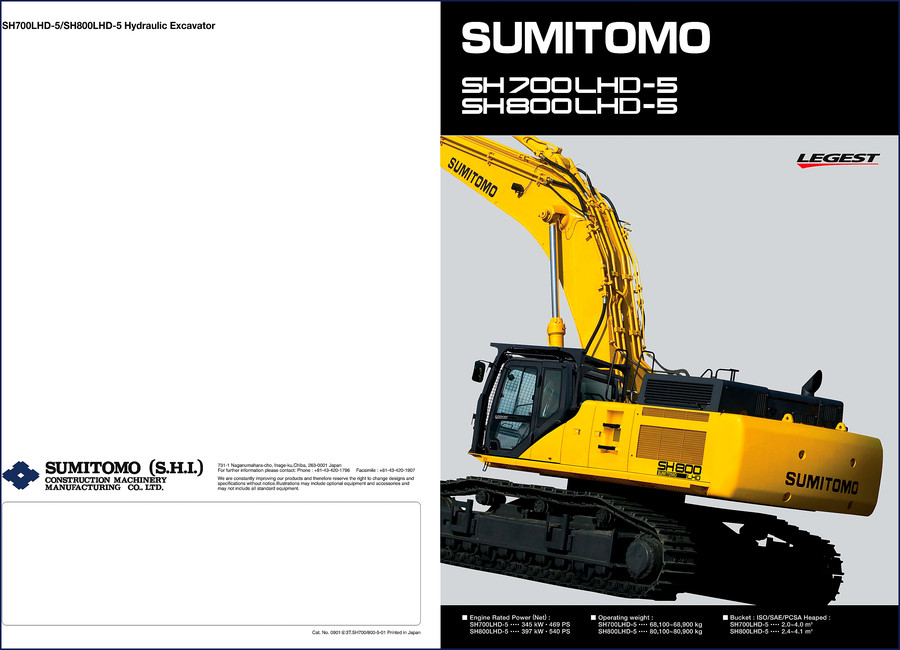

Hitachi Sumitomo SH700LHD-5, SH800LHD-5 Technical Manual — What the Factory Wrote

If you have ever torqued a head bolt on a big-bore diesel and chased a spec through aftermarket garbage, you know the frustration. These Hitachi Sumitomo machines — SH700LHD-5 and SH800LHD-5 — run ISUZU 6WG1X engines with 15,681 cc displacement. That is not a lawnmower. You need the real numbers from the factory, not a photocopy of a photocopy. This Hitachi Sumitomo SH700LHD-5, SH800LHD-5 Technical Manual is 14 pages of exactly what the plant in Chiba City, Japan, put on paper. No filler. No guesswork. Page 1 lists operating weight for the SH700LHD-5 at 79,800 kg and the SH800LHD-5 at 80,100 kg. Page 3 gives engine rated output: 445 kW for the SH700LHD-5, 505 kW for the SH800LHD-5 at 1,800 rpm. That is data you can bet a repair bill on.

Engine Specifications: ISUZU 6WG1X Displacement and Output

Both models share the same engine block and displacement — 24-valve OHC, ladder frame, V-belt drive. Rated speed stays at 1,800 rpm. The difference shows up in the power curve: the SH800LHD-5 gets a bump to 505–545 kW (depending on the emission variant), while the SH700LHD-5 runs 445–490 kW. You need to know which one you are working on before you order injectors or set valve lash. The manual spells out the specs in a clean table on page 3. No interpretation needed.

SPACE 5: What That Engine System Actually Means

SUMITOMO calls this “SPACE 5” — five special features: Powerful, Economical, Clean, Silent, Strong. Sounds like marketing, but the technical manual explains the hardware behind it. The engine package includes a new working mode and the SIHS system. SIHS stands for Sumitomo Integrated Hydraulic System. If you are chasing a hydraulic drift or a sluggish swing, you need the factory baseline pressures and flow rates. This 14-page document gives you the component layout and the rated parameters. It is not a full service manual, but it is the spec sheet you compare your readings against.

Durability and Maintenance Points: Filters, Tank, Drain

The manual walks through the high-performance hydraulic return filter, fuel tank design, and engine oil drain coupler. Page references are limited in this brochure-style document, but the information is direct. For example, the fuel tank capacity and drain locations are shown in the maintenance section. If you are doing a fluid change, you want those numbers. Aftermarket glossaries skip this level of detail. This OEM print does not.

Safety and Cabin: Optimised View and High-Rigidity Structure

Safety section — page 14 in the OCR layout — covers optimised sight lines from the cabin and the high-rigidity cab structure. For a technician, knowing the cab reinforcement points matters when you are welding brackets or installing aftermarket guarding. The factory has the load paths engineered. The manual briefly describes them. Not a novel, but enough.

Why a 14-Page OEM Tech Manual Beats Aftermarket Novels

I have seen aftermarket manuals that claim to cover “all models” and then give you generic torque values that strip threads. This factory document is lean. 14 pages. It does not pretend to teach you how to rebuild the swing gear. But when you need the engine net power, the operating weight, the bucket range (2.4–3.2 m³ for SH700LHD-5, 2.6–4.1 m³ for SH800LHD-5), or the compliance with EPA Tier 2 and EU Stage IIIA, you open this file and you have the real answer. For the money you save avoiding one wrong part order, this manual pays for itself.

Who Needs This Manual

You do if you own, operate, or service either of these excavators. Home garage guys? Unlikely to have a 80-tonne machine in the driveway. But fleet mechanics, rental yard managers, and heavy equipment rebuilders — you know the pain of calling a dealer for a spec and waiting on hold. This 14-page PDF sits on your tablet or phone. You check it before you pull the valve cover. The audience is professional, but the language is direct enough for an experienced DIYer with a big shop.

Source Validity: From Chiba City, Japan, Not a Third-Party Reprint

The file name says it: SUMITOMO_SH700LHD-5-SH800LHD-5_Technical_Manual_en-31113018933.pdf. That is the factory part number. The manual states that all SUMITOMO hydraulic excavators are engineered and assembled in their one factory in Chiba City, Japan. Some components may be sourced globally, but the integration is Japanese. When you access this, you get the same document a dealer tech would reference. Compare that to a scanned photocopy that lost the gradients on the spec table. This is the original digital file.
