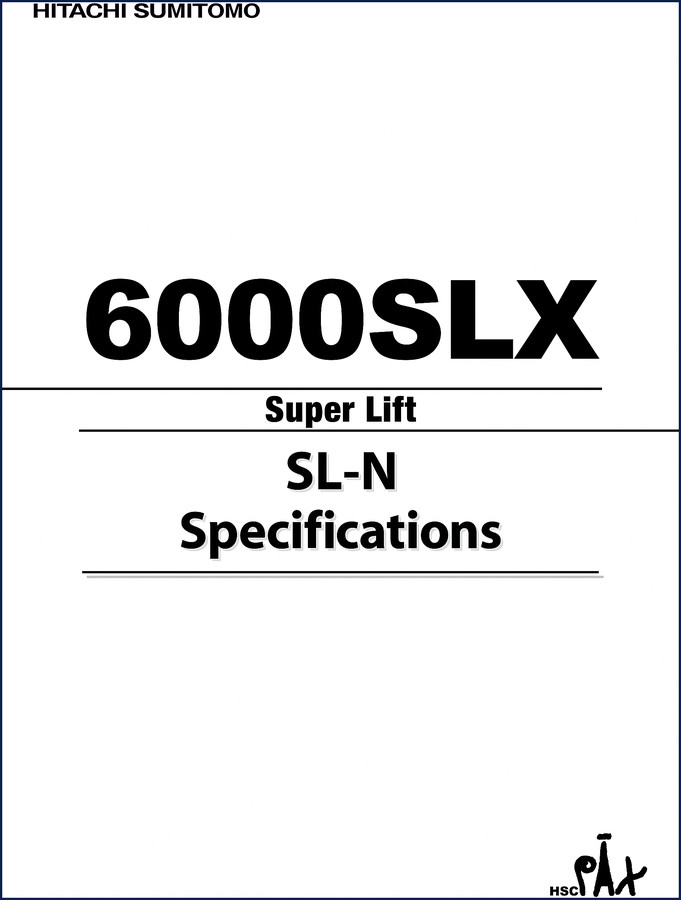

Hitachi Sumitomo 6000SLX Technical Manual

Let me tell you something about specs. I’ve been turning wrenches for 28 years, and I’ve seen more bent booms from guessing lift capacities than from any mechanical failure. You don’t guess on a crane that costs this much. The Hitachi Sumitomo 6000SLX Technical Manual is the factory document you need. 32 pages, no aftermarket reprints, no vague diagrams. Every number in here came from Hitachi Sumitomo’s engineering department.

Hitachi Sumitomo 6000SLX Technical Manual: Engine and Hydraulic System Specifications

Engine data starts on the third page. Isuzu 6WG1, 4-cycle, water-cooled, direct injection, turbo-charged diesel. Displacement 15,681 cc. Rated output 397 kW at 1,800 rpm. Fuel tank capacity 800 liters. Hydraulic system uses three variable-displacement axial piston pumps plus a fixed-displacement tandem gear pump. Reservoir holds another 800 liters. You get the electrical system: 24 V DC, two batteries. Control system is hydraulic servo with ergonomic lever layout. That’s not aftermarket fluff—that’s OEM data.

Liftcrane Boom Combinations and Capacities

The manual breaks down boom configurations clearly. Heavy duty boom combinations start on page 8 with a working range diagram right beside it. Page 9 has the capacity chart. Pages 10–11 are the notes—critical stuff like reeving factors and deductions. Long range boom is on pages 12–15, same structure. Capacities are in pounds, lifted at specific radii. If you try to run a 6000SLX without these charts, you’re gambling with the whole machine. Page 18 through 22 give you the working range diagrams for the luffing tower configuration. That’s 5 full pages of radius vs. boom angle data.

Working Range Diagrams: Reading the Lift Envelope

Each working range diagram shows boom length, angle, and radius. You need to match your lift point to the curve. For the luffing tower, the diagrams cover multiple boom lengths. The manual includes outlines on page 4 and winch assignment on page 5. Winch drums W1 and W2 have independent bi-directional hydraulic motors—page 3 tells you that. If you skip the winch assignment table, you might cable up the wrong drum for the load. That’s a safety incident waiting to happen. Manual Transmission data for the engine controls is also found in the spec sheets if you need that cross-reference.

Transport Data on Pages 30–31

Getting this crane to the job site requires exact dimensions and weight. Pages 30 and 31 cover transport data—overall width, height, transport weight, and shipping configuration. You bolt the crawlers off, remove the counterweight, and you still need to know the max load per axle. The manual gives you the numbers so you don’t get pulled over or damage the trailer. Manual Transmission reference can help if you’re dealing with the transport vehicle’s gear ratios, but for the crane itself, this is the only source.

Why OEM Specs Matter for the 6000SLX

Third-party manuals often copy the capacity charts but leave out the notes. Pages 10–11, 14–15, and 28–29 are all notes. Those notes contain the deductions for jib offsets, wind load limits, and boom angle restrictions. Miss one note and you overload the structure. I’ve seen it happen. This technical manual is the original factory print. No reprints, no scanned copies from a copy machine. You get the original PDF with the original tables. That’s what separates a safe lift from a catastrophe.

What the Capacity Notes Hide

Flip to page 9 for heavy duty boom capacities. The numbers look straightforward—boom length, radius, capacity. But look at the notes on the next page. They tell you the capacity is based on outriggers fully extended, or on crawlers with specific pad widths. If you run the crane on crawlers without adjusting for the pad factor, you’ll exceed the allowable ground bearing pressure. The notes also cover main boom and jib combinations. Same for long range boom on page 13 with notes on pages 14–15. The luffing tower capacities on pages 23–27 have their own notes on pages 28–29. That is 8 pages of notes total. Do not ignore them.

Related Manuals

• HITACHI SUMITOMO 6000SLX Technical Manual
• Hitachi Sumitomo 6000SLX Specifications Manual
• Hitachi Sumitomo 6000SLX SL-N Specifications

Does this manual include torque values for assembly?

No. This is a specifications manual, not a service manual. It covers dimensions, capacities, and engine/hydraulic data.

What specific data can I expect from the capacity charts?

The manual provides load capacities for the 6000SLX in various configurations: heavy duty boom, long range boom, and luffing tower. Each capacity chart includes notes that list allowable deductions, reeving factors, and restrictions. For example, page 9 covers heavy duty boom capacities, with notes on pages 10–11 explaining how to adjust for jib offsets, wind loads, and outrigger usage. This level of detail is critical for safe lifting operations. Without these notes, you risk exceeding the design limits of the crane. The manual also gives working range diagrams on pages 8, 12, and 18–22, showing maximum reach for each boom configuration.

You’ve got a 6000SLX in the yard or you’re about to work on one. Don’t trust your memory or a generic web search. Get the factory document that tells you exactly what Hitachi Sumitomo designed. Access the Factory Manual and keep it on your tablet or print the pages you need. That 32-page PDF is all you need to set up, transport, and operate this crane within its engineered limits.
