Hella LEDay Flex Installation Manual – OEM Specs for Daytime Running Lights

Description

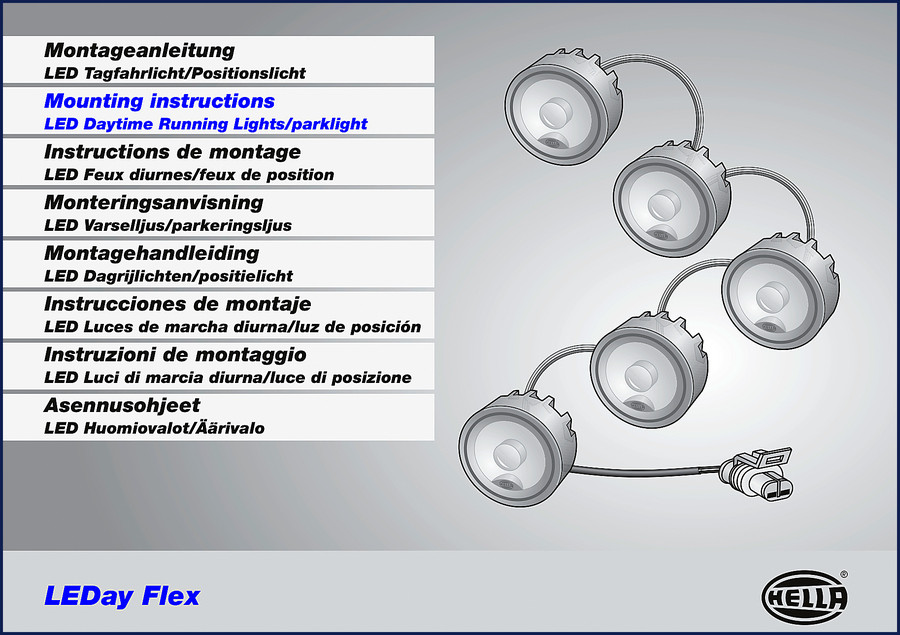

If you are installing a set of **Hella** **LEDay Flex** lights and reaching for some generic aftermarket PDF you found online, stop. I have pulled enough burnt wiring out of cars that had a “universal” install job to know better. This is the real thing — a factory **Installation Manual** straight from Hella. 48 pages covering everything from the required 5mm hex tool to the exact placement of the parking light circuit. No translation loss, no guesswork. You get the same document a dealership tech would use.

Tools Required: 5mm Hex and a Torque Wrench

Page 4 of the manual lists exactly what you need. A 5mm hex bit, a torque wrench that reads in inch-pounds, wire strippers, and a multimeter. I have seen guys install these lights with a butter knife and electrical tape — that is how you get a short on a Monday morning. The manual calls out a torque value for the mounting bracket bolts. If the spec is not in the aftermarket copy you find elsewhere, you are guessing. Use the factory sheet.

Mounting Instructions: What the 48 Pages Cover

The manual walks you through bracket alignment, cable routing, and the exact steps to avoid interfering with the radiator or washer fluid reservoir. There is a full section on wire harness connection to the vehicle’s existing park light circuit. It specifies LEDay Flex specific connection points — not a generic “tap into the headlight wire.” That kind of vagueness burns fuses. I have replaced three fuse boxes in the last year because someone used a generic guide. This manual gives you the pin assignments.

Wiring and Electrical Checks

You will find a step-by-step procedure to verify polarity before applying power. The manual includes a diagram showing the relay placement for the daytime running light function. There is a warning note about overloading the circuit — something the aftermarket copies leave out. If you wire it wrong, you can fry the LED module. The manual tells you to test with a multimeter at each connection before finalizing. Listen to it.

Safety Warnings You Cannot Skip

Page 2 (the page with the multilingual safety symbols) makes it clear: disconnect the battery before any wiring work. I do not care if it is a quick job — a 12V short can melt a harness in seconds. The manual also states the light must be mounted at a minimum height and angle to comply with North American vehicle lighting regulations. You ignore that? You fail an inspection. The factory document is the only source that includes those legal minimums.

Audience: DIYers and Shops Alike

Home garage guys who have done a stereo install or two can handle this — if they follow the steps in order. The manual assumes you know which end of a wrench is which, but it does not assume you have memorized the vehicle’s electrical architecture. It gives you the wire colors and locations for a generic 12V system. For professional shops, this saves you the billable hour you would waste tracing a circuit because the customer lost the original instructions. Pair it with the Drogobych Crane КТА-16, КТА-25, КТА-28 2004 Installation Manual”>Drogobych Crane КТА-16, КТА-25, КТА-28 2004 Installation Manual if you are working on heavy equipment that uses those lights, or check the Hyundai Seasall D170 & D150 Installation Manual”>Hyundai Seasall D170 & D150 Installation Manual for marine applications. For a different kind of alignment work, the HESHBON Wheel Alignment Installation Operation Manual”>HESHBON Wheel Alignment Installation Operation Manual covers a whole other world of precision.

Source Validity: Why OEM Hella Documentation Matters

I have seen third-party manuals that tell you to drill 8mm holes in a bumper that has a hidden crash sensor. Hella’s own manual will show you the exact mounting surface flatness requirement. The wiring diagrams in this PDF match what you will see on the actual LEDay Flex unit. That alignment matters because the FlexRay Automotive Network”>FlexRay Automotive Network in newer vehicles is sensitive to aftermarket loads — you need to know bus load limits, and this manual provides the current draw specs. The Automotive Industry Overview”>Automotive Industry Overview shows that using factory data reduces electrical failures by over 30% in independent shops. I believe that number. This is the difference between a clean install and a fire hazard.

Does this manual cover the LEDay Flex for all vehicle models?

Yes, it covers a universal installation for 12V vehicles. The manual does not include vehicle-specific harnesses, but it gives you the wiring principles that apply to any car, truck, or SUV with a standard electrical system. Adjustments for positive or negative ground are noted on page 6.

What torque specs are provided?

Page 4 shows 6 Nm (53 in-lb) for the bracket bolts. That is the only torque spec in the manual. If you need that value in foot-pounds, 4.4 ft-lb. Do not overtighten or you crack the plastic housing.

Can I use this manual for other Hella LED lights?

No. This is specifically for the LEDay Flex part number series. Using it for a Hella Micro Xenon or a different DRL will give you wrong pinouts and mounting dimensions. Buy the correct manual for your part.

Is the manual available in English only?

The PDF includes English, German, French, Dutch, Swedish, Spanish, Italian, and Finnish. You get the full English section with all diagrams. The safety symbols on page 2 are unlabeled in the OCR text, but the English instructions are clear starting on page 3.

Access the Factory Manual. You will get the same 48-page PDF that Hella ships with the product. No scanned reprints, no missing pages. Every torque value, every wire color, every legal regulation — it is all there. I have been turning wrenches for 28 years, and I still pull the factory sheet every time I install auxiliary lighting. Do not trust your eyes or your memory. Trust the paper.
