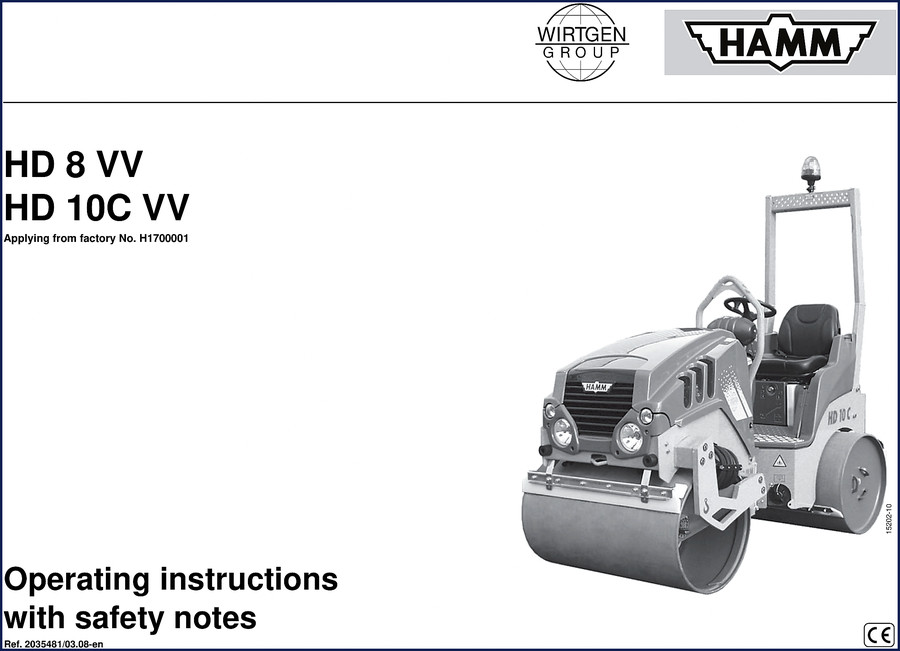

Hamm HD 8 VV, HD 10C VV 2009 Operators Manual

If you’re working with a Hamm tandem roller and don’t have the factory operating instructions, you’re flying blind. I’ve seen guys guess at fuel types, skip pre-start checks, and then wonder why the engine knocks. This Hamm HD 8 VV, HD 10C VV 2009 Operators Manual gives you the specific procedures straight from the Wirtgen Group – not some aftermarket reinterpretation. 84 pages of exactly what you need to run and maintain these machines without burning up a pump or roasting a bearing.

Fuel Handling and Safety: Section 1.3.4

Fuel is a big deal on compactors – wrong grade or contaminated storage kills injectors. On page 15, the manual details fuel specifications including flash point and required additives. Section 1.3.4 also covers grounding during refueling to prevent static ignition. Operators often skip that part – don’t. Use the factory spec for fuel grade and change intervals for the preliminary fuel filter (covered in Section 3.8.2).

Driving with Vibration: Procedure from Section 2.2.5

Engaging vibration while moving is where most new operators mess up. Section 2.2.5 explains the exact sequence: start engine, set travel speed, then engage vibration. It lists operating conditions – not at full throttle, not on steep grades. The manual includes a warning symbol for improper engagement that could damage the drum mount. Refer to page 20 for vibration technical data and permissible drum speeds.

Maintenance Every 10 Operating Hours – What to Check

Section 3.6 lays out the 10-hour maintenance routine: oil level in hydraulic tank, engine oil change points, dry air filter check, coolant level, parking brake and emergency stop function, and cleaning the water filter and spray nozzles. This is the stuff that keeps the roller running all shift. Skimp on the 10-hour checks and you’ll be swapping filters twice as often. The required maintenance parts list in Section 3.3.2 gives exact part numbers for service kits.

Diagnostic Code Tables: Section 4

When the machine throws a code, you need the lookup table. Section 4 gives you diagnostic codes with probable causes. No chasing ghosts. The table is organized by code number. It covers engine, hydraulics, and vibration systems. Use it to narrow down issues before tearing into parts you don’t need to touch.

Why Factory OEM Manuals Beat Reprints

Aftermarket manuals often compress content or leave out warnings. This is the original Hamm publication from 2009 – not a photocopy. The part numbers for service kits are exact, the viscosity charts (Section 3.2.1) are temperature-specific for your region. You can trust the torque values and maintenance intervals because they came from the engineers who built the roller. If you need deeper hydraulic knowledge, the HAMM Compactor Service Training Fundamentals – Section: Hydraulics – Radial Pist expands on pump theory. For a complete parts breakdown, the Hamm 3412 3625 Service Training Manual covers similar models. And the HAMM GRW 10-24 Series Spare Parts Catalogue is a good complement for spare part identification. For background on drivetrain fundamentals, see Manual Transmission and Manual Transmission.

Does this Operators Manual cover both HD 8 VV and HD 10C VV models?

Yes. It covers both models from factory serial number H1700001 onward.

What maintenance intervals are listed in the manual?

The manual has a full maintenance plan in Section 3.3.1. It breaks down tasks by hours: every 10 hours (Section 3.6), every 250 hours (Section 3.7), every 500 hours (Section 3.8), and every 2000 hours or yearly (Section 3.9). Each section lists specific checks – like lubricating the articulated frame steering joint at 250 hours and replacing the hydraulic oil at 2000 hours. There’s also running-in regulations after 50 operating hours (Section 3.4). These intervals are based on Hamm’s own testing and should be followed exactly to avoid voiding warranty or causing component failure.

Can I use this manual to find fuel specifications?

Yes, Section 1.3.4 covers fuel requirements and safety.

What diagnostic support is included?

Section 4 provides a diagnostic code table. If your roller displays a fault code, you look it up in the table to find probable causes. It’s not a full wiring diagram, but it helps narrow down issues. The table is at the back of the manual and includes codes for systems like engine, hydraulics, and vibration control.

Get the 84-page PDF. Access the Factory Manual now – it will save you guesswork and keep your machine running right.
