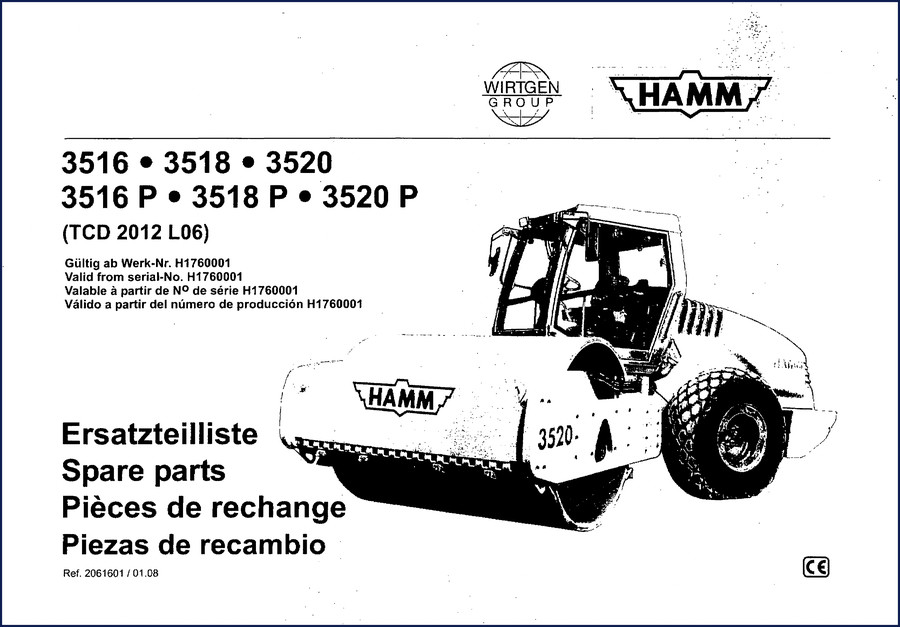

Hamm 3516, 3518, 3520, 3516 P, 3518 P 2012 Parts Catalog – Factory Spec for Roller Repairs

If you’ve ever ordered a part for a Hamm roller and got the wrong bearing, seal, or filter – you know the headache. The aftermarket cross‑references are a joke. They list “compatible” parts that don’t match the factory print. That’s why you need the real Parts Catalog – the one Hamm itself issued for the 3516, 3518, 3520, 3516 P, and 3518 P models (2012 TCD engines). 710 pages. Serial number H1760001 and up. Everything is laid out in exploded views with the exact OEM part numbers. No guessing. No returns.

I see too many guys trying to save a buck with aftermarket PDFs that have blurry diagrams and no serial number breakdown. This catalog starts with a clear type designation explanation on page 5 – it tells you exactly which model you’re working on and what variant. The 3516 is a smooth‑drum compactor with vibration, operating weight 15,755 kg. The 3518 goes up to 17,825 kg. The 3520 is the heavy one. The 3516 P and 3518 P are padfoot versions. If you don’t know the differences, the catalog spells them out.

710 Pages of OEM Part Numbers – No Aftermarket Guesswork

You get 710 pages of parts listings, organized by system. Engine, hydraulics, drum, chassis, electrical – all broken down with reference numbers and quantities. The manual comes in English, German, French, and Spanish, so you can work with the language that makes sense on the shop floor. Every part is keyed to an exploded diagram. I’ve been burned by aftermarket “equivalent” parts that weren’t even close – this catalog ends those problems.

One trick: always check the serial number range before ordering. This catalog is valid from Werk‑Nr. H1760001. If your machine is older, you need a different book. That level of detail is why OEM documentation beats third‑party lists every time. Don’t trust a parts supplier who tells you “it should fit” – get the factory reference instead.

Models Covered: 3516, 3518, 3520, and the P Variants

The catalog covers six models: 3516, 3518, 3520, plus the padfoot versions 3516 P and 3518 P. Each has its own section with specific part numbers for the drum, vibration system, and frame. The 3520 P is also listed (though the file name includes it). If you’re maintaining a fleet of HAMM rollers, this single book saves you from juggling five separate PDFs.

The weight differences alone mean different wheel motors, different vibration cartridge bearings, and different brake parts. You can’t use a 3518 brake caliper on a 3520. The catalog shows you the interchangeability – or lack of it. For example, page 5 explains the type designation: 3516 with smooth drum, 3516 P with padfoot. That’s the kind of info that keeps you from ordering the wrong hydraulic motor.

Why OEM Parts Catalogs Beat Aftermarket Cross‑References

Aftermarket parts catalogs are often scanned from older editions, with hand‑written annotations, missing pages, or incorrect part numbers. This is a genuine 2012 release from HAMM AG. The diagrams are crisp, the part numbers are directly linked to the manufacturer’s supply chain. When you order a part from the dealer, you give them the number from this catalog – it matches their computer. No “superseded” surprises.

Another thing: aftermarket catalogs rarely include the multi‑language safety warnings. This one has proper copyright and reproduction restrictions. It’s the official document that HAMM used on the production line. If you want to know the exact O‑ring for the hydraulic pump on a 3518 P, you find it in here, not in some re‑typed Excel list.

How to Use This Catalog for 2012 TCD Engines

The 2012 models use TCD 2012 L06 engines (the “L06” indicates the emissions tier). The parts catalog separates the engine components, so you can find injectors, turbocharger parts, and cylinder head gaskets without digging through the whole book. Always start with the “Engine” group – it’s early in the catalog. The serial number range applies to the whole machine, but engine sub‑groups are often shared across models. Check the “Explanation of Type Designation” on the first few pages to confirm your engine variant.

I recommend printing out the pages for the system you’re working on – tape them to the toolbox. That way you don’t have to scroll through 710 pages on a greasy tablet. And never order a part without verifying the item number against the diagram. One misplaced digit means a different size seal.

What You Won’t Find in Aftermarket Lists

Aftermarket lists skip the binding hardware – the bolts, washers, and clips that hold your roller together. This catalog includes every nut and bolt with its grade and thread pitch. That matters when you reassemble the vibration system and need a specific M10x1.25 flange bolt. The aftermarket “kit” might give you a generic M10 bolt that strips the thread. This catalog lists the exact part number for the factory bolt. No tolerance for shortcuts.

Also, the catalog includes the official HAMG copyright and revision notes. It’s the same document the dealer uses. When you bring a part number to the counter, they recognize it immediately. That alone saves you the back‑and‑forth of “is this the right part?”.

ESX Control Override: When the Control Unit Locks You Out

Rollers with the ESX electronic control system have specific part numbers for the control unit and its harness. The catalog lists these separately, but you’ll need the service manual for diagnostic procedures. For that, check out the Hamm 3412 3625 Service Training Manual – it covers the hydraulic and electronic troubleshooting. This parts catalog gives you the number; the service manual tells you how to test it.

If you’re working on a GRW 10-24 series compactor (like a twin‑drum model), the part numbering system differs. Refer to the HAMM GRW 10-24 Series Spare Parts Catalogue for those machines. And for in‑depth hydraulic training, the HAMM Compactor Service Training Fundamentals – Section: Hydraulics – Radial Pist is a good supplement.

FAQ

Does this catalog cover the 3520 P model?

Yes. The catalog includes 3516, 3518, 3520, 3516 P, 3518 P, and 3520 P. The serial number range H1760001 applies to all.

Can I use this catalog to find torque specs for the drum housing bolts?

No. This is a parts catalog – it lists part numbers, quantities, and item references. It does not contain torque values, service procedures, or repair instructions. For torque specs you need the service manual. The parts catalog tells you which bolt to order; the service manual tells you how tight to make it. Both are necessary. I’ve seen too many techs grab the parts book and try to rebuild a drum without a service manual – that’s how you get leaks. Get the factory service manual from the same year and model range. The parts catalog is for identification, the service manual is for installation. Don’t mix them up.

Aftermarket parts lists waste your time. The OEM catalog gets you the right part number the first time. If you maintain HAMM rollers, this is the reference you need on the tablet, not a photocopy from the internet. Access the Factory Manual from AutoRepairManuals and stop guessing.
