Genie Z-30/20N, Z-30/20N RJ, Z-34/22N, Z-34/22DC 2013 Service Manual

Description

You’ve got a Genie Z‑30/20N or Z‑34/22N on the lift and you’re staring at a loose turntable rotation bolt. Pull out that aftermarket PDF you obtained from some forum and what do you get? A blurry scan from a photocopy with torque values that might be for a Ford Pinto. That’s how you strip threads and eat billable hours. The Genie Z-30/20N, Z-30/20N RJ, Z-34/22N, Z-34/22DC 2013 Service Manual is what you need on the bench. 161 pages, factory‑fresh, no guesswork.

Machine Torque Specifications – Factory Numbers You Can Trust

Open this manual to the Specifications section and you’ll find tables that Genie’s engineers validated. Machine torque specifications, hydraulic hose and fitting torque specs, plus a full SAE and metric fastener torque chart. Need the lug nut torque for the Z‑34/22DC? It’s in there. The drive hub mounting bolt torque? Page 26 has it. I’ve seen too many guys grab a generic chart and snap a bolt in half. Don’t be that guy. Use the numbers the manufacturer stamped into the steel.

Check the Lug Nut Torque Using B‑4 Procedure

The Scheduled Maintenance Procedures are laid out like a pre‑flight checklist. Checklist B‑4 says check the tires, wheels, and lug nut torque. B‑6 covers drive hub oil level and mounting bolt torque. These aren’t suggestions – they’re required steps for keeping the machine safe. The manual even tells you the sequence: verify brake configuration (B‑5), test ground control override (B‑7), test platform self‑leveling (B‑8). If you skip these, you’re liable for whatever breaks.

Fault Codes and Schematics: Factory Wiring Diagrams

When the platform stops responding, you don’t want a wire diagram that looks like a kindergarten drawing. This manual gives you electrical schematics for ANSI/CSA/AS and CE configurations, ground control box terminal strip wiring, and platform control box wiring. Fault code chart is right there – you pull the code, you look it up, you fix it. No swapping parts hoping it works.

Audience Fit – Who Benefits from This 161‑Page Manual

If you run a rental fleet or a construction equipment repair shop, this is your daily driver. Home garage enthusiast? Don’t touch a Genie scissor boom without it. The procedures assume you have basic mechanical, hydraulic, and electrical skills – but they also call out when you need dealer‑level tools. The pre‑delivery preparation checklist (before you ever sell or rent a unit) is worth the price alone.

Source Validity – Why OEM Beats Aftermarket

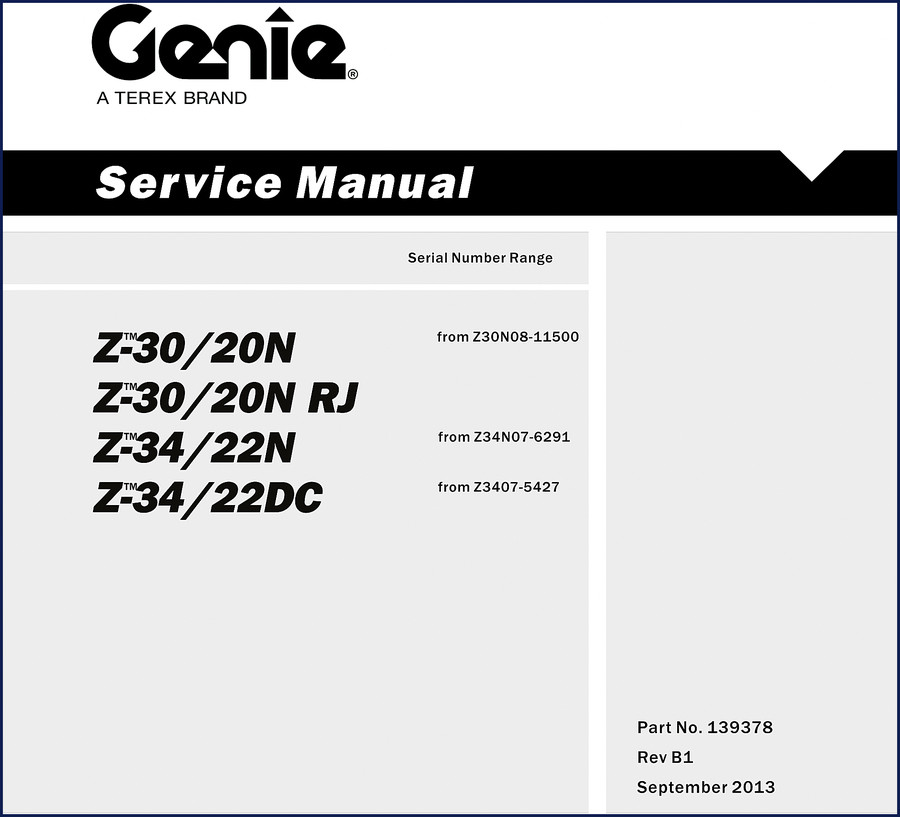

This is the official Genie document, part number 139378, revision B1, September 2013. Aftermarket reprints often miss the serial number range – this one covers Z‑30/20N from Z30N08‑11500, Z‑34/22N from Z34N07‑6291, and Z‑34/22DC from Z3407‑5427. That’s critical because earlier models use different torque values and different manifold components. You pay for accuracy once; you pay for mistakes every time.

Frequently Asked Questions

Does this manual cover the Z‑34/22DC model?

Yes, specifically includes Z‑34/22DC from serial number Z3407‑5427.

What kind of maintenance checklists are included?

Five checklists – A through E. A covers pre‑delivery and 30‑day service, B focuses on safety systems (brakes, ground control override, alarm package), C deals with platform overload (if equipped), D is annual heavy stuff like replacing drive hub oil and checking turntable bearing bolts, and E gets into hydraulic oil replacement and steering axle bearings. Each checklist references the exact torque spec or test procedure from the earlier sections. For example, B‑4 ties directly to the lug nut torque table in Specifications.

You can chase ghosts with a half‑assed PDF or you can work from the binder that Genie printed. Access the Factory Manual – get the torque right, keep the machine safe, and stop wasting time.
