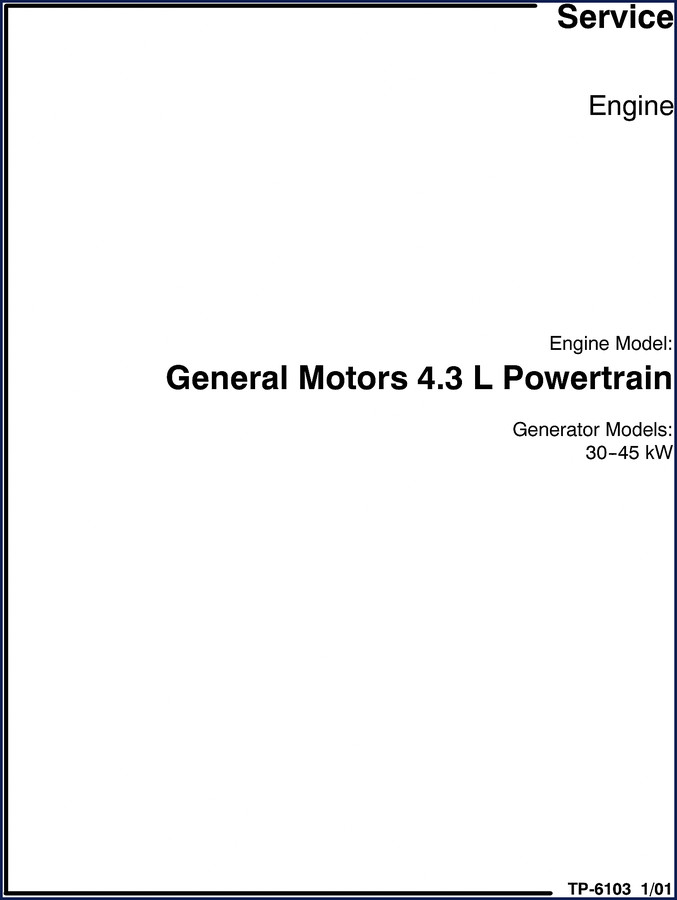

General Motors Powertrain 4.3 L Powertrain Service Manual – OEM Factory Specs

I’ve seen more than a few generator sets come through the shop with stripped head bolts and oil leaks because somebody thought they could use a generic torque chart off the internet. That kind of shortcut costs you time, money, and sometimes a whole engine. This General Motors Powertrain 4.3 L Powertrain Service Manual is the actual factory document GM Powertrain issued for their 4.3L engine used in 30–45 kW generator sets. It’s 196 pages of what GM wants you to do—not some aftermarket rewrite.

If you’re working on a generator equipped with this engine, you need the correct fastener tightening specs and diagnostic procedures. Page 6-1 has the Fastener Tightening Specifications. Page 6-4 gives you Engine Mechanical Specifications. Don’t guess when you have the OEM data in front of you.

Fastener Tightening Specifications and Engine Mechanical Data

Torque values are the difference between a leak-free joint and a call-back. This manual lists every critical fastener spec for the 4.3L Powertrain. You get the numbers from the engineers who designed the engine, not some third-party compiler. The section on “Sealers, Adhesives, and Lubricants” on page 6-9 tells you exactly which compounds to use and where. I keep a copy of that page laminated near my bench.

196 Pages of Diagnostic Information

Section 6-10 starts the diagnostic flow charts. They cover Base Engine Misfire, Compression Test, Engine Noise, Valve Train Diagnosis, Oil Consumption, Oil Pressure, and Oil Leak Diagnosis. Each procedure follows a logical sequence—no skipping steps. The manual even breaks down drive belt issues into specific sounds: chirping, squeal, whine, rumbling, vibration, and belt falling off. That kind of precision saves you from swapping parts that aren’t bad.

Drive Belt Troubleshooting: From Chirping to Falling Off

Pages 6-18 through 6-23 detail every drive belt complaint you’ll see. If you’ve got a chirp on startup, the manual walks you through belt alignment and tension checks. For a belt that falls off, you check pulley alignment and tensioner condition. No generic “inspect belt” advice—this is step-by-step with specific measurements.

What Makes This Manual Different from Aftermarket Copies?

Aftermarket manuals often reprint the data with errors or skip the safety warnings. This one has the original GM Powertrain caution page inside the front cover—it warns about using proper tools and replacement parts. General Motors Powertrain assumes you’re a qualified technician. They don’t dumb it down. If you’re a home garage enthusiast, you need to read the cautions twice. The manual also includes GM SPO Group Numbers (page 6-6) so you can order genuine parts with the correct PNs.

For other factory manuals that follow the same no-nonsense approach, check out the White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs and the Maruti MB308 Service Manual – OEM Factory Specs for Proper Repairs. If you work on heavy equipment, the Huskie HH100, HH150-2, HH300-2, HH500-2, HH750-2 Service Manual OEM Specs also has the same factory-level detail.

Use the Safe Way: Follow Factory Procedures

Before you crack a wrench, open this manual and read the diagnostic procedure for the symptom you’re chasing. The engine noise diagnostic on page 6-12 alone has saved me from unnecessary disassembly. A lot of rattles turn out to be belt tensioner issues or accessory drive pulleys—not internal engine problems. The manual’s oil leak diagnosis (page 6-16) teaches you to clean and inspect systematically. That’s how you avoid putting a seal in the wrong spot.

If you need a refresher on the basics of a Manual Transmission, that’s separate, but this manual covers the engine side completely. Understanding the whole powertrain starts with the factory data. Manual Transmission service is your own project; this manual keeps the engine running right.

FAQ

Does this manual cover the 4.3L engine used in vehicles?

No. This manual is specifically for the GM 4.3L Powertrain as used in 30–45 kW generator sets (models TP-6103 1/01). It does not cover automotive applications like trucks or vans. Different intake, cooling, and accessory configurations.

What torque specs are included?

Fastener tightening specs are listed on page 6-1. You get main bearing cap, connecting rod, cylinder head, and all critical fastener torque values. Also includes bolt tightening sequences where needed.

Can I use this manual if I’m not a professional mechanic?

You can, but read the caution page first. The manual assumes you have the right tools and training. If you’re a DIYer, take your time and follow each step exactly. Don’t skip safety procedures.

How do I access the manual?

Add it to your cart, complete checkout, and you’ll get an instant access link for the PDF. You can view it on any device.

Stop wasting time on half-baked online forums and sketchy torque charts. Access the Factory Manual and get the actual GM Powertrain data that 28-year ASE techs rely on. Your generator set deserves the right service.
