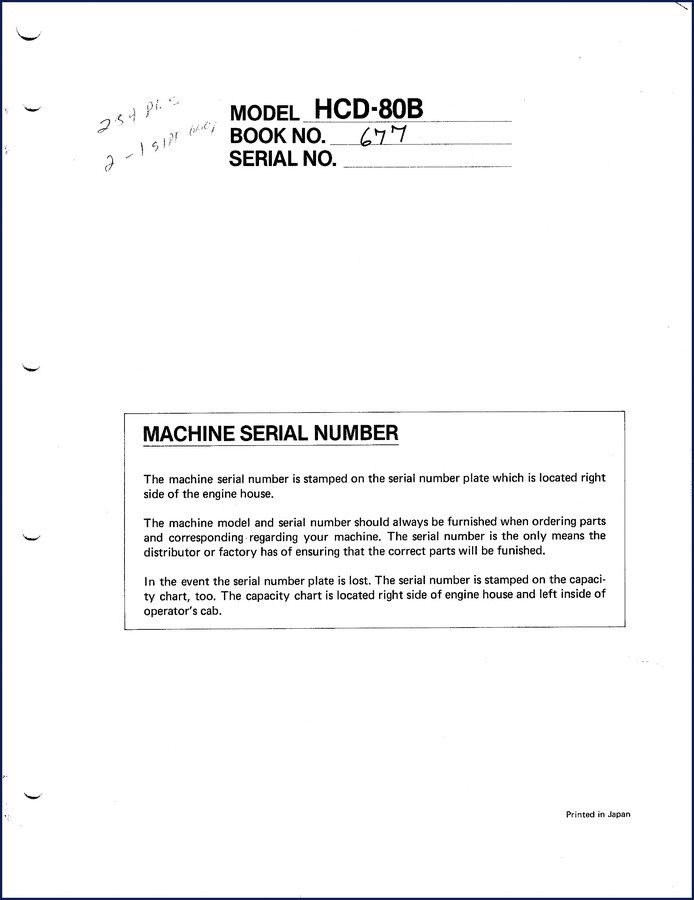

FMC Bolens HCD-80B Service Manual

You’ve got an FMC Bolens HCD-80B Service Manual in your hands – 254 pages of factory engineering, not some third-party rewrite. If you’ve ever wasted a Saturday chasing a torque spec that turned out to be for a different model, you know exactly why this matters. Aftermarket manuals love to skip the hard parts – the actual tightening values, the hydraulic schematics, the step where you lock out the suspension before you crack a fitting. This manual doesn’t skip. It’s the same binder the dealer mechanics used when this machine was new, and it’s worth every penny if you’re keeping an HCD-80B running.

Front Axle and Steering Cylinder: Getting the Torque Right

Page 3 of this service manual lays out the tightening torques for the front and rear differential assemblies – numbers like 28.4–40.8 Kgf-m on the flange bolt, with LOCTITE 242 called out on the bearing cap washer bolts. You won’t find that in a generic repair book because they don’t have the factory engineering data. The steering Cylinder section (Area 01) includes the Steering Mode Selector and the hydraulic lines that feed it. If you’re rebuilding the steering system, you need the OEM specs on the rod-end seals and the locknut torque – that’s in here, with the exact tool list you’ll need (a six-point socket, a torque wrench that reads in Kgf-m if you want to stay true to the print, and a thread-locker that matches the factory spec).

Transmission and Torque Converter: What the Manual Covers

Area 01 also has the Torque Convertor, Transmission, and Transmission Control sections. This is where most backyard mechanics get into trouble – they try to swap a seal without verifying the converter end-play, or they misread the shift linkage adjustments. The manual walks you through the Propellor Shaft removal, the Transmission Control linkage geometry, and gives the fluid capacity for the Torque Convertor in quarts (you’ll need to convert from the metric data, but the fill procedure is step-by-step). For anyone working on a Manual Transmission variant – yes, the HCD-80B uses a manual gearbox, and this manual covers it. External authority link: Manual Transmission for further reading on the technology behind these boxes.

Travel Brake System and Treadle Brake Valve: Factory Specs

The Travel Brake System section includes the Treadle Brake Valve and the Hydrovac units (both GM and ISUZU variants). If you’re replacing a Brake valve, you need the preload specs on the pedal linkage and the bleed sequence. Page 1 of the manual indexes these sections – you can jump straight to SM1-27-163.0 for the Treadle Brake Valve or SM1-27-164.0 for the Hydrovac (GM). Don’t guess at the torque on the mounting bolts; the manual gives it in the table. This is the difference between a brake system that stops predictably and one that leaks fluid on the shop floor.

Hydraulic System Adjustments: Area 07 Coverage

Area 07 is dedicated to the Procedure of Hydraulic Pressure Adjustment. If you’ve ever tried to set the relief pressure on the Swing Motor or the Winch Motor without the factory procedure, you know how easy it is to overshoot and blow a seal. The manual includes Hydraulic Schematics, the Counter Balance Valve settings, and the check-valve inspection points. The Swing Control Valve and Main Control Valve are covered in Area 01 as well, but the adjustment procedures live in Area 07. You’ll need a pressure gauge setup rated for the system – the manual tells you which port to tap and what the target pressure is in psi (convert from Kgf/cm² if necessary). No fluff, just the numbers.

Boom Assembly and Holding Valves: Area 17

The Boom Assembly section (Area 17) covers the Telescopic Cylinder, Holding Valves, and the Extend-Retract Rope System. If the boom won’t hold position, you’re likely looking at a failed Holding Valve or a leak in the Boom Hoist Cylinder. The manual shows the disassembly order for the Telescopic Cylinder, the O-ring sizes, and the torque sequence for the Holding Valve mounting. There’s also a section on the Over Hoist Alarm Device (Area 18) that tells you how to test the limit switch – a safety-critical step that no aftermarket summary includes.

Who Needs This Manual? Real-World Fit

This is for the owner-operator who pulls their own maintenance on an HCD-80B excavator or material handler. If you’re a farm mechanic or a construction-equipment technician, you’ll use this to set the Suspension Lock Cylinder preload, to adjust the Outrigger Cylinder pilot pressure, and to diagnose the Steer Control Valve drift. The manual covers both 2WD and 4WD axles, and it includes the Parking Brake Actuator and Control sections – something you can’t find in a parts catalog. The Home Garage enthusiast with a lift and a set of good wrenches can handle most of the work if they follow the manual. Beginners should start with the tire inflation section (Area 01) and work up to the hydraulic adjustments – it’s all there, but you need to read the warnings.

Source Validity: OEM vs Aftermarket

This is the original factory service manual from FMC Bolens – the same document that came with the machine when it left the line. The index shows exact part-number references (SM1-2-100.0 for front axle, SM1-19-70.0 for transmission, etc.). Aftermarket manuals often omit the Treadle Brake Valve section or give generic torque values that don’t match the thread-locker spec. Here, you get the exact numbers: flange bolt torque 28.4–40.8 Kgf-m, bearing cap washer bolt with LOCTITE 242, shim thicknesses for the differential – all on page 3. If you’re serious about not breaking a bolt or causing a hydraulic leak, you use factory data. Related manuals that pair well with this one: FMC Bolens 1666 Parts Catalog – 23 Page Factory Parts List, FMC Bolens 1660 Parts Catalog – 23-Page Factory Parts List, and FMC BOLENS Tractor 10 HP Model 1055 Parts List – these give you the part numbers to order when you find something worn.

FAQ – Common Questions About the HCD-80B Service Manual

Does this manual cover the electrical system for both GM and ISUZU engines?

Yes. Area 01 includes two separate sections: “Electrical System (for GM)” and “Electrical System (for ISUZU)”. Each has wiring diagrams, alternator specs, and starter torque values. You get both – no guesswork on which engine variant you have.

What torque units are used in the manual?

Kgf-m. The factory printed in metric torque values. You’ll need a conversion chart to imperial ft-lb (multiply by 7.233), but the precision is there. Page 3 gives an example for the front axle flange bolt: 28.4–40.8 Kgf-m – that’s about 205–295 ft-lb.

Can I use this manual to rebuild the swing motor?

Yes. Area 07 has the Swing Motor section with disassembly steps, bearing clearances, and the Counter Balance Valve adjustment. It also covers the Winch Motor. The Swing Speed Reducer & Pinion is in Area 04. You need a press and a dial indicator for some measurements – the manual lists the tools.

Where is the suspension lock cylinder procedure?

Area 01 under “Suspension Lock Cylinder” – SM1-78-22.0. It covers removal, inspection of the seal kit, and installation torque. The manual also links to the Central Valve Linkage and Lockout Lines, which you must disable before working on the cylinder. Safety first – the manual says it; I’m repeating it.

Spent too many hours hunting down a torque spec that wasn’t in the aftermarket book? This is the end of that. Order the HCD-80B Service Manual and get the factory data directly on your bench – 254 pages of FMC Bolens engineering. Access the Factory Manual now and keep your machine in spec.
