Fiatallis HD-21 1990 Parts Catalog – OEM Part Numbers for Crawler Tractor

Description

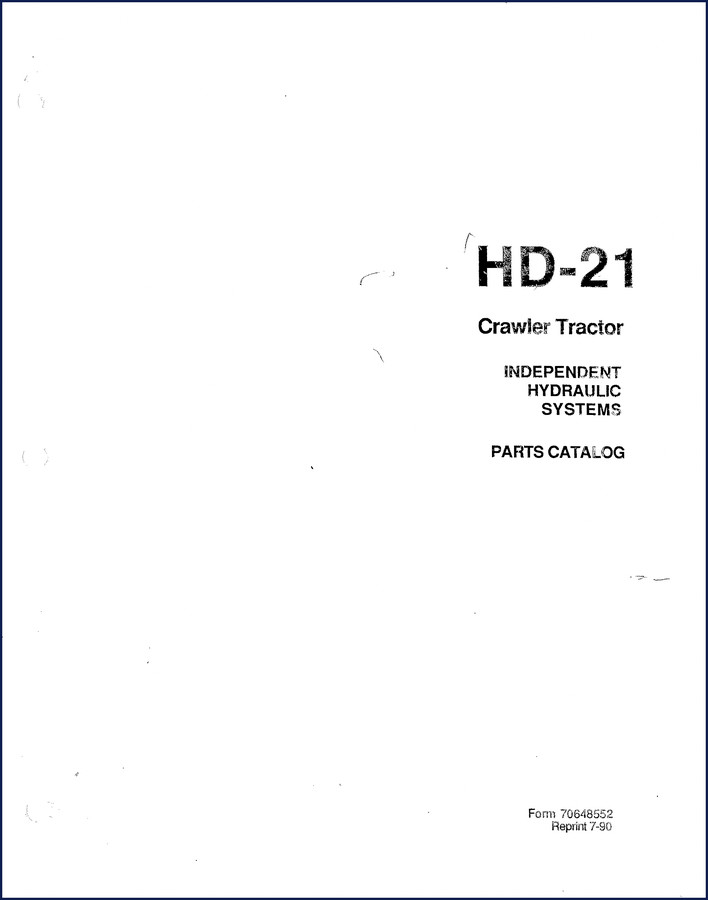

If you’re ordering parts for a Fiatallis HD-21 1990 Parts Catalog is the only document you should trust. 99 pages of factory part numbers and exploded views. No reprints, no aftermarket guesswork. Page 1 shows exactly what this catalog covers: the HD-21 crawler tractor with independent hydraulic systems. Stop wasting money on parts that don’t fit.

What This Parts Catalog Covers: Independent Hydraulic Systems

The catalog focuses on the HD-21 crawler tractor, specifically the independent hydraulic systems. That’s the main section you’ll need if you’re dealing with loader or dozer controls. The TOC lists eight sections (hd21.1 through hd21.8), each covering a different subsystem. Automotive Industry Overview is a broad topic, but for your Fiatallis, this catalog drills down to specific part numbers. You’ll find the exact hydraulic pump, valve, and cylinder numbers – not some generic cross-reference.

Page 2 Warning: Get the Equipment on the Ground First

Before you flip through the rest of this catalog, read page 2. It’s the safety page from the National Safety Council. Right there it says: “Never attempt to clean, oil or adjust a machine while it is in motion.” And directly below, a warning about hydraulically controlled equipment – lower the dozer or loader to the ground before servicing. If you need to raise it, support it with something solid, not the hydraulic cylinders. I’ve seen guys skip this step and end up in the ER. Don’t be that guy. This catalog includes that warning because Fiatallis knows accidents happen when you get in a hurry. Automotive Industry Overview shows how safety standards evolve, but this manual has the OEM warning you need.

99 Pages of Exploded Views and Part Numbers

Every one of the 99 pages in this PDF is a factory drawing with numbered callouts and the corresponding part numbers. You get the Fiatallis OEM number, not some aftermarket substitute that might be a quarter-inch off. The sections cover everything from the engine mounts to the final drives. Each section from hd21.1 to hd21.8 covers a specific system: engine, transmission, final drives, hydraulic system, and so on. The exploded drawings show every bolt, seal, and gasket with a reference number that ties directly to the parts list on the facing page. You match the number, find the part, and order it – no confusion. Fiatallis HD-9 Crawler Tractor Parts Catalog 1989 covers a smaller machine, but for the HD-21 this is the document you want.

Supplement No. 1: When Your Tractor is Prior to S/N 16001

Pay attention to the supplement. If your HD-21 has a serial number below 16001 (built before 11-77), there are revised pages. The supplement tells you to swap out pages 12 and 44 with the updated versions. This is the kind of detail you only get from an OEM factory manual. Aftermarket reprints often miss these updates. Fiatallis HD-6A/AG/6B/6E Crawler Tractor Parts Catalog is another option for different models, but for the HD-21 with the independent hydraulic system, this 1990 reprint includes all changes up to that date.

Verify Part Numbers Against Your Machine’s Serial Number

Don’t assume every HD-21 uses the same part. The catalog breaks down groups by serial number ranges. For example, the hydraulic system section might have different part numbers for machines before and after a certain break. You’ll find the serial number breaks on the section title pages. If you ignore that, you’ll order the wrong hydraulic control valve. I’ve seen it happen. Fiatallis HD-21 P Crawler Tractor Parts Catalog covers the “P” variant, so double-check you have the right one. This 1990 Parts Catalog is for the base HD-21 with independent hydraulics.

Why Does This Manual Use a 1974 Joint Venture Notice?

Page 4 includes a notice about the joint venture between Allis-Chalmers and Fiat S.p.A. from January 1, 1974. Some parts may reference Allis-Chalmers dealers. The catalog clarifies that those references are intended to mean the new Fiat-Allis organization. If you’re searching for parts under an old Allis-Chalmers number, this catalog helps you cross over to the current Fiatallis part number. That detail alone can save you hours of searching through obsolete listings.

Common Questions About the Fiatallis HD-21 Parts Catalog

Is this a repair manual or a parts catalog?

Parts catalog. It gives you exploded views and part numbers, not step-by-step repair instructions.

How do I know if this catalog covers my tractor’s serial number?

The main catalog covers HD-21 crawler tractors with independent hydraulic systems. The supplement on page 3 specifically addresses tractors prior to serial number 16001 (built before November 1977). If your tractor is after that, you still use the base catalog pages. If you have a later serial number, the 1990 reprint likely includes all updates. However, if your machine is a “P” variant, you need the Fiatallis HD-21 P Crawler Tractor Parts Catalog instead because the hydraulic system layout differs. Always verify the model designation on your machine’s data plate before ordering. The cost of the wrong part is higher than the price of this manual.

You’ve got 99 pages of factory data at your fingertips. Ordering parts for that HD-21? Don’t rely on a parts counter guy who pulls up a generic number. Access the Factory Manual and get the exact Fiatallis part number the first time.
