Fiat Powertrain Technologies Seicento Workshop Manual

I’ve been turning wrenches for 28 years, and I’ve lost count of the phone calls from guys who tore down a Seicento top end using a scanned copy of God-knows-what manual and ended up with a bent valve because the timing marks weren’t shown right. That’s why you buy a factory workshop manual – not a reprint, not a third-party compilation. This Fiat Powertrain Technologies Seicento Workshop Manual is the actual document the dealer technicians used. 291 pages of Polish engineering documentation, covering both the 899 and 1108 engines. If you’re doing anything beyond an oil change on a Seicento, this is the only reference I’d trust.

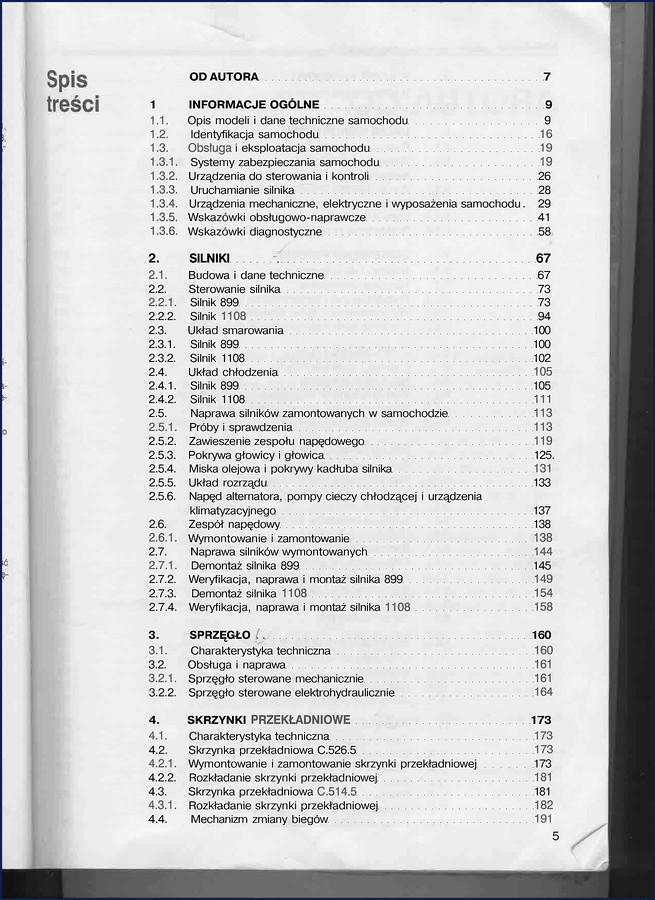

291 Pages of Factory Specs

You get the full engine section starting on page 67, with separate subsections for the 899 and 1108. Fuel injection control? Page 73. Cylinder head removal and torque sequence? Page 125. Every page is the original factory layout – not a scanned and recompressed mess. The torque tables are in Nm, so have a conversion chart handy if you’re using foot-pound wrenches. But that’s a small price to pay for knowing the number came from the people who built the engine.

Engine Overhaul Coverage for the 899 and 1108

The manual walks you through engine removal (section 2.6), disassembly (2.7.1 for the 899, 2.7.3 for the 1108), inspection procedures (they call it weryfikacja), and reassembly for both engines. You get the timing system procedure (układ rozrządu), oil pump specs, cooling system flow diagrams – all organized by engine code. Do not skip the head bolt tightening sequence. The manual shows the exact pattern and final angle. Guesswork here costs you a head gasket in 500 miles.

What Torque Values Are Listed in the Manual?

Factory torque specifications are printed for every critical fastener: cylinder head bolts, main bearing cap bolts, flywheel bolts, wheel lugs – you name it. The manual also includes the tightening sequence diagrams. Do not rely on generic manuals that give one value for all similar engines. The Seicento 899 and 1108 have different clamping loads for the head and main bearings. If you need to verify a spec, page 125 gives the head torque in Nm and the angle steps. That level of detail keeps your engine sealed and your hands clean of comebacks.

Transmission Removal and Reassembly

Section 4 covers the two gearboxes: C.526.5 and C.514.5. The manual shows you how to pull the transaxle, disassemble it, replace synchros, and reassemble. Also covers the shift mechanism. If you need background on how a Manual Transmission works, that’s fine for theory, but for actual repair you need the factory clearances and shim specs. The clutch section (section 3) splits into mechanical and electrohydraulic systems – two completely different beasts. The electrohydraulic clutch requires special bleeding procedures that no aftermarket manual gets right.

Use Only Verified Procedures – OEM vs. Aftermarket

Every aftermarket manual I’ve seen for the Seicento gets at least one torque value wrong or skips diagnostic steps. This factory manual includes section 1.3.5 (Wskazówki obsługowo-naprawcze) and 1.3.6 (Wskazówki diagnostyczne) – that’s maintenance and diagnostic hints directly from Fiat. You don’t need to guess. The source is Fiat Powertrain Technologies – the people who designed the engine. That’s the only source I’d use for a head gasket job. For other Fiat models, refer to the Fiat 500 1957 to 1973 Owners Workshop Manual for the classic, or the Fiat Bravo/Brava Technical Service Manual Volume 4 and Fiat Bravo Brava Workshop Manual Volume 4 for the later platforms. And if you want to dig deeper into transmission theory, the Manual Transmission article on Wikipedia gives a solid overview, but it’s no substitute for the factory disassembly sequence shown here.

FAQs

Does this manual cover both the 899 and 1108 engines?

Yes, each engine has its own subsection with full specs.

What is the best way to use this manual if I don’t read Polish?

The diagrams, torque values, and numeric data are language-independent. Many home mechanics use the illustrations to identify parts and torque sequences without reading the text. You can cross-reference with an English parts catalog for terminology, or use a translation app on your phone for the diagnostic hints. The page numbers and sections are identical to the original factory document, so you can match procedures visually. The most critical information – bolt torques, clearances, wiring colors – is all numeric or graphic. If you are comfortable with automotive diagrams, you will get through the job safely.

If you’re ready to work on a Seicento the right way, get the actual document. Access the Factory Manual now and keep it on your tablet or print the sections you need. You’ll have the same information the factory trained technicians used, and you won’t be guessing where things go back together.
