Fiat Powertrain Technologies PL40 Parts Catalog

If you’re ordering parts for a Fiat Powertrain Technologies PL40 and you don’t have the factory parts catalog in front of you, you’re working blind. I’ve seen guys pull a brake caliper off a PL40, measure it with a tape, and order a part that didn’t fit. That costs you a week and a restocking fee. This 130-page OEM Parts Catalog gives you the exact factory part numbers, organized alphabetically so you don’t waste time flipping through sections you don’t need. No aftermarket cross-reference guessing — these are the same pages the dealer pulls from.

Alphabetical Index: Find Any Part Fast

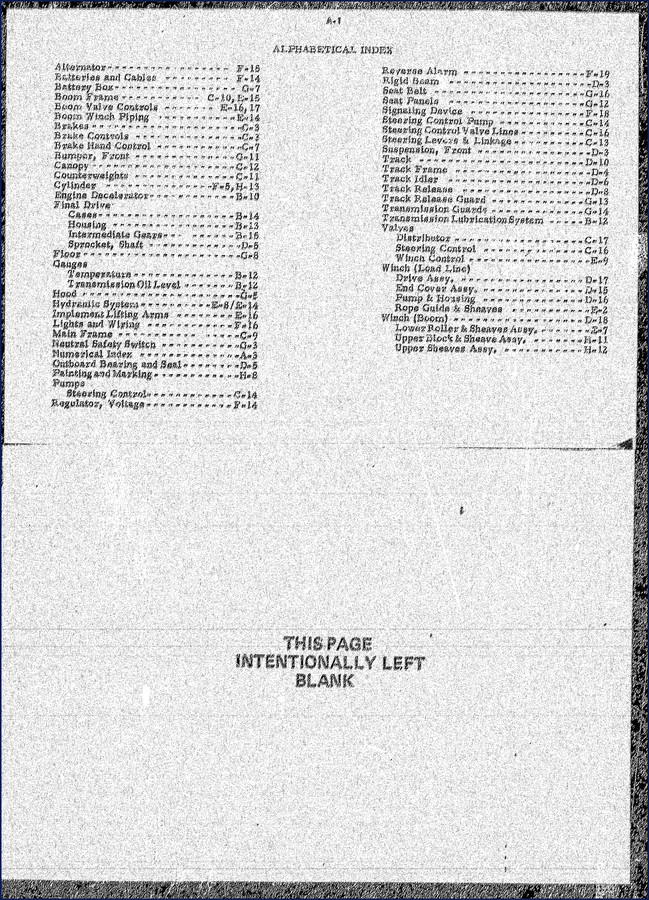

Every part in this catalog is listed A-to-Z. Need the alternator? Turn to page F-15. The Brakes assembly? Page D-3 shows the complete brake system with every component exploded. Battery box is C-7. Boom frame? C-10 and E-15. You don’t need to know what system it belongs to — just look up the part name. That saves you from hunting through 20 pages of hydraulics when you’re trying to find a steering control pump.

Brake System Parts: Page D-3

The brake section alone is worth the price of entry. Page D-3 covers the main brake assembly, brake controls are on C-4, and the power control shows up on C-6 and C-7. If you’re rebuilding a PL40 that sat in a field for years, you need to know which brake pistons and seals to order. This catalog gives you the factory reference numbers. Pair it with a full service manual — like the Fiat Powertrain Technologies 415 Parts Catalog – OEM Tractor Parts Manual for similar driveline parts — and you can order everything in one go.

7 Major System Sections Covered

This catalog breaks down the PL40 into sections labeled by letters: A through G (though A is the index). You’ll find final drive cases (B-14), hydraulic system piping (D-12, D-14), track pads (D-9), transmission gearset (B-4), and even the upper sheaves assembly (B-12). Each letter section groups related components so you can drill down without flipping all 130 pages. For a deeper look at the engine mounts and cooler lines, the Fiat 850 & 850 Germania Parts Catalog – OEM Factory Specs manual covers those older platforms.

Why OEM Parts Catalog Beats Aftermarket Cross-Reference

Aftermarket parts books list superseded numbers and sometimes flat-out wrong dimensions. This catalog is a direct reproduction of the original Fiat Powertrain Technologies document. The parts numbers haven’t been filtered through a third-party database. If you need a steering control pump (C-14) or a neutral safety switch (G-3), you get the number stamped on the factory component. For diesel engine fundamentals, read this Wikipedia article on diesel engines to understand why precise fuel-system parts matter. And if you want a more comprehensive parts list for larger FPT engines, check the Fiat Powertrain Technologies 555 Parts Catalog – 287 Pages OEM manual.

Use the Alphabetical Index to Avoid Wrong Orders

Don’t try to memorize part numbers. Write down the exact name from the machine — “Boom Swing Controls”, “Reverse Alarm”, etc. — then look it up in the index. Page references like E-16,17 mean the part spans two grid pages. The catalog uses a grid system (listed at the back) that ties each part to its illustration location. That level of detail is missing from cheap PDFs you find on forums.

You can also verify your engine variant against the factory data. The PL40 was used in various industrial and agricultural applications, so brake systems differ between early and late builds. For background on diesel engine variations, see this Wikipedia article on diesel engines.

Does this parts catalog include torque specifications?

No. This is a parts catalog, not a service manual. Torque specs require the factory shop manual.

Can I use this catalog to identify parts for my PL40 engine swap?

Yes, but you need your engine’s serial number. The PL40 had multiple sub-variants, and part numbers for components like the brake power control (C-6,7) changed during production. The alphabetical index helps you locate the correct section, but cross-reference your serial number against the part number suffixes. If you’re swapping a PL40 into a different chassis, you’ll also need the hydraulic system piping pages (D-12,14) to adapt the lines. Don’t assume the same part fits all production runs — the catalog shows the supersession history if you check the footnotes.

This catalog is the real deal — 130 pages of OEM data from Fiat Powertrain Technologies. Stop ordering parts by guess and hope. Access the Factory Manual and start ordering the right numbers the first time.
