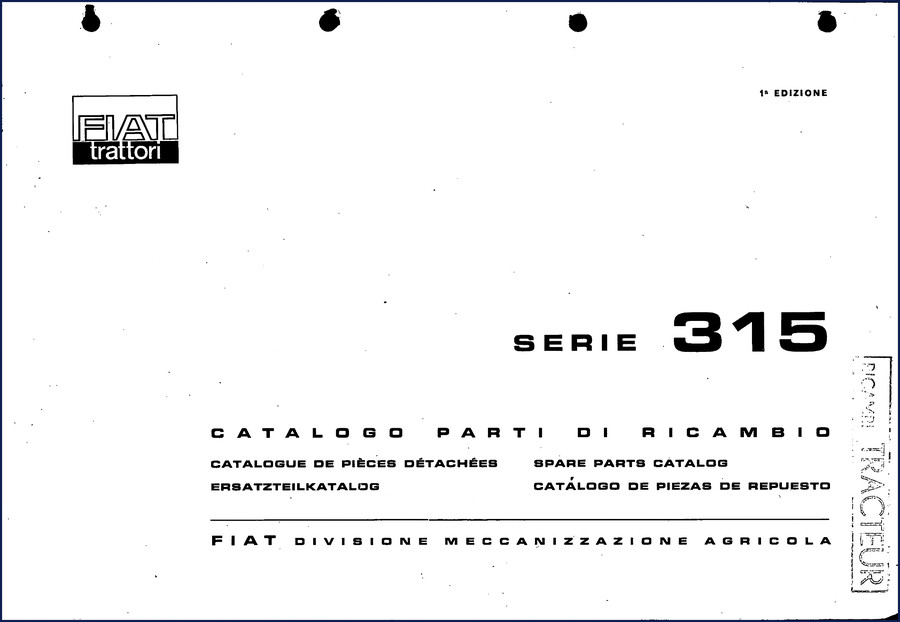

Fiat Powertrain Technologies 315 Parts Catalog

If you’re wrenching on a FIAT 315 tractor and need the right part number, aftermarket databases waste your time. You get a list of numbers that might fit, maybe not. The Fiat Powertrain Technologies 315 Parts Catalog is the factory document—319 pages of exploded views, official part codes, and ordering rules. Skip the guesswork. This is what FIAT’s own parts counter uses.

Ordering Parts: Follow the Factory Procedure

Page 5 spells out the ordering process. You don’t call your dealer with a vague description. You need the subgroup code, the part number, and the quantity. This catalog gives you each piece in its proper assembly view. No more “I think it’s the left-side thing.” You point to the drawing, read the number, and order. That’s how you keep a 315 running without returns or wrong shipments.

Use of the Catalog: Page 9 – More Than Just Pictures

Before you dig into the plates, read page 9. It explains how the subgroup numbering works—from Sgr. A0.01 to Z1.01. Each plate shows a complete subassembly with callouts. The parts list next to the drawing gives the FIAT part number, description, and quantity per assembly. Miss that page and you’ll be flipping around confused. I’ve seen guys try to use a parts catalog blind. Don’t be that guy.

Subgroup Index: Where the Real Structure Lives

The subgroup index (pages 15–18) is your roadmap. The 315 series splits into logical groups: engine, transmission, hydraulics, electrical, and so on. Each subgroup has a code like A0.01 (engine block) or Z1.01 (final drives). The catalog also includes an index on orange paper for models (page 11) so you can verify your specific tractor variant. One 315 might have a different injection pump than another. The orange list tells you which subgroup applies.

Numerical Index (page 21): Cross-Referencing Your Parts

Got a part number from a worn-out stamp but don’t know where it goes? Page 21 lists every number in numerical order with the subgroup reference. You look up the number, it tells you which plate to find the part on, and you verify the application. This is the safety net for guys who pull something off without labeling it. Also useful when you inherit a box of mixed parts from a previous repair. Cross-check before you install.

Tables Section: Bearings, Wires, and Connectors

The catalog dedicates five tables to standard hardware: bearings (page 1T), electrical components (2T), cables (3T), insulating tubes (4T), and terminals/caps (5T). These tables give you the FIAT part numbers for common consumables. If you need a wheel bearing or a wire terminal, you don’t guess. You match the dimensions from the table to your old part and order the factory piece. Aftermarket equivalents sometimes work, but the tables let you cross-reference diameter and length in inches (the catalog lists metric dimensions; convert to fractional inches for your calipers).

Why OEM Documentation Beats Third-Party Reprints

I’ve seen aftermarket parts catalogs that list “fits FIAT 315” and then show a picture that looks close but isn’t. The mounting holes are off by 2 mm. The thread pitch is different. This catalog is an original FIAT print. The part numbers are the same ones stamped on the casting. No renumbering. No “universal” substitutions. If you’re working on a 315 and you want to order parts that actually bolt on, use the factory data. Related manuals that follow the same philosophy: FIAT Serie 415 Parts Catalog (Ricambi), FIAT Trattori Serie 850 Spare Parts Catalogue, and FIAT Trattori Serie 555 Spare Parts Catalogue 2ª Edizione. For broader context on automotive industry standards, see this Automotive Industry Overview. And if you want to understand how the engine internals work, Internal Combustion Engine is a solid reference.
