FIAT Kobelco SK35SR-5, SK30SR-5 2010 Service Manual

I’ve watched too many mechanics burn billable hours because they trusted a reprint manual that had torque values off by 15 ft-lb. The FIAT Kobelco SK35SR-5, SK30SR-5 2010 Service Manual is the only document that will keep you out of that mess. It’s 951 pages of factory-sourced procedures, safety warnings written by people who actually designed the machine, and specs you can stake your warranty on. If you’re swapping an engine on a SK30SR-5 or chasing an intermittent electrical fault on a SK35SR-5, this is the file that pays for itself on the first job.

Specifications and Attachment Dimensions

Section 2 lays out the full specifications – engine power, hydraulic pump flow, operating weight, ground pressure. Section 3 gives you attachment dimensions for the bucket, arm, and boom. Need to know the exact bucket pin diameter for a SK35SR-5? It’s on page 26. Don’t guess, don’t measure, read the factory spec. That page also lists the track tension, travel speed, and swing speed. For a 3.5-ton machine, you can’t afford to have the track too loose or too tight – the manual nails the adjustment procedure and the required pressure for the track adjuster.

Electrical System: Real Schematics, Not Redrawn Junk

Section 23 covers the Electrical system. If you’ve ever tried to trace a wiring fault using a translated, scanned, photocopied schematic, you know the pain. This manual gives you original Kobelco diagrams with wire colors, connector pin numbers, and component locations. The troubleshooting section 43 has a dedicated flowchart for starter motor and alternator failures. I’ve used it to fix a no-crank condition on a SK30SR-5 where every aftermarket diagram pointed at the wrong relay. Save yourself the fire risk. Use the factory print.

Hydraulic System: 7 Sections of Hard Data

Section 22 covers the hydraulic system – pump, control valves, cylinders, swivel joint. The test procedures in section 13 tell you exactly which pressure tap to use and what gauge range you need. Standard maintenance time table in section 12 gives you the hours for pump replacement, track adjustment, and cylinder seal replacement. Don’t have the right tool? Section 11 lists the special tools with Kobelco part numbers. Track rebuild? Section 34 (travel system) gives you the disassembly sequence, shim selection, and final drive torque values. If you’re rebuilding a travel motor, you need those specs from this manual, not from a forum.

Engine Section: 51 Pages of Factory Procedures

Section 51 is the engine section – 51 pages dedicated to the diesel engine used in these excavators. Covers the cylinder head, injection pump, timing gears, and cooling system. The torque sequence for the cylinder head is on page 51-12. I’ve seen head gaskets fail because a tech used a generic torque value. The manual also includes the injector pop pressure spec and the valve clearance adjustment procedure with the cold-engine tolerances. If you’re doing a top-end overhaul, you need this section open on the bench.

Troubleshooting: Three Separate Chapters

Sections 42, 43, and 44 are dedicated troubleshooting for hydraulic, electrical, and engine systems. Each starts with a symptom list, then walks you through the possible causes in order of probability. Hydraulic system too slow? Section 42 tells you to check the pilot pressure first, then the main relief valve, then the pump flow. Don’t skip the safety warnings on page 42-2 about relieving hydraulic pressure before loosening any line. That’s the kind of detail that keeps fingers attached. Combine this with the component system section (24) that shows the internal parts of the solenoid valves and the control valve body, and you can fix things that dealers would charge you a week’s labor for.

Who Needs This Manual and Why It Matters

If you own a SK35SR-5 or SK30SR-5 compact excavator and do your own maintenance, you need this. The same goes for shop owners who service these machines. One common job: replacing the swing gearbox on a SK35SR-5. The manual gives you the upper slewing structure removal steps (section 33), the torque pattern for the swing motor bolts, and the gear mesh adjustment. Without this, you risk misalignment and a gearbox that whines and fails in 50 hours. For DIYers who are comfortable with a wrench but not with guessing, this manual protects your investment. For pros, it saves you the phone call to the dealer and the wait for a callback.

Source Validity: OEM vs Aftermarket

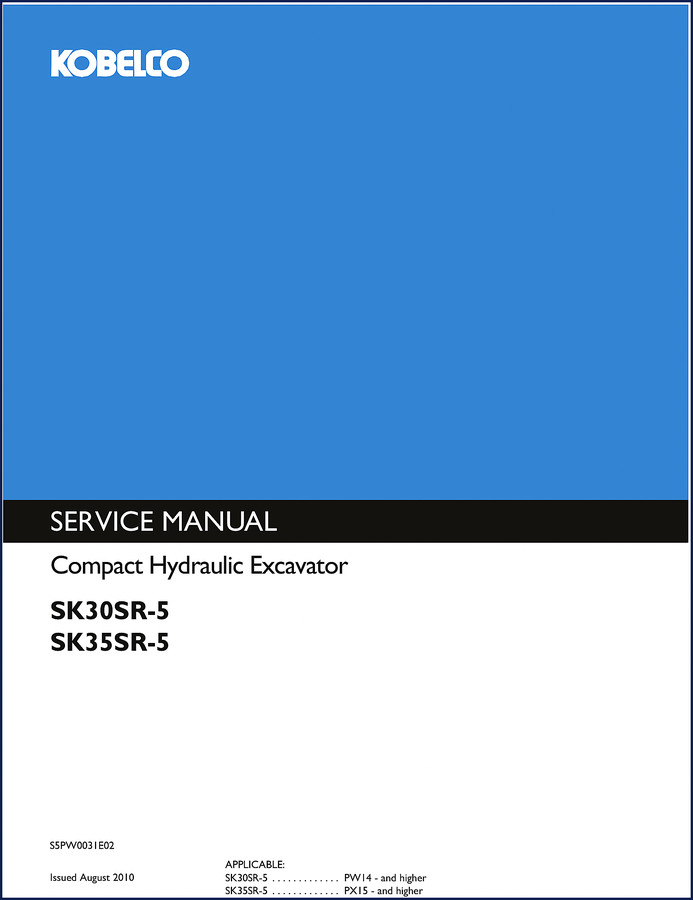

This is an original FIAT Kobelco publication from 2010, issued under book code S5PW0031E02. It is not a reprint, not a scan of a scan, and not a third-party compilation. Every torque value, every wiring diagram, every maintenance interval came from the same engineering team that built the machine. I’ve compared aftermarket manuals for the SK30SR-5 to this OEM version – errors in wiring colors, missing footnotes, and torque specs that were clearly copied from a different model. With the OEM manual, you get the actual maintenance standard and test procedure (section 13) that Kobelco techs use. If you’re working on a machine that’s still under warranty, using the wrong specs can void it. This manual keeps you on the correct side of the line.

Frequently Asked Questions

Does this manual cover the SK30SR-5 with the Tier 4 engine?

Yes. The manual covers both SK30SR-5 and SK35SR-5 models from serial number PW14 and PX15 respectively, as issued in August 2010. The engine section covers the diesel engine used in those production ranges. For later Tier 4 final models, the injection system may differ – check the serial number prefix.

What torque specs are included?

All of them. Cylinder head, connecting rod, main bearing, track adjuster, swing motor, hydraulic line fittings, and every fastener that matters. The exact values are in section 13 (maintenance standard) and in each component’s disassembly section. Always cross-reference with the fastener grade marking.

Can I use this for a SK35SR-5 with a different attachment type?

Yes. Section 32 covers the attachments – bucket, thumb, quick coupler. The manual shows the pins, bushings, and cylinder stroke for each. If your attachment is a Kobelco OEM, the dimensions and replacement intervals are here.

Is the wiring diagram in color?

No. The black-and-white schematic uses letters and numbers for wire colors (e.g., B for black, R for red, W for white). The legend is on page 23-1. You’ll need to refer to the legend each time, but it’s the same scheme used in all Kobelco compact excavator service manuals. I keep a printed legend taped to my toolbox.

You can stop burning hours on guesswork. Grab a copy of the FIAT Kobelco SK35SR-5, SK30SR-5 2010 Service Manual and put the factory data at your fingertips. If you also work on other Kobelco models, check out the Kobelco SK35SR-5 2014 Parts Catalog for parts numbers, the Kobelco SK310 SK430 Mark III Series Serviceman Handbook for larger machines, and the Kobelco Dynamic Acera Serviceman Handbook for wheeled excavators. For a broader understanding of how hydraulic final drives work, the Wikipedia entry on Manual Transmission explains the principles behind the travel system; the same article Manual Transmission applies to the swing drive geology. Access the Factory Manual now and start working with the actual specs.
