FIAT Kobelco SK35SR-3 2007 Parts Catalog

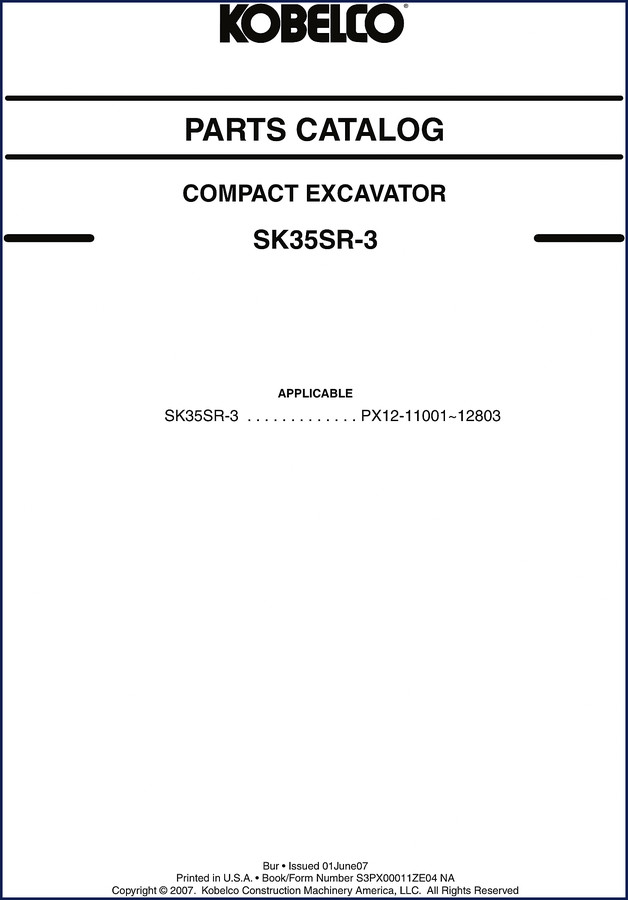

If you’re tearing down a SK35SR-3 and need the right part number the first time, chasing aftermarket cross-references will burn your billable hours. This 704-page OEM parts catalog from Kobelco Construction Machinery America gives you the exact factory breakdowns – from the engine assembly right down to the crush washers. I’ve seen techs order three different hydraulic filters because the aftermarket book had the wrong cross. That stops here. This is the genuine Parts Catalog for the 2007 model year, covering serial numbers PX12-11001 through 12803. You want the part? You get the Kobelco number, not some generic substitute.

Every section in this manual comes from the same printer that stamped the dealer service bulletins. The table of contents alone runs through 01-005 ENGINE ASSEMBLY, 01-011 FUEL LINES, 01-012 TANK ASSEMBLY FUEL (CANOPY), and 01-013 TANK ASSY FUEL (CAB). You’ll find the filter list on section 00-001, the paint color code under 00-004, and the name plate installation with part number PW22T00083F1. No missing data, no “call for pricing” footnotes. This is what the factory uses to build the machine.

Engine Assembly and Fuel Lines Coverage

The engine section (01-005) shows the complete assembly for the FIAT Kobelco power unit. You get exploded views with every bolt, gasket, and sensor identified by OEM part number. The fuel system is split between canopy and cab variants – section 01-011 FUEL LINES, 01-012 TANK ASSEMBLY, FUEL (CANOPY), and 01-013 TANK ASSY, FUEL (CAB). Each line, fitting, and clamp is listed with its factory spec. Need the fuel return line for a cab model? The part number is in the book. No guesswork on thread size or bending shape.

Filter List and Paint Color Specs

Section 00-001 is the filter list – oil, fuel, hydraulic, air. It gives you the exact Kobelco filter number. Not a “use this cross-reference” table. This is the same list the dealer pulls up when you walk in with a serial number. Section 00-004 covers paint color. If you’re touching up a boom or a counterweight, you need the right shade. The catalog lists the paint code, so you can order touch-up from the factory supplier. No mixing paint from a chip you found on the internet.

7 Key Assembly Sections for the SK35SR-3

The manual is divided into groups: Upper frame, lower, boom, cab, electrical, hydraulic lines. Each group has multiple sub-sections. For example, the upper frame group (01-series) includes: 01-001 FRAME ASSY, UPPER; 01-002 BRACKET ASSY, SWING; 01-003 BRACKET ASSY, SWING (NIBBLER & BREAKER); 01-004 COUNTERWEIGHT INSTAL; 01-005 ENGINE ASSEMBLY; 01-006 ENGINE INSTAL; 01-007 RADIATOR INSTAL; 01-008 RADIATOR ASSY; 01-009 CLEANER ASSEMBLY, AIR; 01-010 MUFFLER ASSEMBLY. You get the idea. Every assembly has its own exploded diagram and part number list. The hydraulic lines are broken out by location – pump, swing, upper, return, and remote control lines for dozer, nibbler, breaker. That level of detail saves you from ordering a hose that’s six inches too short.

Why OEM Parts Catalog Beats Aftermarket

Aftermarket parts catalogs lift diagrams from a different machine and call it “compatible.” That’s how you end up with a swing motor seal that leaks after 20 hours. This manual is the original OEM print from Kobelco Construction Machinery America, LLC, copyright 2007. It carries the revision history on page 2 – S3PX00011ZE04 NA, issued 01June07. The book/from number is S3PX00011ZE04 NA. Every part number is verified against the production line. When you order a part using this catalog, it fits. I don’t care if you’re a shop owner in San Antonio or a field mechanic in Wyoming – this is the only source I trust for the SK35SR-3.

Audience Fit: Who Needs This 704-Page Manual?

This is for anyone who owns or works on a FIAT Kobelco SK35SR-3 compact excavator. Professional mechanics will use it to pull part numbers for warranty claims. DIY owners can order the right parts without overpaying at the dealership. The manual assumes you know how to read an exploded view – it does not hold your hand through disassembly. If you’re a beginner, pair this catalog with the factory service repair manual (not included) to get torque specs and procedures. The parts catalog is the companion that tells you what to buy, not how to install it.

Related manuals that cover other models in the FIAT Kobelco line: FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM, FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual, and FIAT Kobelco LK650-II 1992 Parts Catalog – OEM Factory Specs. For background on how parts catalogs contribute to the Automotive Industry Overview and the Internal Combustion Engine supply chain, those links provide broader context.

Frequently Asked Questions

Does this manual include the engine overhaul torque specs?

No. This is a parts catalog, not a service manual. Torque specs are in the factory repair manual.

Can I use this catalog to order parts for a 2008 SK35SR-3?

The 2007 edition covers machines built through serial number PX12-12803. If your machine is later than that or has a different serial prefix, some part numbers may have been superseded. Kobelco made minor revisions after 2007, especially to the hydraulic lines and cab assemblies. Check your serial against the applicable range listed on page 1. If your serial falls outside PX12-11001 through 12803, you need the later edition. That said, many components like engine parts and filters carry forward unchanged – you can verify by cross-referencing the part number with a dealer. But for absolute accuracy on a 2008 model, I would buy the 2008 catalog.

If you need to find the correct fuel filter or hydraulic seal for the FIAT Kobelco SK35SR-3, stop relying on aftermarket tables. Get the factory part number straight from the source. Access the Factory Manual and keep it on your tablet or printed in the tool box. It’s 704 pages of raw OEM data – no guesswork, no cross-references, just the part.
