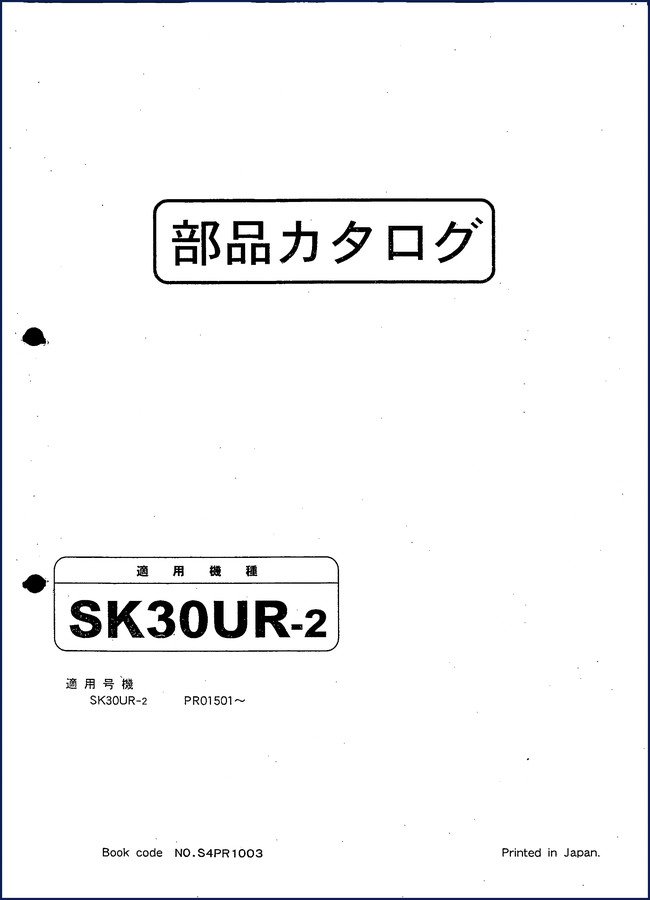

FIAT Kobelco SK30UR-2 Parts Catalog

You’ve got a FIAT Kobelco SK30UR-2 backhoe loader that needs a part. You look up a number online, order it, and it doesn’t fit. Wasted time, wasted money. I’ve seen it happen more times than I can count. The difference between a part that fits and one that doesn’t is often a single digit in the part number or a serial number range you didn’t check. That’s where a genuine OEM parts catalog like this FIAT Kobelco SK30UR-2 Parts Catalog stops the guessing. This is the same binder the dealer’s parts counter uses. 339 pages of factory-original data, no aftermarket shortcuts.

Aftermarket catalogs love to leave out the small print — like the compatibility arrows that tell you if part A can be swapped for part B, or the notes that say a certain component is only sold as an assembly. This OEM catalog does not skip that. It shows you exactly which part numbers belong to your machine based on the machine serial number range. Don’t know your serial number? You’ll find a blank space on page 2 to write it down before you start ordering. That’s not a suggestion — that’s how you avoid ordering a 24100U341F1 coupling when you actually need the superseded 24100U341S1.

Parts Breakdown and Illustration Layout

Each major assembly — boom, arm, bucket, dozer, track frame — gets its own exploded view. The general drawing on page 5 labels the main groups so you can find the right section fast. Inside each section, the parts are organized by item number (目番) with a table that lists part number, part name, quantity per machine, and applicability. If you see an arrow connecting two parts in the Remarks column, those parts are interchangeable. If you see a star (★) next to a part number, that individual piece is not available; you have to order the whole assembly. That detail alone has saved me from ordering a single capscrew when the supplier would have sent me the entire coupling hub anyway. You pay for that knowledge once, not twice.

What Information Do You Need to Order Parts?

Page 3 spells out the six things you must give your dealer: machine model (e.g., YR000105), machine or engine serial number (219230), part number (YR20M01020P1), part name (connector), quantity, and shipping address. Ignore the machine serial number and you risk getting parts from a different production run. The catalog’s Applicable column tells you which serial number ranges each part fits. For example, many parts in the power take-off assembly list “YR00101~” — that means the part applies from serial number YR00101 onward. If your machine is earlier, you need a different item. Aftermarket lists never show that.

Related manuals you might need: KOBELCO SK20UR/SK30UR-2/SK50UR-2 Training Text gives you service and troubleshooting procedures beyond parts identification.

339 Pages of FIAT Kobelco SK30UR-2 Parts Data

Every page is original OEM content printed in Japan by FIAT Kobelco. The catalog covers the full machine: engine bay (except internal engine parts — those are in a separate engine section), hydraulic pump, control valve, swing motor, travel motor, upper rollers, track frames, dozer blade, outriggers, canopy, battery, monitor panel, and all hardware. The parts numbering system uses the FIAT Kobelco prefix (e.g., YR00F0000F1). If you need to cross-reference a part, use the index at the back (parts number index) — it lists every number in alphabetical/numerical order with the page you’ll find it on. No guessing which page the boom cylinder seals are hiding on.

For other FIAT Kobelco models, check these OEM catalogs: FIAT Kobelco ED150, ED150-IE 2013 Parts Catalog OEM and FIAT Kobelco ED150, ED150-2 2009 Parts Catalog OEM Manual.

Check the Serial Number Range Before You Order

Write your machine serial number in the blank on page 2. Then, for every part you look up, confirm that your serial number falls within the range listed in the Applicable column. If there’s no entry, the part is common to all serial numbers for this model. If there is a range, respect it. A hydraulic pump for a later serial machine may not have the same port orientation as an earlier one. I’ve watched guys bolt on the wrong part because they ignored that column. Don’t be that guy.

The catalog also includes compatibility arrows (↔) in the Remarks column. That means two parts are interchangeable — you can use either one. If an arrow points from A to B with A crossed out, you must use B and discard A. That is a supersession. The aftermarket catalogs rarely show supersession history. This one does.

FIAT Kobelco SK30UR-2 Parts Catalog: Genuine OEM vs Aftermarket

Aftermarket parts catalogs are often re-keyed from this exact document, but they drop the notes, drop the Japanese text that clarifies group numbering, and sometimes transpose digits. I’ve seen a aftermarket list call for a “2412BU128S5” socket bolt when the real number is “2412BU128S5” — but they left off the dash that tells you it’s a M15×35 capscrew. The OEM version here prints the part names in both English and Japanese. The original Japanese text (部品カタログ) is preserved because the illustrations and part call-outs are language-independent, but the English translation is right there in the same table. If your dealer has a bilingual counter person, they’ll appreciate having the Japanese reference too.

For background on construction equipment and the automotive industry, see Automotive Industry Overview. For more on the diesel engine that powers your machine, Internal Combustion Engine provides general operating principles.

Frequently Asked Questions

Can I use this catalog for engine parts?

No. Engine parts are in a separate engine section. This catalog covers chassis and hydraulic components.

How do I know if a part number is still available?

The catalog uses symbols to indicate availability. A star mark next to the part number means that specific component is not supplied individually; you must order the assembly. Also, interchangeability arrows show when one part can replace another. Always check the ‘Remarks’ column for notes. If a part is superseded, the catalog may show an arrow linking the old number to a new one. But keep in mind that FIAT Kobelco may have made revisions not yet printed in this edition. Contact your dealer for confirmation if you’re unsure.

This is the document that keeps your SK30UR-2 running without the parts counter headache. No reprints, no generic scans — it’s the original FIAT Kobelco Parts Catalog in PDF form, full 339 pages, book code S4PR1003. Access the Factory Manual now and start ordering parts the right way.
