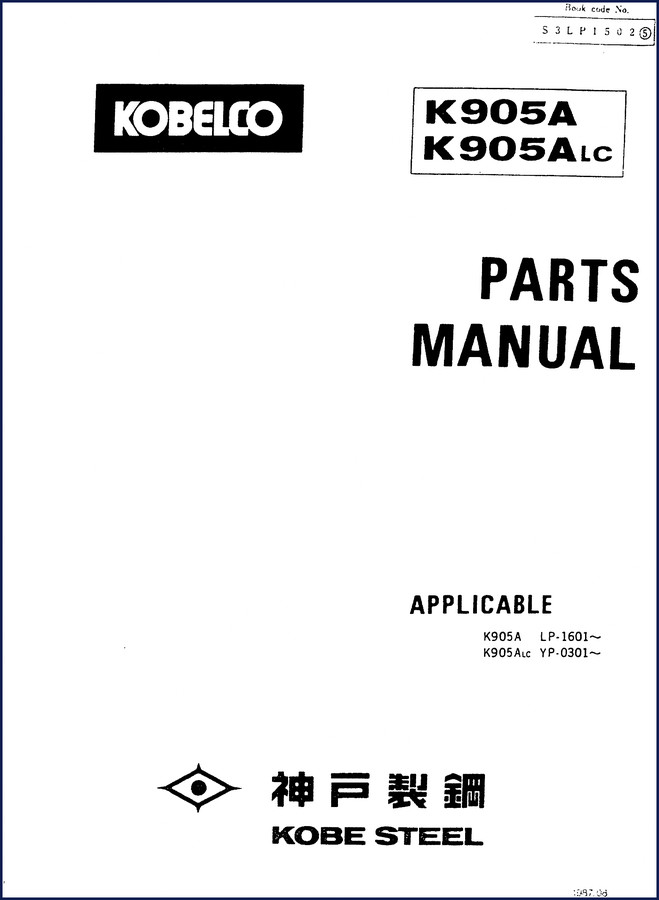

FIAT Kobelco K905A, K905ALC Parts Catalog

If you have ever ordered a part for a backhoe loader using a generic aftermarket catalog, you know the frustration: you get a box with something that sort of fits, but the bolt holes don’t line up. The tension you feel when the machine is down and you are staring at a wrong part – I know it. That is why you need a factory parts catalog, not a reprint or a third-party compilation. This is the exact FIAT Kobelco K905A, K905ALC Parts Catalog – 404 pages of OEM part numbers, group breakdowns, and exploded views that match what was on the assembly line at Kobelco.

FIAT Kobelco K905A, K905ALC Parts Catalog: Factory Group Breakdown

Open this manual and you will find sections like CAB & GUARD GROUP, TANK ASSY. HYDR., FILTER ASSY., and COUNTER WEIGHT. Each section contains exploded diagrams with numbered callouts. The part number next to each item is the one that left the Kobelco factory. You will also see a SPECIFICATION BY CUSTOMERS table near the front – that tells you which parts apply to your specific machine based on serial number ranges. For this manual, the K905A starts at LP-1601 and the K905ALC starts at YP-0301. Use that table before you order anything.

What Does the 404-Page Catalog Include?

Every major assembly on these backhoe loaders is covered: upper frame, counterweight (with and without silence versions), rear hatch, hydraulic tank, fuel tank, filter assemblies, and the entire cab and guard structure. Engine parts are not in this catalog – the preface clearly says to see a separate engine parts manual. That means you are getting a focused, precise listing for the chassis, hydraulics, and cab. No fluff, no guesswork. The 404 pages are packed with exploded views and part tables. Each part number is cross-referenced to the customer specification so you order the right variant for your machine.

Get the Right Part Number the First Time

The preface includes a sample order form: model, machine serial, part number, part name, quantity, and delivery address. Use that format when you call your dealer. This catalog gives you the part number from the factory drawing – not from a database that might have typos. On page 2 you will see the copyright statement from Kobelco Construction Machinery America, LLC. That tells you this is the real document, not a photocopy from 1995. If you own a K905A or K905ALC, this puts you back in control of your parts ordering.

3 Reasons to Choose OEM Over Aftermarket Parts Catalogs

1. Accuracy. Aftermarket catalogs often merge multiple model years or miss superseded part numbers. This manual was printed by Kobelco with the engineering drawings. 2. Lifetime reference. The document is dated 2003 but remains the definitive source for these specific serial ranges. 3. Safety. Wrong parts can cause hydraulic leaks or structural failures. The OEM exploded views show you exactly how things go together. This manual is not a reprint – it is the original factory output.

Parts Identification and Group Breakdown Sections

Skim the contents and you will see groups like UPPER GRIP, UPPER FRAME (FIT FOR SILENCE), COUNTERWEIGHT ASSY. (GAIN), and REAR HATCH (FOR SILENCE). Each group has its own part number index. For example, the CAB & GUARD GROUP includes INSTALL CAB and CAB ASSY. variants. If you are trying to find a specific bracket or seal, you start at the group level, then locate the exploded view. It saves hours of hunting. I have used these manuals for years – they beat any online parts lookup when you need the raw factory data.

OEM Source: Not an Aftermarket Compilation

Right on page 2: “Any use of editorial or pictorial content is strictly prohibited without express written permission from Kobelco Construction Machinery America, LLC.” That is the stamp of an authentic OEM document. Third-party sellers cannot legally copy this and sell it. You are getting the same book that dealers use. For context, the K905A uses a diesel internal combustion engine Internal Combustion Engine. Understanding that wider machinery reliability perspective helps Automotive Industry Overview.

Does this manual include engine parts?

No. The preface directs you to a separate engine parts manual. This catalog covers everything else – chassis, hydraulics, cab, and guards.

How do I interpret the part number scheme when ordering?

Use the “SPECIFICATION BY CUSTOMERS” table in the front of the catalog. Match your machine serial number (K905A LP-1601~ or K905ALC YP-0301~) to the correct variant. Then locate the exploded view for your group, note the part number, and include all six fields from the sample order form: model, serial, part number, name, quantity, and delivery address. This ensures the dealer sends the right component. If you ignore the customer specification table, you might get a part meant for a different configuration – for example a counterweight with silence when yours does not have it.
