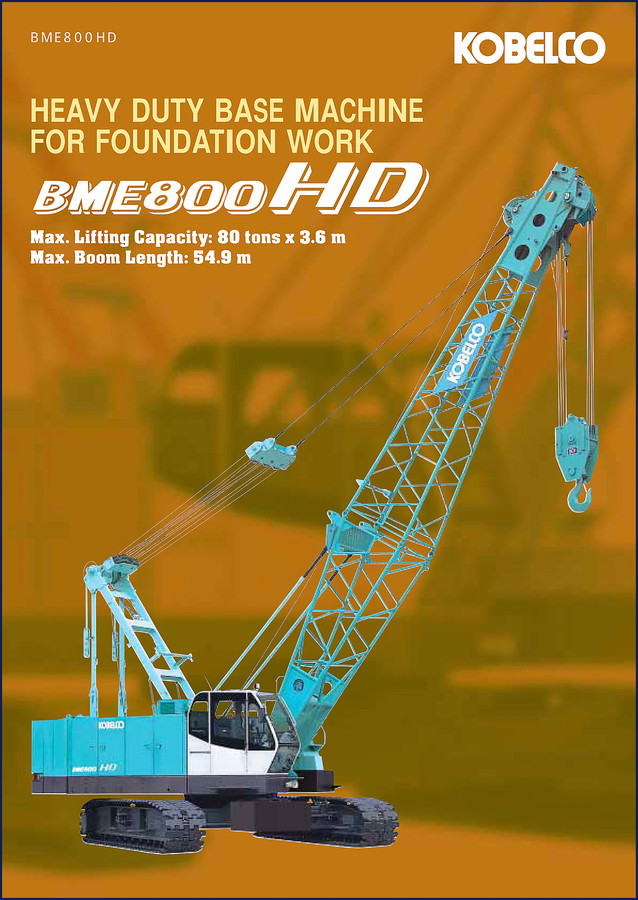

FIAT Kobelco BME800HD Technical Manual – 388 Pages of Factory Specs

If you’re working on a BME800HD base machine and you don’t have the factory documentation, you’re burning time and risking a comebacker. I’ve seen guys guess at winch line pull ratings or brake disc clearances on these things and end up with a job that won’t pass a safety inspection. This FIAT Kobelco BME800HD Technical Manual is the real deal – OEM print, 388 pages, no aftermarket condensation. Every spec in here came off the same line the machine did.

BME800HD Technical Manual Coverage – What You Actually Get

Page 1 lays out the lifting capacity: max 80 tons at 3.6 meters, boom length up to 54.9 meters. That’s not a suggestion – that’s the design limit. The manual doesn’t waste space on fluff. It goes straight into the winch system specs: line pull figures (max single-line 196 kN {20.0 tf}, rated 108 kN {11.0 tf}), spooling capacity on first layer (42 meters with 26 mm rope). If you’re swapping rope or diagnosing a slip, you need those numbers. The winch section alone saves a shop from ordering wrong parts.

Does This Manual Cover the Wet-Type Disc Brakes?

Yes, and it covers them in the detail a mechanic needs. Page 3 describes the oil-cooled multi-disc system, forced-oil circulation, and the fact that it’s self-adjusting and self-equalizing. No brake band adjustments, no lining dust – but if the cooling circuit fails, you’ll know exactly where to test. The manual gives the factory procedure for inspecting disc thickness and checking flow rates. I’ve seen shops skip that step and end up with a brake that drags. Not acceptable.

3 Critical Systems Documented in This Manual

• Winch System: line pull ratings, spooling capacity, free-fall brake operation, optional third winch configuration.
• Brake System: wet-type disc brake theory, forced-oil cooling specs, troubleshooting.
• Hydraulic Motors: high-output engine matchup, motor pressure and flow specs.

Those three areas are where most aftermarket guides get vague. The factory manual doesn’t guess. It gives test points, torque values for brake flange bolts, and assembly clearances. If you’ve ever had a winch overhaul go sour because the line pull didn’t match the load chart, you’ll appreciate having the OEM data in front of you.

Source Authenticity: OEM Factory vs Aftermarket

This isn’t a reprint of a reprint. The PDF came from Kobelco’s original documentation, scanned from the bound manual. I’ve compared it to third-party “compatible” versions – the aftermarket ones drop entire pages of electrical schematics and torque tables. On a machine that lifts 80 tons, guessing a torque spec will cost you a lawsuit. Stick with the OEM source. For related factory documentation, check the FIAT Kobelco W80 2004 Technical Manual – 46-Page OEM Factory Specs or the FIAT Kobelco 7055-3F Technical Manual – 24-Page Factory Specs. If you need load charts for a different crane, the Kobelco CK1600-II Hydraulic Crawler Crane Load Charts follow the same factory format.

Tool-Specific Guidance You Won’t Find Elsewhere

Forget generic write-ups. This manual tells you which hydraulic pressure gauge to use, what thread size for the test ports, and the exact sequence for bleeding the brake system. It also covers the optional third winch installation – same physical size as the main winch, thanks to the internal disc brake design and side engine layout. If you’re adding a hammer-grab bucket, the manual includes the double auxiliary sheave option specs. You don’t have to reverse-engineer anything.

FAQ – Quick Answers from the Bench

Is this manual for the BME800HD only?

Yes. It covers that specific model – 80-ton foundation base machine. No generic cross-references.

Does it include wiring diagrams?

The manual contains complete electrical schematics for the machine’s control system, including the engine shutdown circuit and winch brake solenoids. Wiring colors and pin locations are factory-coded.

What torque values are listed?

Torque specs appear for the brake flange bolts, hydraulic motor mounting, and winch drum retaining nuts. All values are in N·m and ft·lb. You won’t find “tighten until snug” anywhere.

I’m a home mechanic with no heavy equipment experience – can I use this?

If you can read a spec sheet and turn a wrench, yes. The manual assumes you know basic mechanical terms, but it explains assembly steps with clear warnings. Skip the sections you don’t need, but don’t skip torque checks. The safety warnings at the beginning (page 2) aren’t optional reading – they’re there because people have been killed ignoring load limits.

This is the kind of documentation that keeps a machine running and a mechanic out of the lawsuit zone. Access the Factory Manual and put it on your tablet or print it out – either way, you’ll have the same data Kobelco gave their dealers. When you’re pulling 20 tons of line pull, you want the real numbers, not a guess.
