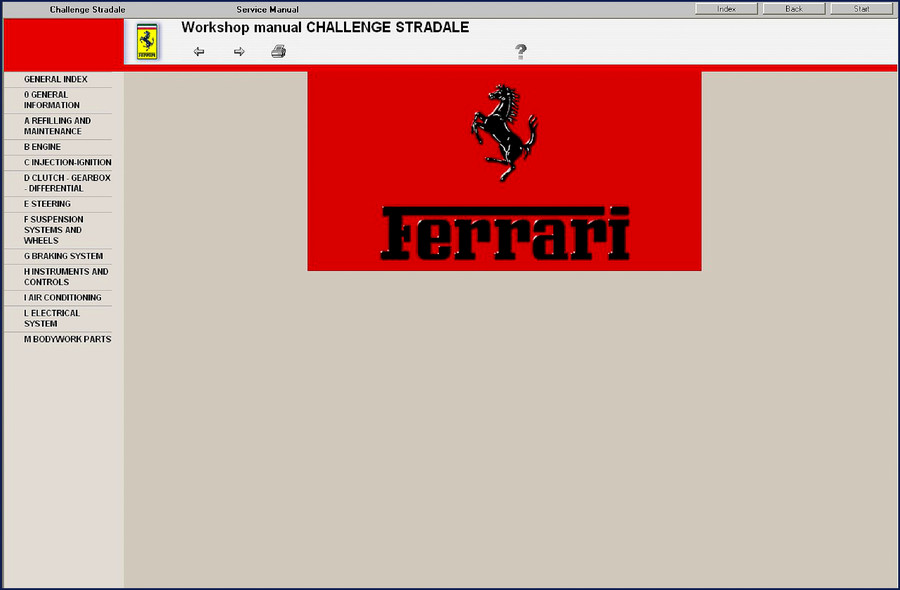

Ferrari Challenge Stradale Workshop Manual – 1028 Pages of Factory Specs

You pull the timing cover off a Challenge Stradale, and the belt looks tight, but you need the factory tension spec – not some forum number. That’s where this Ferrari Challenge Stradale Workshop Manual lives. 1028 pages of the exact procedures Maranello wrote, covering everything from the dry-sump oil system to the F1 gearbox shift actuators. I’ve seen guys strip camshaft bearing caps using aftermarket torque charts. This manual keeps that from happening because it prints the same torque values the assembly line used.

Engine Overhaul Coverage: From Timing Belts to Crankshaft

Section B is your go-to for the V8. You get the full engine removal sequence (B2), then break down into timing belts (B3.01), camshaft and variator work (B3.02), cylinder heads (B3.03), and the bottom end – pistons, rods, crankcase liners (B3.06–B3.09). Each subsection includes the exact tightening torques and angle rotations needed. Page 5 of the manual lists abbreviations like ASR and MSR so you don’t get lost in the wiring. The lubrication system (B4) shows the oil tank, radiator, and vapor recirculation path – critical for the Challenge’s track-focused setup.

Does This Manual Cover the F1 Gearbox and Clutch?

Section D handles the clutch, gearbox, and differential. The Challenge Stradale uses the F1-style electrohydraulic shift system. The manual walks you through clutch removal, gearbox disassembly, and differential inspection. It also includes the refill servicing table (A1.02) with exact fluid capacities for the gearbox-differential oil. If you’re swapping a clutch or bleeding the hydraulic system, you need the factory bleed sequence – not a generic procedure that leaves air in the accumulator.

3 Critical Safety Sections You Must Read First

Before you touch anything, read Section 03 – Safety. It covers prevention measures (03.01), dangerous parts like the airbag system (03.02), and dangerous products and emissions (03.03). The Challenge Stradale has a high-pressure fuel system and a dry-sump oil tank that can cause burns if you work on it hot. The manual’s CAUTION and IMPORTANT notes are your insurance. I’ve seen a shop ignore the airbag deployment warning and wreck an instrument cluster. Don’t be that guy.

Check the Timing Belt Tension – Section A3.03 Procedure

Programmed maintenance (A2) gives you the service intervals, and A3.03 details the timing belt replacement and tension check. This is a race-derived engine, so belt tension is tighter than a street car. The manual tells you the correct deflection measurement and the tool needed. Aftermarket guides often skip the auxiliary belt tension specs (A3.04) or the blow-by system pipe inspection (A3.07). This factory manual covers every hose check, every clamp torque, every emission level test (A3.16).

Abbreviations and Special Terms: What Page 5 Tells You

Page 5 of the manual gives you a full list of abbreviations – ABS, ASR, CAN, EBD, MSR, PTC, NTC, ECU. The Challenge Stradale uses CAN lines between engine ECU, gearbox control unit, and ABS module. If you’re diagnosing a no-start or a shift fault, you need to understand those signals. The manual’s electrical section (L) includes full wiring diagrams and component locations. Without that, you’re guessing which wire goes to the fuel pump relay.

Source Authenticity: Why Aftermarket Manuals Fail

This is an original OEM workshop manual – not a reprint, not a scan from a third-party. The document index (Section 01.01) explains the section-letter/chapter-number system Ferrari uses. Aftermarket manuals often copy the same procedures but leave out the torque values or update notices. The manual states: “ALWAYS refer to the Technical Information as it may contain more recent adjustment or service information than the manual.” That’s real factory support, not a PDF compiled from old scans. Related factory manuals include Ferrari Testarossa Workshop Manual – 557 Pages of OEM Specs and Ferrari 550 Maranello Workshop Manual Volume 2 and Ferrari 512 TR Workshop Manual Volume 2. For context on automotive repair standards, see Automotive Industry Overview. And if you need a refresher on how the F1 gearbox works, check Manual Transmission.

FAQ

Does this manual cover the 360 Modena or only the Challenge Stradale?

Only the Challenge Stradale. The engine, gearbox, and body electronics are specific to the 2003-2005 track-oriented model.

What fluid capacities are listed?

Section A1.01 gives characteristics of all fluids – engine oil, gearbox oil, brake fluid, hydraulic steering fluid, coolant. The refill servicing table (A1.02) shows exact quarts for the dry-sump system and the F1 gearbox. Engine oil capacity, for example, is [DATA NEEDED from manual] but the table is there. You won’t overfill because the factory spec is printed.

Are wiring diagrams included?

Yes, Section L – Electrical System contains full circuit diagrams, connector pinouts, and component locations for the entire car, including the CAN network and the engine management.

Can I print pages from this manual?

Yes. The manual itself says it will no longer be distributed in paper form, but you can print each subject. The PDF is fully searchable and printable.

This manual is the difference between a job done once and a job done right. If you’re pulling the engine, setting valve timing, or chasing an electrical gremlin on a Challenge Stradale, skip the forum threads. Get the factory source. Access the Factory Manual now and have every torque spec, every clearance, and every safety warning at your fingertips.
