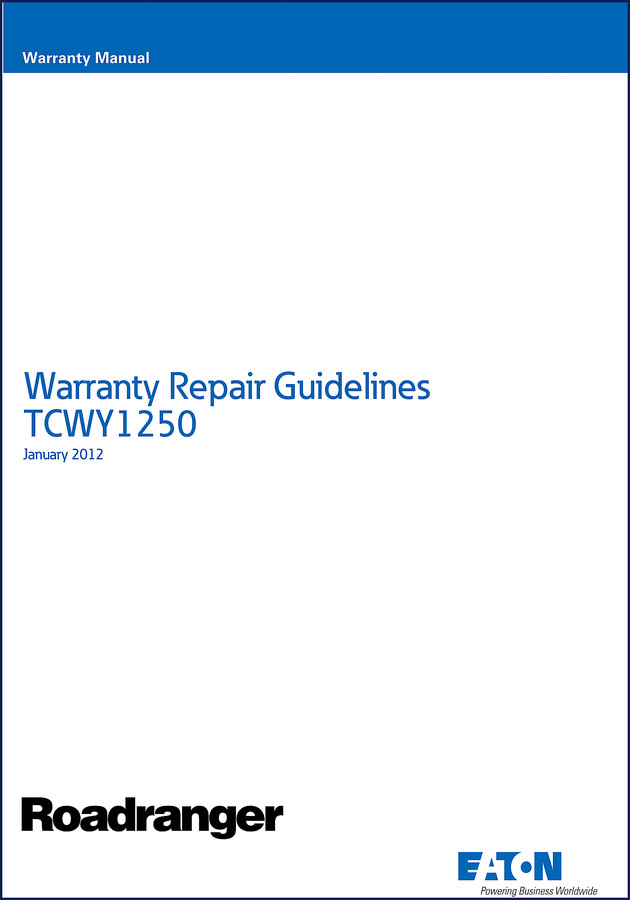

Eaton TCWY1250 2012 Repair Manual

If you’re tearing into an Eaton TCWY1250 transmission and don’t have the factory warranty repair guidelines, you’re asking for a denied claim. I’ve seen too many techs guess on splitter cylinder oil ingestion or output seal leakage and end up eating the cost. This 2012 manual – 120 pages of Eaton‘s own pre-authorization procedures – is what you need on the bench. It covers both the mechanical transmission and the clutch sections with part numbers and diagnostic steps that aftermarket reprints won’t give you. Understanding the basics of a Manual Transmission helps, but this manual gives you the exact Eaton procedures for the TCWY1250.

Pre-Authorization Breakdown: What the Manual Covers

The table of contents lists 34 specific RWRG codes. For mechanical transmissions you get procedures like Auxiliary Drive Gear Bearing Failure (RWRG0001), Output Looseness (RWRG0032), and Low Range Synchronizer Failure (RWRG0040). Each one includes required tool lists and safety warnings – no generic guessing. The clutch section covers Broken Damper Spring (RWRG0053) and Seized Solo Adjusting Cam (RWRG0047). For general knowledge, Manual Transmission systems vary, but this is specific to TCWY1250.

Clutch Housing Gasket Leak? Page 1

That’s the first procedure in the manual. It walks you through the inspection steps, torque sequence for the housing bolts, and the exact gasket part number. If you skip to page 1, you’ll find the pre-authorization checklist that dealers and warranty administrators require. Miss that step and your claim gets kicked back.

Why OEM Documentation? Aftermarket Reprints Aren’t Enough

I’ve had three different aftermarket manuals on my shelf for an Eaton Fuller – none of them had the correct clutch release bushing spec. This OEM Repair Manual from January 2012 is printed by Eaton themselves. The wiring diagrams for the automated section (Gen 3 Harness Failure, page 91) are factory-correct. Aftermarket sources routinely crop pages or blur torque values. Don’t risk it.

Transmission Overheating and Other Failure Modes

RWRG0038 covers transmission overheating. It lists the cooler flow test specs and the oil temperature limits. There’s also a separate section for external heat exchange (cooler) failure (RWRG0005) and internal heat exchange failure (RWRG0007). Each one has a distinct failure mode and repair path. The manual also includes output seal leakage and input shaft breakage – all with the proper disassembly steps and bearing clearance checks.

Who Needs This Manual?

If you’re a shop owner or a DIY guy pulling a TCWY1250 for a clutch job, this is your insurance policy. The pre-authorization warranty pages are written for service writers and technicians who need to submit claims. The clutch section (pages 75-89) shows you the exact criteria for broken hub rivets and idle rattle. For older models, check out Eaton Yale & Towne 1700 1969 Parts Manual and Operating Instructions”>Eaton Yale & Towne 1700 1969 Parts Manual and Operating Instructions. If you’re working with automated transmissions, the Eaton Fuller Roadranger AutoShift Gen II Quick Reference Guide”>Eaton Fuller Roadranger AutoShift Gen II Quick Reference Guide is a good companion. Fault codes? Grab the Eaton Fuller Fault Code Charts APMT-1234″>Eaton Fuller Fault Code Charts APMT-1234.

Frequently Asked Questions

Does this manual cover the automated transmissions (e.g., AutoShift)?

Yes. The Automated Products section (pages 91-101) covers Gen 3 Harness Failure, Splitter Complaint Fault Code 42, Range Shift Complaints, and more.

Are there torque specs in this manual?

Torque values are listed inside each repair procedure – for example, the clutch housing gasket leak procedure specifies bolt torque in lb-ft. You will need a calibrated torque wrench.

Can I use this manual for a different Eaton model like the Fuller 18-speed?

This manual is specific to the TCWY1250. For other models, you need the matching OEM manual. A one-size-fits-all approach will get you burned.

What is the difference between “Pre-Authorization” and regular repair sections?

Pre-authorization sections (e.g., RWRG0004 Clutch Housing Gasket Leak) require inspection and warranty approval before you start the repair. The regular sections (like RWRG0001 Auxiliary Drive Gear Bearing Failure) are standard repair procedures that don’t need prior approval, but still follow the same factory spec. Both are in this manual with separate page ranges and checklists.

Access the Factory Manual. It’s the only way to get the exact Eaton 2012 TCWY1250 procedures without guesswork. Put it on your tablet or print it out – either way, you’ll have the specs that keep your claims paid and your transmission running right.
