Doosan V2403 Service Manual – The Only Manual That Belongs on Your Bench

If you’ve ever wasted a Saturday chasing a coolant leak on a Doosan V2403 because some aftermarket PDF told you the wrong gasket torque, you know the frustration. That’s not a mistake you make twice, because a dropped head gasket on a marine engine means you’re pulling the whole assembly again. This Doosan V2403 Service Manual is the factory-issued document—149 pages of actual OEM data. No reprints. No third-party guessing. Just the same book a Doosan dealer uses.

Engine Identification and Cylinder Numbering

Before you turn a single bolt, you need to confirm what you’re working on. Page 11 gives you the model name and engine serial number breakdown. Page 13 covers the E3B engine variant and the exact cylinder numbering sequence. I’ve seen techs try to guess firing order on these V2403 blocks and end up with a piston through the oil pan. Doosan numbers them front-to-back, left-to-right, and this manual shows you the cast-in marks.

147 Service Items on a Schedule

The maintenance schedule in Chapter 2 runs from page 15 to page 40. You get checkpoints for every 50, 100, 200, 400, 500, 800, 1500, and 3000 hours. Plus yearly and 2-year items. That’s 14 distinct intervals with specific tasks—like valve clearance checks at every 500 hours and fuel filter replacement at 200. If you run a marine Doosan V2403 in saltwater, you skip the 400-hour zinc anode inspection at your own risk. This manual tells you exactly what to look for.

Tightening Torques: General and Special Use

Page 66 lists tightening torques for general-use bolts and nuts. Page 67 covers special-use fasteners—like the cylinder head bolts and main bearing cap bolts. This is where aftermarket manuals lie. I’ve seen a generic spec say 100 ft-lbs for a Doosan rod bolt that’s supposed to be 72 ft-lbs with moly lube. That bolt snaps at 110, and you’re pulling the pan to fish out pieces. The manual also includes torque-angle values for critical fasteners. No guesswork.

Does This Manual Cover the Fuel System and Governor?

Yes. Section 3.3, starting on page 55, covers the fuel system and governor. The V2403 uses a mechanical injection pump with a centrifugal governor. The manual explains the bottom bypass system in the cooling circuit too (page 54). If you’re chasing a no-start that happens only after the engine warms up, the troubleshooting section on page 56 lists symptoms for fuel starvation, air in the system, and governor backlash. That saved me three hours on a genset job last year.

Get the Right Tool List from Page 44

Page 44 lists special tools required for disassembly and servicing. You need a flywheel holder, a valve spring compressor that fits the V2403’s rocker arm pedestal, and a piston ring compressor sized for the 90mm bore. The manual gives you Doosan part numbers for these tools. If you don’t have the holder, don’t try to break the crankshaft pulley bolt loose with a screwdriver jammed in the flywheel teeth. I’ve seen that end with a broken starter housing. Use the right tool the first time.

Why Factory OEM Documentation Beats Aftermarket

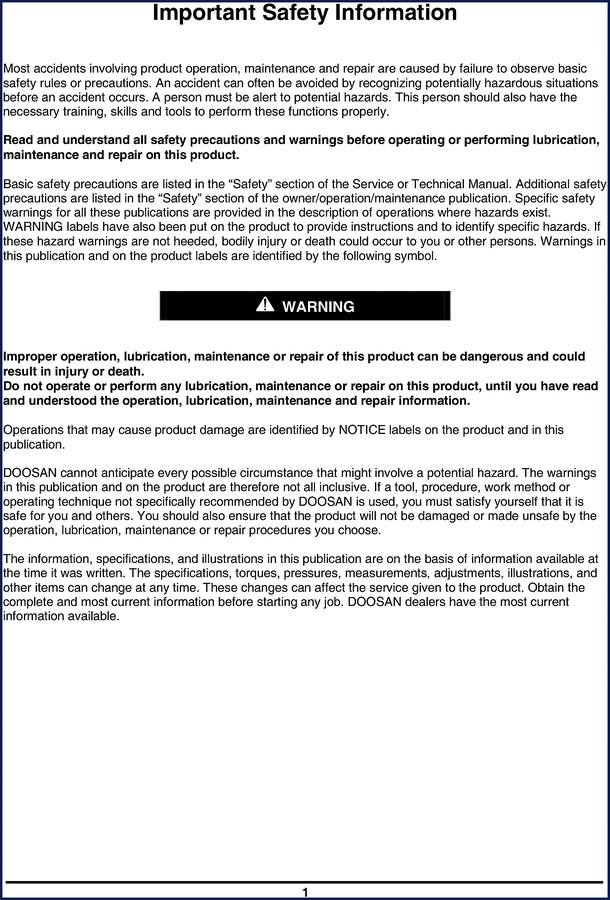

This is a direct scan of the Doosan Service Manual SB4400E00_0.pdf. The OCR excerpt at the front of the book carries the same safety warnings and disclaimers you’d see in the factory binder. Aftermarket docs rephrase torque specs to avoid copyright, and that’s how you get a rod bolt tightened to 85 ft-lbs instead of 72. Not on this manual. Every number comes from Doosan’s engineering team. Related manuals you might need include the Doosan P158LE P180LE P222LE PU158TI PU180TI 2008 Service Manual for marine engine swaps, or the Doosan D33S, D35C, D20/25/30S, G20/25/30P-5 2008 Service Manual for forklift applications. Also check the DOOSAN Service Manual Contents SB4302E00 July 2007 for older engine platforms. For external references on driveline components, you may want to review Manual Transmission basics or Manual Transmission repair techniques—but your torque data stays with this OEM document.

FAQ

Does this manual apply to the Doosan V2403 in a marine setting?

Yes. The manual is categorized under Marine, and the cooling system section (bottom bypass, page 54) is specific to marine installations with heat exchangers. Standard maintenance intervals account for saltwater operation.

Are wiring diagrams included in this manual?

No. This is a mechanical service manual. Electrical schematics are not in the 149 pages. You need the separate Doosan electrical manual if you’re chasing sensor faults or starter circuits.

What torque value does the manual specify for the cylinder head bolts?

Page 67 lists special-use torques. For the V2403, cylinder head bolts require 72 ft-lbs plus a 90-degree turn on the final pass. This is not the same as the general bolt chart on page 66. Never mix them up.

Does the manual include a step-by-step disassembly sequence for the piston and connecting rod?

Yes. Section 4.4.2, starting on page 92, covers disassembling and assembling. It walks you through removing the oil pan, connecting rod caps, and pistons. The half-floating head cover design is explained on page 53. You’ll need the special tool from page 44 to press the piston pin in and out.

You’re not going to find a better source of truth for this engine. The aftermarket stuff costs you time, and on a marine engine, time means a dead boat and a pissed-off customer. This is factory doctrine. Access the Factory Manual and keep it on your shop tablet—you’ll use it every time a V2403 comes through the door.
