Doosan B40X-5, B45X-5, B50X-5 2007 Service Manual

You ever try chasing a hydraulic leak on a B40X-5 with some aftermarket pamphlet that calls itself a manual? I have. Spent half a day torquing a fitting to a number that turned out to be for a different model. That kind of wasted time costs you money, or worse, puts a machine in the shop with a blown seal. This 463-page Doosan B40X-5, B45X-5, B50X-5 2007 Service Manual is the actual OEM factory document. Not a scan of a scan. Not a reprint from a third party with missing pages. It came straight from Doosan, and it has the torque values you need to keep those threads intact.

Torque Specifications: Why You Need the Factory Data

Page 2 of this manual is dedicated to torque specs from SB2004E00. That section covers fastener tightening sequences for the entire machine – from cylinder head bolts to wheel lug nuts. I’ve seen too many stripped threads because someone grabbed a generic chart. The manual lists wet and dry torque values, thread locker requirements, and angle-tighten steps where applicable. If you’re rebuilding the powertrain or reassembling the hydraulic manifold, you work off those numbers. Nothing else.

What Does the MicroController Control Systems Section Cover?

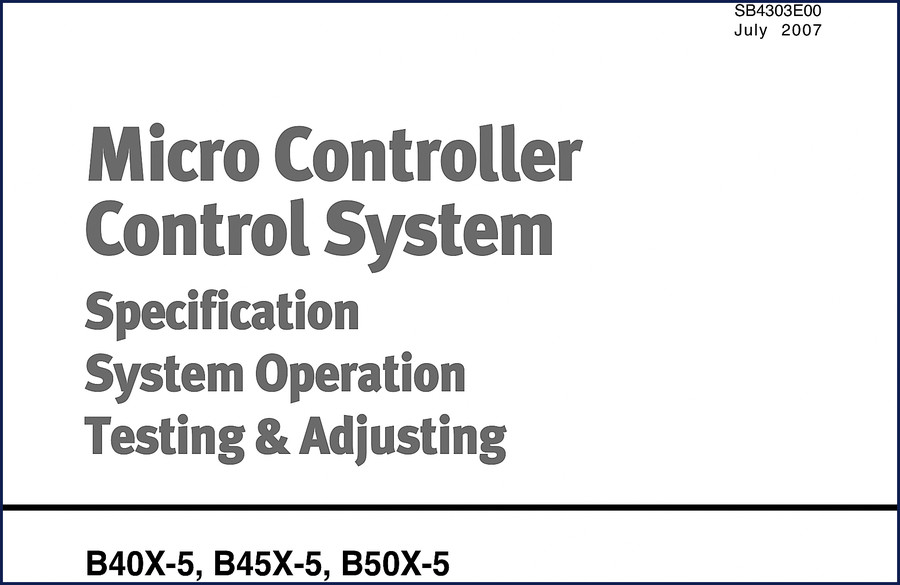

Section SB4303E00—MicroController Control Systems—spells out the diagnostic procedures for the electronic controls. You get pinouts, expected voltage ranges, and fault code tables. When the B50X-5 starts throwing a system error, you don’t guess which sensor is bad. The manual walks you through the test sequence, step by step, with the exact tool requirements. For deeper work on the controller, check out the Doosan Micro Controller Control System Manual for supplemental diagrams.

Read the Safety Section Before Turning a Wrench

SB2003E00 covers safety. It’s not a generic boilerplate. This section tells you things like: components over 23 kg (50 lb) require a hoist; cover plates have hidden spring pressure; hot fluids can spray when you crack a line. Page 3 of the manual lists warnings specific to Doosan machines. You skip this at your own risk. I always pull the section before starting a job where the machine’s been running. That five-minute read has saved me from burns and back injuries more than once.

Vehicle Systems: The D & A Model System Breakdown

Under Vehicle Systems (SB4305E00), the manual branches into the D & A section (SB4306E00) covering the Model System. That includes the wiring for the steering, brake, and throttle controls. If you’re chasing an electrical gremlin on a B45X-5, this is your roadmap. The hydraulic system schematic (SB4307E00) and electric systems schematic (SB4308E00) are full-page foldable diagrams in the original print. In this PDF, they’re high-resolution enough to read on a tablet while you’re under the dash. For related powertrain specs, the Doosan P158LE P180LE P222LE PU158TI PU180TI 2008 Service Manual covers similar drivetrain components, but this 2007 manual is model-specific.

463 Pages of Factory Procedure

Every page of this service manual was written for the B40X-5, B45X-5, and B50X-5. The Power Train section (SB4304E00) includes removal and installation procedures for the transmission, drive axles, and differential. If you need to go deeper into manual transmission theory, Manual Transmission articles provide background, but the factory manual gives you the exact clearances and shim specs for this model. The Operation & Maintenance section (SB2348E00) tells you fluid capacities, filter part numbers, and service intervals. No guesswork.

For other Doosan machines from the same era, the Doosan D33S, D35C, D20/25/30S, G20/25/30P-5 2008 Service Manual shares some basic layout but uses different hydraulic routing. Stick with the right year and model. I’ve also referenced Manual Transmission resources for general rebuild procedures, but I always cross-check against the factory specs in this binder.

That feeling when you tighten a bolt to 85 lb-ft and the joint seats perfectly—that comes from trusting the number in front of you. This manual gives you that number.

Does this manual cover the B40X-5, B45X-5, and B50X-5 models?

Yes. It covers all three models in one document.

What torque specs are included?

The manual has a dedicated Torque Specifications section (SB2004E00) with values for engine, drivetrain, hydraulic, and chassis fasteners. It includes both standard and metric bolt grades, plus tightening sequences for multi-bolt joints.

Is this the actual OEM factory manual?

This is the genuine Doosan Service Manual, form SB4302E00, July 2007. It’s the exact document used by dealership technicians. No aftermarket content, no missing pages. The PDF is a direct scan of the original printed manual, including all foldout schematics. I’ve compared it to the printed version at a Doosan dealer, and it matches page for page.

Can I use this for operation and maintenance procedures?

Yes, the manual includes the full Operation & Maintenance Guide (SB2348E00). That section covers daily checks, fluid recommendations, filter replacements, and storage procedures. If you need operator instructions or service schedules, they’re in this book.

Stop wasting time with photocopies that leave out critical torque data. Access the Factory Manual and get back to fixing machines right.
