Doosan B20S-5, B25S-5, B20S, B25S, B30S 2006 Service Manual

Flat-rate book time disappears fast when you’re chasing a torque spec that doesn’t belong to your machine. I’ve seen techs snap head bolts on a B25S because they grabbed a value off a forum instead of the factory page. That stops here. The Doosan B20S-5, B25S-5, B20S, B25S, B30S 2006 Service Manual is 507 pages of OEM data, not a third-party condensation. Every number in here came off Doosan’s engineering floor.

Torque Specs: The Difference Between a Leak and a Leak-Free Job

Page 2 of this manual is dedicated to torque specifications. That’s it – a full page of factory numbers for fasteners across the power train, hydraulic system, and chassis. You won’t find a generic “tighten to 80 ft-lb” footnote. The table lists values for specific bolts and conditions. Use these, and that oil pan gasket stays dry. Skip them, and you’re buying a replacement gasket next week. I’ve installed enough lift truck engines to know that a torque wrench set to the wrong number is a leak waiting to happen. This section eliminates that guesswork.

MicroController Control System: Factory Diagnostics

The DRIVE & CONTROL SYSTEM chapter breaks down the MicroController Control System – form SB4200E01 in the manual. This is the brain that manages throttle response, lift logic, and safety interlocks. If the controller goes into limp mode or throws a code you don’t recognize, the diagnostic procedures here tell you which pin to probe and what voltage you should see. Do not attempt to patch around that controller with generic wiring diagrams. Stick to the factory sequence. For additional context on the controller’s architecture, refer to the Doosan MicroController Control Systems Specifications document.

Why OEM Documentation Beats Aftermarket Reprints

I refuse to use any service information that hasn’t been through the manufacturer’s review process. Aftermarket manuals cut corners. They leave out the torque update bulletins, the wire gauge callouts, the safety decal placement instructions. This manual is an original OEM print – form numbers SB4199E00 (contents), SB2003E00 (safety), SB2004E00 (torque), and so on. Each section comes from Doosan’s own service department. If you see a mark next to a form number in the table of contents, it means that supplement hasn’t been issued yet – that’s honesty you won’t get from a reprint house. The paper is the same as what the dealer tech uses.

Safety Warnings You Can’t Afford to Skip

Page 3 of the manual starts with basic precautions that save fingers and lives. I’ve read too many accident reports that started with “I didn’t think I needed jack stands.” The manual says: use protective glasses when pounding on any part, wear welders gloves and hood for welding, lower forks to the ground before working on the machine, and use a hoist for anything over 50 lb. It even reminds you to remove all rings – something a lot of guys forget until they catch a wedding band on a bracket. These warnings are not boilerplate. They are written for the serviceman who might be unfamiliar with this specific machine, and they reference the actual weights and hazards printed later in the book. Do not skip them.

7 Systems Covered in 507 Pages

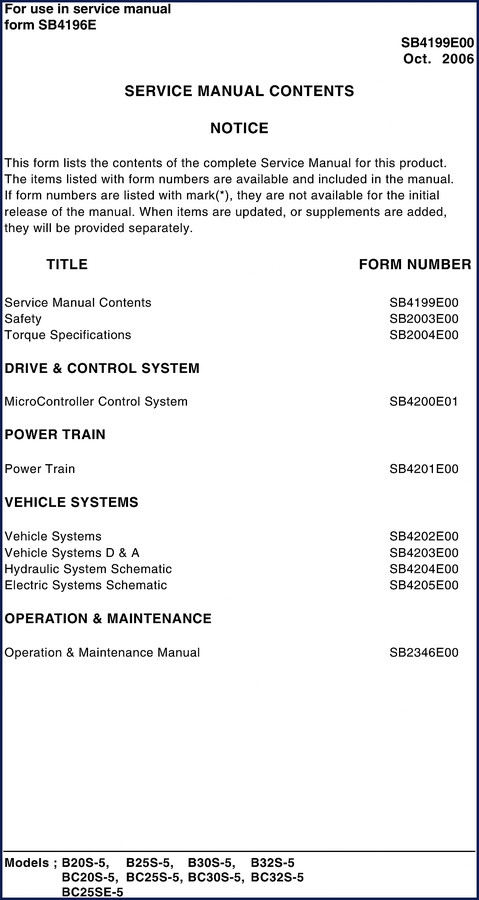

The manual is organized into seven major sections based on the conference bookmarks: Service Manual Contents, Safety, Torque Specifications, Drive & Control System (MicroController), Power Train, Vehicle Systems (with subsections for schematics and D&A), and Operation & Maintenance. Each section corresponds to a separate form number – SB4201E00 for Power Train, SB4202E00 through SB4205E00 for Vehicle Systems, and SB2346E00 for Operation & Maintenance. That structure lets you jump straight to the hydraulic schematic (SB4204E00) without flipping through irrelevant chapters.

What the Doosan B20S-5, B25S-5, B20S, B25S, B30S 2006 Service Manual Covers

This manual covers the B20S, B25S, B30S base models as well as the -5 variants (B20S-5, B25S-5). The OCR contents also list B30S-5 and BC series, but the title page specifically includes the models you see in the product name. If you’re working on a B20S-5 forklift or a B30S lift truck, the data applies – same frame, same driveline architecture, same engine calibration. The torque specs and wiring diagrams are identical across these models unless a specific note says otherwise. That kind of cross‑referencing clarity is rare outside of an OEM manual.

Get the Right Procedure for Power Train

The Power Train chapter (SB4201E00) covers the transmission, drive axle, and differential. Every removal sequence starts with a weight warning and a list of required tools. Disassembly steps are numbered, and reassembly notes call out thread sealant where needed. The chapter includes a torque sequence for the differential housing bolts – a step many aftermarket guides omit. For background on how a Manual Transmission functions, you can supplement your knowledge with external references. Similarly, understanding Manual Transmission basics helps when the manual refers to shift linkage adjustments.

Related Manuals

• Doosan P158LE P180LE P222LE PU158TI PU180TI 2008 Service Manual
• Doosan D33S, D35C, D20/25/30S, G20/25/30P-5 2008 Service Manual

Frequently Asked Questions

Can I use this manual for the B30S model?

Yes. It covers B20S, B25S, B30S, B20S-5, B25S-5.

What safety precautions does the manual emphasize?

Page 3 lists twelve numbered safety rules, including wearing protective glasses, using jack stands instead of a hoist alone, lowering forks to the ground before service, and using a hoist for components over 50 lb. It also warns against loose clothing, rings on fingers, and says to clean mud from steps before mounting the machine. These are not generic – they reference the specific machine size and weight. The manual even notes that the serviceman may be unfamiliar with the system, so a knowledge of the component is important before disassembly. Reading that page takes five minutes and could save you a broken leg or a crushed hand.

507 pages, OEM form numbers, and a torque spec page you can trust. If you’re maintaining a Doosan lift truck in your shop, this is the document you put on the bench. Access the Factory Manual.
