Dongyang Mechatronics SS2725LB Parts Catalog

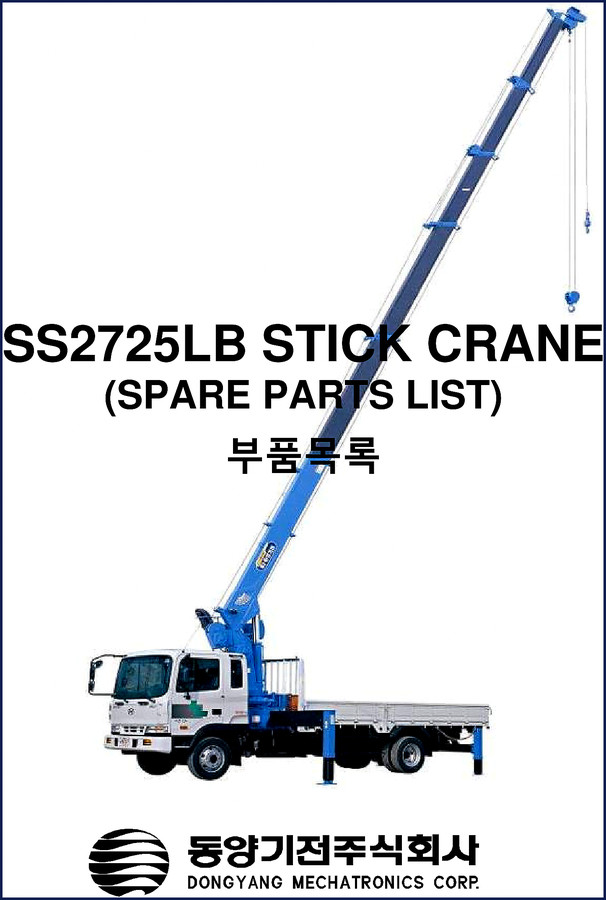

If you own a Dongyang Mechatronics SS2725LB Parts Catalog stick crane, you know the headache of ordering a part that doesn’t fit. This factory-issued Spare Parts List – all 92 pages of it – is the only document that shows you exactly what part number goes where. I’ve been in this trade long enough to spot a reprint from a mile away. This is the real deal: original OEM content from Dongyang Mechatronics Corp., printed for the SS2725LB model.

The manual opens with the owner registration form on page 1 and a caution statement in both Korean and English. Page 4 walks you through the ordering procedure – step by step. You need the crane model, page number, indication number, part number, part name, quantity, and your address. Miss one field and you’ll get the wrong part. This manual tells you exactly how to fill out that order form so you don’t waste time or money.

Dongyang Mechatronics SS2725LB Parts Catalog – Stick Crane Assembly Breakdown

This is a spare parts list, not a repair manual. It breaks down the SS2725LB stick crane into assemblies – boom, hydraulic cylinders, control valves, base frame, etc. Each assembly has its own exploded view diagram with reference numbers. You cross-reference those numbers to the part list tables. On the left column you get the index number (Indication No.), then the part number, part name, and quantity per assembly. The entire document is bilingual (Korean and English) so language is not a barrier. That’s the core of the manual: a systematic breakdown of every nut, bolt, seal, and hydraulic line that makes up the SS2725LB stick crane. If you have ever tried to match a part by eye from a blurry photo on a forum, you know the value of having a factory drawing with corresponding numbers. It eliminates the back-and-forth with the dealer’s parts desk. You call them with the exact part number from this manual and they can pull it from stock. That is the kind of efficiency that pays for the manual in one order. I have seen shops spend an hour on the phone trying to describe a bracket. With this catalog, it’s a thirty-second lookup.

Why OEM Documentation Matters for Your Crane

Aftermarket parts lists often use renumbered part numbers or generic descriptions. That causes confusion when you call the dealer. This catalog uses the exact factory numbering system from Dongyang Mechatronics. The manual states that part numbers and shapes can change due to design updates without prior notice. You need the latest OEM issue to stay current. Any version that is not the official Dongyang release is a gamble. The automotive industry as a whole has standards, but this crane manufacturer follows its own internal system documented here. Automotive Industry Overview Automotive Industry Overview – both links give background, but the real specs are in this manual.

Ordering Procedure: Factory Instructions You Can Trust

When you need a part, you don’t guess. You go to the manual, find the assembly page, note the Indication No., then look up the part number. The manual even provides a sample order form with fields for crane model, page number, indication number, part number, part name, quantity, and your contact info. Fill those out and send to Dongyang’s A/S center. The manual states that doing this reduces supply time. That’s because they don’t have to call you back asking for the missing info. If you skip the page number, you’ll get a delay. I’ve seen it happen. Don’t be that guy.

Hydraulic System Components – Locate Them Fast

Hydraulics on a stick crane are critical. The parts catalog lists every seal, hose, valve, and fitting. You need the exact part number because a wrong O-ring can cause a leak at 3,000 PSI. The manual groups hydraulic components by function – cylinder, pump, control valve, filter. Each group has its own diagram and table. Page references are given in the table of contents.

Part Number Changes and Design Updates

Part numbers can change. The manual explicitly states that the parts number and shapes shall change at any time due to design change or part numbering system updates without prior notice. That means your 2019 part number might be superseded. If you rely on an old aftermarket list, you’ll order a discontinued part. This OEM catalog gives you the current numbering. You can call Dongyang with the part number from this manual and get the right piece.

One more thing: the crane is mounted on a vehicle. The manual reminds you that for vehicle-specific maintenance, refer to the truck manufacturer’s manual. Use this parts catalog only for the crane itself.
