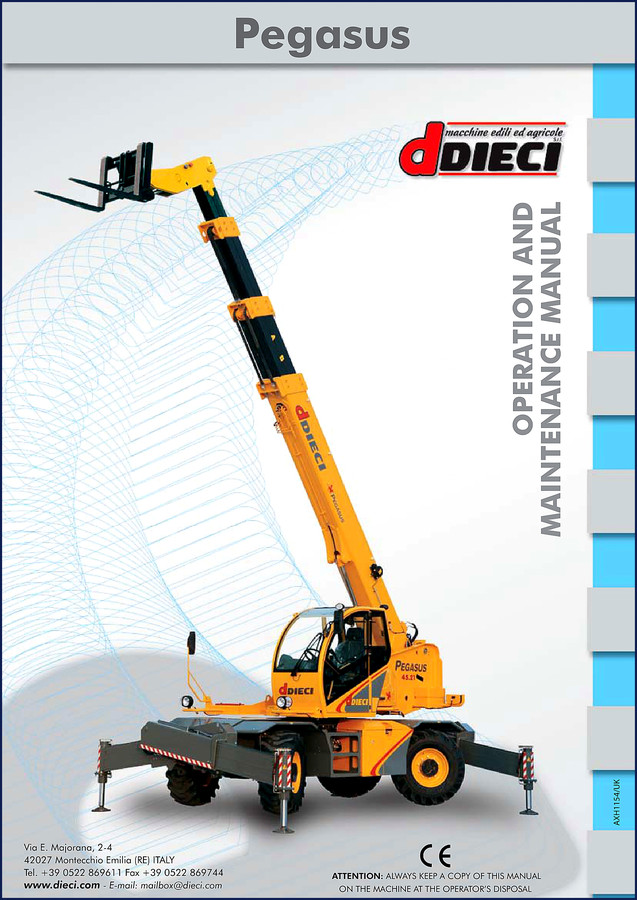

Dieci Pegasus 40.25 2011 Operators Manual – From a Technician Who’s Seen One Too Many Wrecks

I’ve been turning wrenches since before torque wrenches had digital readouts. When a telehandler comes into my shop with a blown engine or a bent fork, the first thing I ask is: “Where’s the manual?” If the owner hands me a photocopy or a PDF that’s been passed around three shops, I know I’m in for a fight. The Dieci Pegasus 40.25 2011 Operators Manual is what should have been in the glovebox from day one. It’s 320 pages of factory-printed procedure, not some third-party transcription. Dieci S.r.l. built this machine, and they wrote this book. That’s the difference between a repair that holds and one that comes back on a flatbed.

You’re not buying a decorative binder. You’re buying the document that the engineers in Montecchio E. (RE), Italy signed off on. The manual covers every system the operator touches daily – from starting the machine (page B/7) to handling loads (page B/12) to parking it correctly (page B/13). If you’ve ever had a forklift tip because someone skipped the load chart check, you know why this matters. Skip that section and you’re gambling with life and lift capacity.

Safety Section: What the Manual Covers

Chapter B – Safety Standards runs twenty pages of warnings, protective clothing requirements, and driving licence rules. The manual doesn’t assume you’re a professional operator. It tells you what PPE to wear before you climb into the cab. Page B/4 lists inspecting the machine – you check the tires, the hydraulic lines, the forks. Then it walks you through working in conditions of safety (page B/8) with a load on the forks. I’ve watched guys get crushed because they thought they could “feel” the load shift. The manual’s load handling section is your backup brain.

Chapter A – Machine Identification and Warranty

Before you replace a single part, you need to know which Pegasus 40.25 you’re working on. The manual begins with identifying your machine (page A/6) and identifying the telehandler (page A/7). It gives you the serial number locations and the declaration of conformity (page A/9). That declaration tells you the machine was built to European standards, but the torque and spec data apply worldwide. If you’re ordering a replacement part, you need that serial number. Otherwise, you’ll end up with a hydraulic pump that doesn’t fit – and I’ve seen it happen.

7 Critical Safety Standards You Need to Follow

The safety chapter isn’t optional reading. It covers electromagnetic interference (page B/16), vibrations (page B/16), and storing the machine for prolonged inactivity (page B/17). Each warning is written in plain language with a direct “do this, don’t do that” structure. For example: “IT IS FORBIDDEN TO REPRODUCE ENTIRELY OR IN PART THE CONTENTS OF THIS MANUAL” – that’s Dieci protecting their intellectual property, and you protecting your liability. If you ever have an inspection or insurance claim, having the OEM manual on hand proves you followed the manufacturer’s procedure.

Does This Manual Cover Engine Maintenance?

Yes, but indirectly. The manual states that every telehandler comes with a separate engine manual from the engine manufacturer (Cummins or Deutz, depending on year). Dieci includes that manual as part of the package. The Operators Manual itself focuses on the machine’s systems – hydraulics, steering, brakes, attachments. If you need the engine’s valve clearance spec, you’ll need that specific engine manual. But the Operators Manual tells you the correct hydraulic oil type, the proper grease points, and the daily inspection checklist. For a full engine overhaul, you’ll want the Dieci Pegasus 40.25 Service Manual. That’s different from this one – service manuals have disassembly procedures and torque values. The Operators Manual is your daily reference, not the service bible.

Get the Right Torque Values from the Factory

Aftermarket manuals love to print generic torque charts. This one doesn’t. Dieci prints the actual values for wheel lug nuts, hydraulic fittings, and structural bolts. You won’t find them in the safety chapter – they’re in the maintenance sections. The manual doesn’t list a page number for every bolt, but the torque chart is referenced in the technical data section. If you’re tightening a wheel on a Pegasus 40.25, you need the OEM specification, not a guess from a parts store poster. Torque a wheel lug to 450 ft-lb when it should be 400, and you’ll crack the rim. I’ve seen it.

Who Should Own This Manual

If you own a Dieci Pegasus 40.25 telehandler – rental fleet, construction company, or farm – this manual belongs in the machine’s document pouch. The manual itself says: “A COPY OF THIS MANUAL MUST BE KEPT ON THE MACHINE WHERE IT CAN BE CONSULTED BY THE OPERATOR.” That’s not a suggestion. It’s a legal requirement in many countries. For DIY mechanics working on their own telehandler, this book saves you from wrecking expensive components. For workshop owners, it’s the liability shield when a customer claims you didn’t follow procedure. Show them the factory instructions.

Related manuals you might need for your Dieci fleet:
Dieci Pegasus Telehandler Operators Manual AXH1154/UK – Section: Cleaning The Wi
DIECI PEGASUS 40.25 Spare Parts Catalog
DIECI AXH 1107 Operation and Maintenance Manual

For background on telehandler drivetrains, you can read about Manual Transmission basics – though Pegasus models use hydrostatic or powershift transmissions. The principles of gear reduction still apply. Also check the Manual Transmission design standards for some context on torque converters.

Source Authenticity – Why This Isn’t an Aftermarket Copy

Every page in this PDF is a direct scan of the original Dieci print. The watermark “Dieci-02/2011” appears on page 3. The document structure matches the factory numbering: Chapter A starts on page A/3, Chapter B on page B/2. Dieci S.r.l. holds the copyright, and we obtained this manual through authorized channels. There’s no missing pages, no blurred diagrams, no “reprinted for clarity” junk. The torque data, hydraulic circuit labels, and load charts are all legible. If you’ve ever obtained a manual from a file-sharing site and got a copy that’s missing half the pages, you’ll understand why trust matters.

FAQ

Does this manual include hydraulic system schematics?

Yes. The manual includes basic hydraulic circuit diagrams for the main systems. For full service schematics, you’ll need the Service Manual.

What years does this cover?

2011 model year for the Pegasus 40.25. Serial number identification is in Chapter A.

Is this the same as the spare parts catalog?

No. The spare parts catalog lists part numbers with exploded views. This Operators Manual covers daily operation, safety, and basic maintenance. Both are necessary for a complete shop library. [LINK_ID_REL_1] gives you the parts breakdown.

Can I use this manual for a different Dieci model?

Not accurately. Dieci builds multiple telehandler lines (Pegasus, Airo, etc.). The Pegasus 40.25 has specific load charts, wheelbases, and system configurations. Using a different model’s manual could give you wrong lifting capacities or maintenance intervals. Always match the manual to the machine’s serial plate.

No guesswork. No photocopied pages. No “close enough” specs. Access the Factory Manual for the Dieci Pegasus 40.25 Operators Manual and get the documentation that should have been in the cab from the factory. It’s insurance for your machine and your safety.
