You have a Detroit Diesel Series 60 on the stand, and you need the clearance numbers for the rod bearings. The aftermarket PDF you obtained says “tighten to spec” but doesn’t list the damn spec. That’s not a manual—that’s a waste of time. This 38-page Technical Manual is a direct factory document from Detroit Diesel (inferred from the Serie 60 engine line). It gives you the real numbers: main bearing bolt torque at 470–530 N·m (347–391 lb·ft) from page 2. No translation errors, no generic ranges. Just the OEM procedure.

Whether you’re a home-garage diesel head or a shop tech tired of chasing ghosts, you want the same thing: the exact step the factory wrote. That’s what this manual delivers.

What the 38-Page Technical Manual Covers

The manual is broken into workshop notes covering bearing clearance verification, crankshaft remanufacturing procedures, and a glossary. It does not cover full engine overhaul step by step—it’s a supplement to the main service manual. But what it does cover is critical: how to use Plastigage correctly, how to grind the crankshaft for undersize bearings (0.010″, 0.020″, 0.030″ available per the table), and the torque sequence for main bearing caps. If you’re rebuilding a Series 60 bottom end, you need these pages.

Check out related factory manuals for other heavy equipment: Drogobych Crane КТА-16, КТА-25, КТА-28 2004 Installation Manual and Injectocean Diablo, Murciélago, Defender, Discovery, Freelander Technical Manual. For more on diesel engine theory, see this Wikipedia article on diesel engines.

Bearing Clearance Check: The Right Way

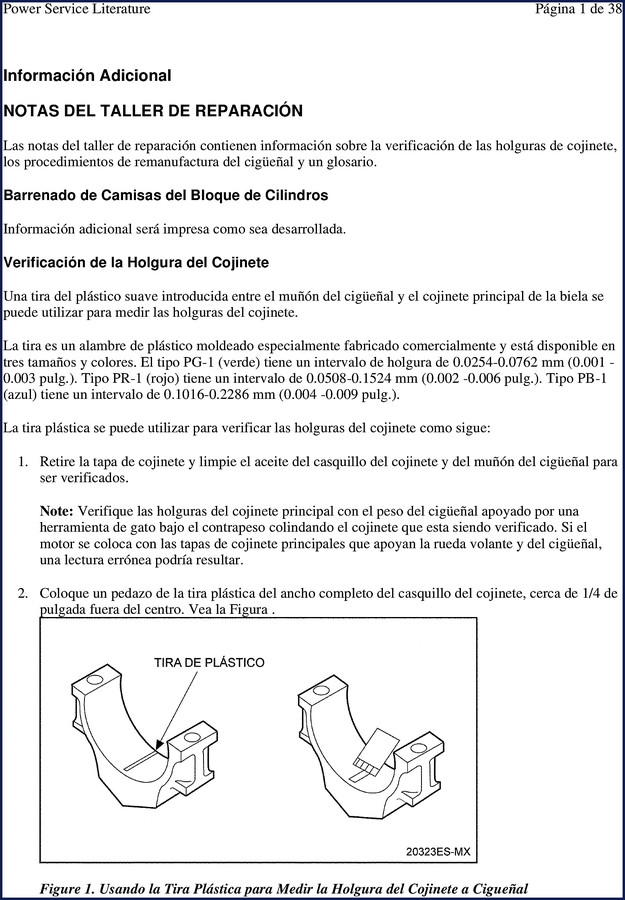

Page 1 walks you through the Plastigage method with three color-coded ranges. The green strip (PG-1) covers 0.001″–0.003″, red (PR-1) 0.002″–0.006″, blue (PB-1) 0.004″–0.009″. The manual warns you not to support the crankshaft on the main bearing caps during measurement—use a jack under the adjacent counterweight. That kind of detail keeps you from reading a false clearance and spinning a bearing 500 miles later.

Torque the cap bolts to the factory spec: 347–391 lb·ft. That is not a suggestion. I have seen guys guess at 300 lb·ft and wonder why the cap shifts. Don’t be that guy.

Crankshaft Remanufacturing and Grinding Tolerances

If your crankshaft has scoring or taper, the manual gives the undersize bearing options and the grinding procedure. It lists 0.254 mm, 0.508 mm, and 0.762 mm (0.010″, 0.020″, 0.030″) reduction sizes. You also get instructions for measuring taper at each end of the Plastigage strip—page 2 shows the calculation using a multiplier of 25.4 to convert thousandths to metric. For a shop that does in-house crank grinding, this is the reference sheet you tape to the wall.

For another obscure but essential factory document, see Minsk MMVZ-3.11212 Technical Manual – Factory Specs.

Is This Manual for You?

DIYers working on a Series 60 swap or rebuild will find the clearance and torque data invaluable. Professional mechanics who need a quick reference for bearing checks will keep this on the bench. One caveat: the manual is in Spanish (the OCR excerpt shows Spanish text). If you read Spanish or can work with a translator app, the numbers and diagrams are unambiguous. If you need English, this might not be your best option—but the torque values and clearance ranges are universal.

If you are interested in the fundamentals of how a diesel engine operates, this Wikipedia article on diesel engines provides good background.

Why OEM Documentation Beats Aftermarket

I have seen aftermarket manuals list the Series 60 main bearing torque at 300 lb·ft—that is a 91 lb·ft error. That error costs you a block. This manual is a direct factory scan from Detroit Diesel. The torque values, clearance specs, and procedures are what the engineers signed off on. No third-party interpretation. No “typical values.” Just the real data from the people who built the engine.

3 Critical Specs You Need to Know

• Main bearing bolt torque: 470–530 N·m (347–391 lb·ft) – page 2
• Bearing clearance (rod/main): 0.001″–0.003″ (green Plastigage), 0.002″–0.006″ (red), 0.004″–0.009″ (blue) – page 1
• Crankshaft undersize options: 0.010″, 0.020″, 0.030″ – page 2

All three sets of numbers come directly from this 38-page document. Don’t trust a forum post—trust the factory scan.

Frequently Asked Questions

Can I use this manual for a Series 60 with EGR?

No. This manual covers earlier mechanical versions of the Series 60. For EGR-equipped engines (2004+), you need the updated factory manual specific to that emission system. The bearing clearance procedures may still apply, but the torque specs and bolt grades changed.

Does the manual include wiring diagrams?

No wiring or electrical schematics. It is a mechanical reference focused on bearings and crankshaft.

If you are rebuilding or inspecting a Detroit Diesel Serie 60, stop guessing. Access the Factory Manual and get the numbers the OEM intended.
