Denso LAND CRUISER PRADO 2009 Technical Manual – Factory Common Rail Specs

Description

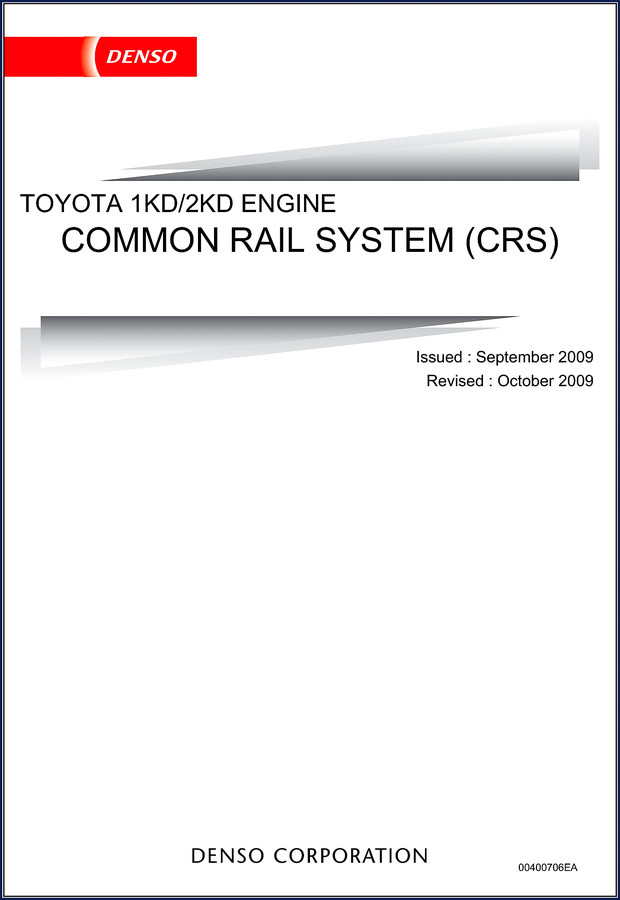

You’ve got a 2009 LAND CRUISER PRADO with a common rail fuel system acting up. Maybe it’s a no-start, a misfire, or a DTC that points to the Suction Control Valve. You pull out an aftermarket manual and it gives you generic procedures that don’t match the actual wiring or part numbers. That’s when you waste billable hours. I’ve been there. That’s why I reach for the factory Denso LAND CRUISER PRADO 2009 Technical Manual. This is not a reprint. It’s the actual technical training document issued by Denso in September 2009, revised October 2009, covering the 1KD and 2KD engine common rail system.

Supply Pump and Suction Control Valve (SCV) Changes

Section 2 of this 31-page manual walks through the changes to the supply pump, specifically the Suction Control Valve (SCV). If you’ve had a cranking, no-start on a common rail, the SCV is one of the first things to check. The manual details the change item—meaning what changed from previous iterations. You get the exact valve part numbers and how the SCV regulates fuel flow into the high-pressure pump. Aftermarket books skip this level of specificity. They’ll tell you to replace the pump. This Denso manual tells you what changed and why.

Fuel Injection Control: Microinjection Quantity Learning

Section 5 covers fuel injection control changes. The big one here is the microinjection quantity learning control. This is what lets the ECU correct injection pulse width (TQ) against actual injection quantity (Q) for each cylinder. The manual includes the determinations for learning conditions, single microinjection operation, and detecting rotational speed changes via injection. If you’re chasing a rough idle or smoke out the tailpipe, this section (page 3 for the table of contents) tells you how the system adapts. You need this to understand why a new injector might still throw a code.

What Do the Injector QR Codes Tell You?

Section 4.2 covers Quick Response (QR) codes on the injectors. These are not just for inventory. Each injector has a unique code that the ECU reads to adjust fueling. The manual explains how to interpret those codes and what data they contain. If you replace an injector without matching the QR code data, the ECU won’t know the flow characteristics. That’s a setup for cylinder imbalance. Aftermarket manuals never mention this detail. Denso does. It’s on page 1-10 in the original, but the logic is in this manual.

Diagnostic Trouble Codes Table for the LAND CRUISER PRADO

Section 6 is the DTC table. This is not a generic list from a scan tool vendor. It’s Denso’s own table for this specific common rail system on the LAND CRUISER PRADO. Each code is tied to the supply pump, injector, rail pressure sensor, and ECU logic. I’ve had techs spend hours diagnosing a P0087 (low fuel pressure) because they didn’t have the factory flow chart. This manual gives you the table. Use it. The DTC list is on page 3 of the manual (table of contents) but the actual codes are in section 6.

3 Engine ECU Applications Covered

Section 7 covers the Engine ECU for three vehicles: LAND CRUISER PRADO, DYNA, and IMV. The manual explicitly states which ECU hardware and software apply to each vehicle. If you’re working on a LAND CRUISER PRADO and you grab a DYNA ECU pinout, you’ll burn a driver. This section prevents that. It also lists the applicable product list (section 1.3) so you know exactly which Denso part numbers are used. That’s the difference between OEM documentation and a bootleg PDF.

For deeper insight into the fuel system family, see the DENSO ECD-V Series Fuel Injection System Manual”>DENSO ECD-V Series Fuel Injection System Manual. Need ignition system specs? The DENSO Spark Plugs Catalogue 2008/2009 Automotive”>DENSO Spark Plugs Catalogue 2008/2009 Automotive is the right source. For oscilloscope-based diagnostics on these systems, the DENSO DST-i PC Oscilloscope Software Manual”>DENSO DST-i PC Oscilloscope Software Manual covers waveform analysis. If you’re dealing with a manual transmission swap, refer to Manual Transmission”>Manual Transmission and Manual Transmission”>Manual Transmission external resources for general information.

Frequently Asked Questions

Does this manual cover the 1KD-FTV engine?

Yes, it covers both the 1KD and 2KD engines for the LAND CRUISER PRADO.

What torque spec for the injector hold-down bolt?

This manual focuses on system changes and diagnostics, not full service specs. For torque values, you need the vehicle-specific factory service manual. However, the manual does include the SCV and injector QR codes for part verification.

How many pages?

31 pages.

Why should I use this over a generic aftermarket manual?

Because generic manuals mix up applications. This Denso technical manual is specific to the 2009 LAND CRUISER PRADO common rail system. It includes Denso’s own microinjection learning control procedure, QR codes for injector identification, and the DTC table for this exact engine application. Aftermarket reprints often omit these details, leading to misdiagnosis and wasted time. I’ve seen guys spend half a day chasing a fuel pressure issue that was clearly explained on page 18 of this manual.

Twenty-eight years in the shop have taught me one thing: when the fuel system on a LAND CRUISER PRADO goes south, guessing costs money. This technical manual from Denso gives you the factory logic, part changes, and diagnostic path. Don’t wing it. Access the Factory Manual and get the specs that keep that common rail system running right.
