Demag Komatsu H 285 S Service Manual – Factory Data for a 500-Ton Machine

I’ve seen too many guys try to rebuild a hydraulic mining shovel with aftermarket PDFs that miss half the torque values. Then they wonder why the track frame bolts back off after 200 hours. The Demag Komatsu H 285 S Service Manual is an OEM factory document—544 pages of what the engineers wrote when this machine rolled out of Düsseldorf. No third-party edits, no missing pages. You get the same book a dealer tech would have pulled off the shelf in 2005.

What the H 285 S Service Manual Actually Covers

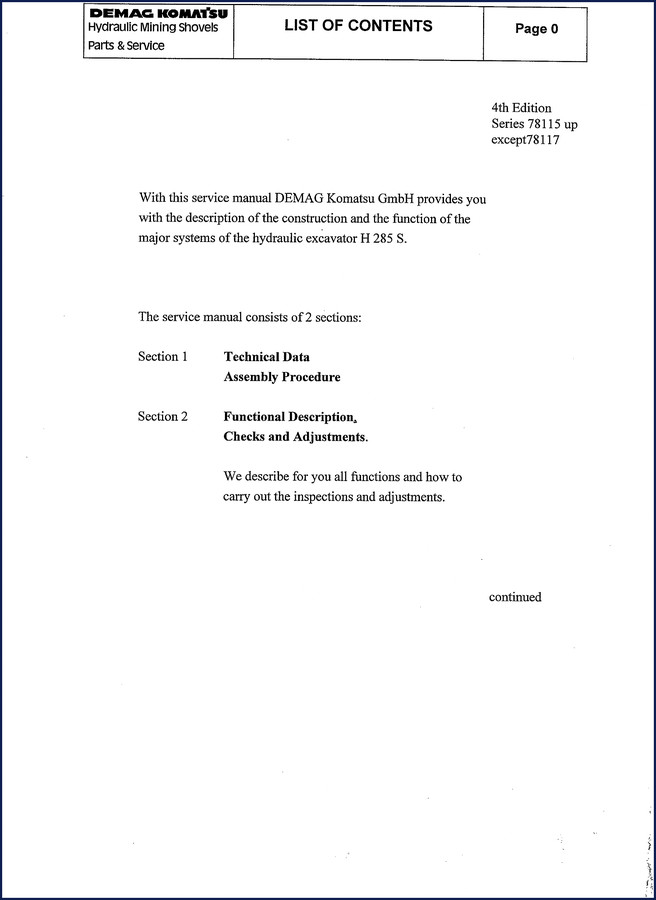

This manual splits into two distinct sections. Section 1 gives you Technical Data and the full Assembly Procedure—everything from track frame installation to final drive gear lash specs. Section 2 holds the Functional Description, Checks and Adjustments for every major system. Need the charge pressure for the swing circuit? It’s in there. Want to know the correct sequence for pinion bearing preload? That’s covered too. The manual also includes separate Hydraulic Diagram.pdf and Electrical Diagram.pdf files—the electrical alone runs 61 tif images showing every wire color, connector pin, and relay location.

Hydraulic Diagrams: The Real Deal

Aftermarket manuals will give you a generic schematic and call it good. This one gives you three dedicated .tif files for the hydraulic diagram (65999640001 through 65999640003). That’s the actual blueprint from Demag Komatsu, not a redrawn copy. If you’re troubleshooting a dead main pump or a stuck boom spool, you trace the lines on factory paper. No guesswork, no calls to the dealer for a diagram that may or may not match your machine’s serial number range (Series 78115 up, except 78117).

Electrical System Diagnostics: Factory Wiring in Full

Heavy equipment electrical gremlins eat billable hours. The Electrical diagram set here—89781540001 through 89781540061—covers every harness splice and ground point on the H 285 S. I’ve used these to trace a short in the engine ECU harness on a sister machine. The wiring is laid out component-by-component, with the connector views that tell you which cavity gets which gauge wire. You don’t need a multimeter and a prayer; you need the OEM document that shows the circuit as the factory built it.

3 Reasons to Choose OEM Documentation for Mining Shovels

First, torque specs. The manual calls out every fastener torque in Nm and lb-ft—no conversion math, no rounding. Page 1 of the technical data section lists the base values for structural bolts. Second, the assembly sequence. There’s a reason Demag specifies which bolts get tightened before others; skip it and you warp the housing. Third, the hydraulic calibration data. After a pump swap, you need the exact pressure set points. Aftermarket manuals often omit these. Factory data doesn’t. For related service information, check out the DEMAG KOMATSU H285 S Hydraulic Calibration if you’re digging deeper into pump tuning.

Torque Specs and Assembly Procedures: Why Page 1 Matters

You want to know the moment you should stop turning a fastener? Page 1 of the Technical Data section lays out the standard torque ranges for metric bolts used on the H 285 S. That’s the foundation. From there, the Assembly Procedure walks you through sub-assemblies like the swing gear, track roller frames, and cab mounting. Every step includes the tool type (impact gun vs. torque wrench) and the required tightening angle where applicable. This is not a general “tighten until snug” guide—it’s the factory’s step-by-step repair procedure. If you work on these machines regularly, also look at the White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs for lighter equipment, but don’t mix the two; this is a 500-ton shovel, not a lawn tractor.

Who Needs This Manual?

If you’re a field mechanic rebuilding Demag Komatsu shovels at a mine site, you need this. If you own a shop that maintains hydraulic excavators over 300 tons, you need this. Even a DIY landowner with an old H 285 S in a quarry—if you can lift 500-ton parts, you can benefit from the Maruti MB308 Service Manual – OEM Factory Specs for Proper Repairs for smaller vehicles, but this manual is for the big iron. The content assumes you have a basic understanding of hydraulics and electrical systems—it’s not a beginner’s book—but the diagrams and instructions make it workable for any experienced tech.

Source Authenticity: Why OEM Trumps Aftermarket

This is a direct scan of the 4th Edition Demag Komatsu publication (part number 8151.40). It’s not a reprint or a compiled PDF from someone’s binder. The hydraulic and electrical diagrams are separate, high-resolution files—you can zoom into the connector pin numbers without blur. Compare that to the cheap copies where the “electrical” section is a blurry photocopy of a photocopy. If you’re troubleshooting a no-start condition, those blurry copies will cost you a shift. This manual won’t. And if you need to understand the fundamentals of manual transmissions on other equipment, read up on Manual Transmission basics, but for the H 285 S’s powershift transmission, stick to this OEM document.

Frequently Asked Questions

Does this manual cover the H 285 S with serial number 78117?

No. The manual states it covers Series 78115 up, except 78117. You’ll need a different edition for that variant.

How are the electrical diagrams organized?

There are 61 separate .tif files in the Electrical Diagram.pdf set, each showing a specific circuit or section. They are numbered sequentially from 89781540001 to 89781540061. You’ll need a PDF viewer that handles tif images. I recommend opening them in an image editor to zoom without losing resolution.

Can I use this manual for a Demag Komatsu H 285 (no “S”)?

This manual is specifically for the H 285 S model. The “S” indicates a different swing gear ratio and updated hydraulic control valving. Using it on a non-S model could give you wrong adjustment specs. Check the model tag on your machine before ordering.

What torque wrenches do I need for the structural bolts?

The manual references torque values in both Nm and lb-ft. For most M30 and larger bolts, you’ll need a torque multiplier or a hydraulic torque wrench capable of 2,000+ lb-ft. Standard click-type wrenches won’t cut it. Refer to page 1 of the Technical Data section for the complete list.

You’ve got a 544-page factory document that tells you exactly how to take this machine apart and put it back together without breaking anything. The Manual Transmission stuff is for other jobs—this one’s about high-pressure hydraulics and 500-ton structural integrity. Access the Factory Manual and keep it on your tablet in the cab. It’s the difference between a two-day repair and a two-week headache.
