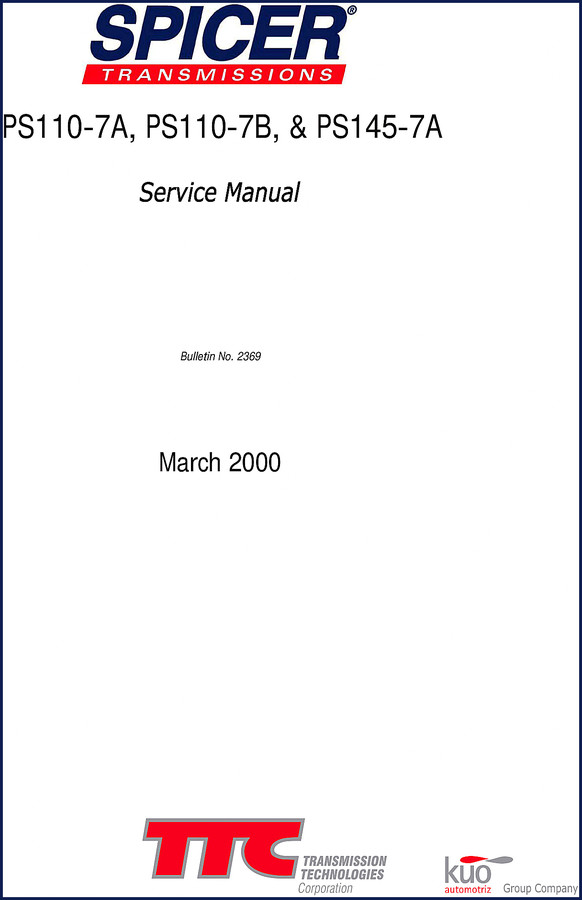

Dana Spicer PS110-7A, PS110-7B, PS145-7A 2000 Service Manual

I’ve seen more transmissions come apart wrong than I care to count. A guy throws a PS110-7A back together with aftermarket torque values and wonders why the input bearing hammers. Or he skips the shifter housing alignment and the remote control binds up in third. That’s the kind of headache this Dana Spicer PS110-7A, PS110-7B, PS145-7A 2000 Service Manual was built to stop. It’s the factory binder from Transmission Technologies Corporation, Bulletin No. 2369, March 2000. Forty pages, no guesswork, no reprints.

Torque Specifications – Page 2

Page 2 lists the torque specs for every fastener that matters. Not a range, not a guess — the OEM number. You need the clutch housing bolt torque? It’s there. The shift tower bolts? Same page. Any attempt to repair these transmissions without factory torque data is asking for leaks, stripped threads, or worse, a split case. The manual also includes shifting instructions on page 3, which sounds basic until you have a PS145-7A that refuses to go into deep reduction because someone skipped the preload procedure.

Gears & Case Disassembly – Section V

Section V starts on page 13 with the case group and clutch housing exploded drawing. Then page 14 walks you through the actual disassembly — snap ring depths, bearing puller setups, which shims stay with which cluster. The exploded drawing shows every thrust washer and seal orientation. If you’ve ever fought a countershaft that fell over during removal, you’ll appreciate the order they use. This is not a generic manual; it’s the Spicer field service document.

Mainshaft Reassembly – Section X

Page 25 gets into mainshaft reassembly. The manual expects you to have the right tool reference from Section II, page 5: the spanner wrench part numbers, the bearing installer cup dimensions. No shortcuts. The sequence for stacking the gears, the selective snap ring thicknesses, the preload shimming — it’s all there. Miss a step here and you’ll be pulling the damn thing apart again inside a month. I’ve done it. Don’t be that guy.

Does It Cover All Three Models?

The manual covers the PS110-7A, PS110-7B, and PS145-7A. The differences in shift rail lengths and output shaft options are noted in the specifications and in the exploded drawings. The center control shifter housing and forward control versions each get their own drawing on pages 10 and 11. You do not have to cross-reference three different books — that’s the whole point of an OEM manual for a transmission family. If you need the Dana Spicer 1372-A Service Manual – Factory Specs & Rebuild Guide for a different line, check that separate manual.

OEM vs Aftermarket – Why Factory Documentation Wins

I’ve seen third-party manuals copy the torque table wrong, miss a step in the shifter housing reassembly, or leave out the cleaning and inspection procedures in Section IX (page 24). That section tells you how to measure bearing clearance with a dial bore gauge and where to look for pitting on the input gear. Aftermarket books never include that. They want you to buy a complete rebuild kit whether you need it or not. This manual tells you what to inspect, what to replace, and what to reuse. That saves money and keeps the transmission together.

Page 34 has the troubleshooting section. Fourteen pages of build-up, one page of tear-down — the troubleshooting is compact but covers the common complaints: hard shifting, gear clash, oil leaks. Each symptom points back to a specific section. No fluff, no stories. Just a table and a set of steps.

For a complete list of factory manuals, see Dana Spicer ES60-5, CM59, ES60-5A, ES60-5C, ES60-5D Service Manual and Dana Spicer ES46-5 ES56-5 2002 Service Manual – 40 Pages of Factory Specs.

Can I use this manual for a PS145-7A rebuild?

Yes.

What about shift tower alignment specs?

Page 8 covers shift tower disassembly, and page 33 covers reassembly with the alignment procedure for the detent springs and shift rails. It also tells you the correct pin depth for the remote control linkage on page 32. These transmissions are sensitive to binding in the shift mechanism — the manual gives you the exact pin-to-centerline dimension in inches. Don’t do this job without it.

The factory manual for the Manual Transmission family is the only document that has the correct mainshaft end play spec for the PS110-7B with the deep reduction set. The aftermarket CD-ROM I tried once listed the wrong shim stack height. Cost me a Saturday and a set of bearings. This Dana Spicer book gives you the OEM numbers — the same ones the factory line techs used. No reprints, no copy jobs. A genuine TTC publication with the bulletin number and March 2000 date on every page. If you are rebuilding one of these transmissions, get the real thing. Manual Transmission repair is not guesswork. Access the Factory Manual and print the pages you need for the bench, or keep it on a tablet in a ziplock bag. Either way, you’ll have the torque data, the exploded views, and the procedures that come from Spicer, not some third-party typist with a scanner.
