Dana Spicer 16-SPEED, 18-SPEED Service Manual – Factory Specification Data

If you are wrenching on a Dana Spicer 16-SPEED or 18-SPEED transmission and you do not have the factory torque chart in front of you, stop. I have seen too many shops try to rebuild these with generic numbers from an aftermarket PDF. That is how you snap a countershaft bolt or cook a main bearing because the preload was wrong. This is the Dana Spicer 16-SPEED, 18-SPEED Service Manual – the same document the OEM sends to dealers. Fifty-nine pages. Not a bound book, but a digital scan that you can put on a tablet next to the oil bucket. Page 3 has the torque specifications for every fastener that matters. Page 16 lists the specialty pullers and press tools you need before you start. No fluff.

Torque specs are the backbone of any heavy transmission job. The manual lists them in ft-lbs for the main case bolts, the auxiliary section, and the shift housing. Do not guess what the input shaft nut should be torqued to – the factory number is on page 3. You also get the lube capacities in quarts (Imperial). That might save you from overfilling and blowing out an oil cooler seal. I have seen that happen.

Torque Specifications on Page 3 – Why You Need Them

Every bolt in this transmission has a specific torque value. The Dana Spicer engineers tested these numbers under load, with the gaskets and sealants they specify. If you use a generic chart from the internet, you risk distorting the main case or pulling threads out of the aluminum shift tower. The manual covers main case bolts, auxiliary section fasteners, shifter housing bolts, and the oil cooler fittings. Write the values on the bench if you have to, but use the factory numbers.

Shifting Instructions: 16-SPEED vs 18-SPEED Models

Shifting these transmissions is not like a car. The 16-SPEED uses a different splitter pattern than the 18-SPEED. Page 6 gives the step-by-step shift sequence for the 16-SPEED, starting with the low range and working up. Page 8 does the same for the 18-SPEED. If you are teaching a new driver or diagnosing a shift complaint, follow the OEM logic. The manual also explains how the air system engages the splitter – something aftermarket guides often simplify incorrectly. I have had to explain to a shop foreman why his driver kept grinding third gear because he was splitting at the wrong RPM. The answer is right here.

Basic Maintenance: Lubrication and Bearings

Lubrication is where most failures start. The manual dedicates pages 10-13 to oil types, levels, and intervals. It lists the recommended gear oil viscosity for San Antonio summers versus northern winters. Bearings are covered on page 11 – how to check for spalling, brinelling, or heat damage. Gears and collars inspection is on page 12. Do not skip the air filter regulator section (page 12) if you have an automated shift version. Clogged filters cause erratic shifts that look like electrical problems.

Get the Right Torque Data – Factory vs Aftermarket

Aftermarket manuals are a gamble. I have seen ones that list the oil capacity wrong by two quarts. Or they leave out the torque for the auxiliary section oil pump bolts because they copied an older edition. This is an OEM Spicer service manual. The part number, the publication date, the safety warnings – they all match what the factory printed. The Manual Transmission on Wikipedia explains the general theory, but for the actual numbers you need the Spicer document. The troubleshooting section (page 51) covers common issues like hard shifting, noise, and gear jump-out with the factory diagnostic tree. That is not something a generic book provides.

Is This OEM or Aftermarket? (Source Authenticity)

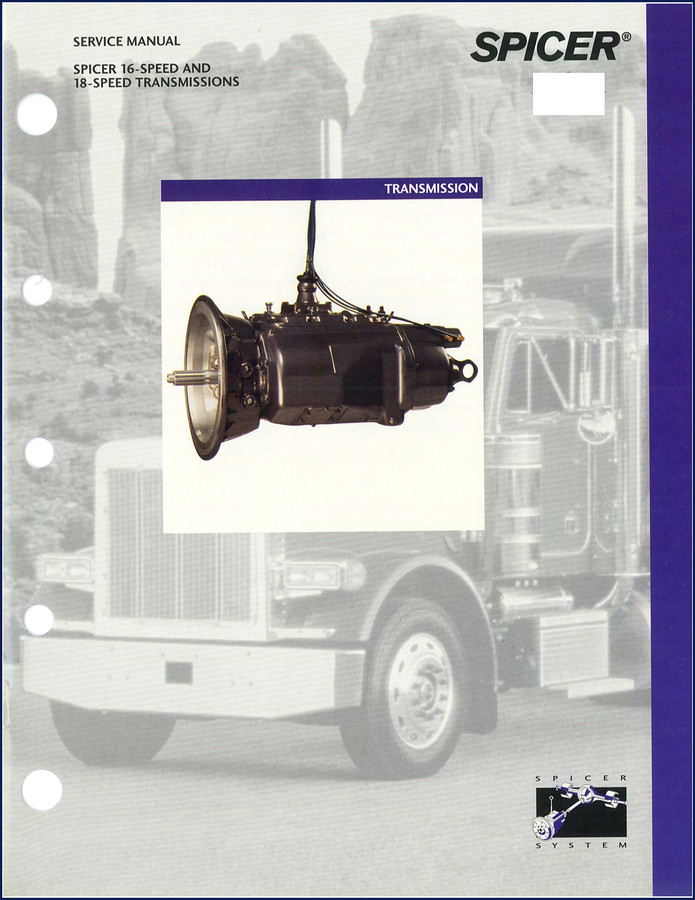

This is a direct scan of the Spicer factory publication. No third-party rewriting, no generic tables. The cover reads “SPICER 16-SPEED AND 18-SPEED TRANSMISSIONS SERVICE MANUAL” with the Spicer logo. Inside, every page references the official Dana Spicer part numbers and specifications. If you call the Spicer support line at 800-666-8688, they can confirm the tech data matches their current revision. That is the level of accuracy you need when you are about to drop a 400-pound transmission back into a truck.

Related manuals you might need for other Dana products: Dana Spicer 1372-A Service Manual – Factory Specs & Rebuild Guide covers a different transmission family, but the same torque philosophy applies. Dana Spicer ES60-5, CM59, ES60-5A, ES60-5C, ES60-5D Service Manual is for the lightweight axles. Dana Spicer ES46-5 ES56-5 2002 Service Manual – 40 Pages of Factory Specs gives you the same factory attention to detail for those models. And for a broader technical overview, see the Manual Transmission article on Wikipedia.

FAQ – Common Questions About This Manual

Does this manual cover both the 16-SPEED and 18-SPEED models?

Yes. The same document includes separate shifting instructions, torque specs, and disassembly procedures for each model. Pages 6-9 cover the shift patterns.

What kind of torque specs are listed?

All critical fastener torque values are on page 3, in ft-lbs. Includes main case bolts, auxiliary section, shift housing, and oil cooler fittings. No aftermarket rounding.

Can I use this for a transmission that is not a Spicer?

No. This manual is specific to Dana Spicer 16- and 18-speed transmissions. Using these torque values on a different brand risks damage. Get the correct OEM manual for your transmission.

How do I know the digital copy is complete and accurate?

The scan is a direct reproduction of the factory publication. All 59 pages are present, including the table of contents, troubleshooting section, and the full disassembly/reassembly sequences. Compare the page numbers with the TOC listed in the description – they match. If you find a page missing, contact support.

You need the factory data because torque wrenches do not forgive. Access the Factory Manual – get the full scan, print the torque page if you want, and keep it on your bench. That is how you avoid a comeback.
