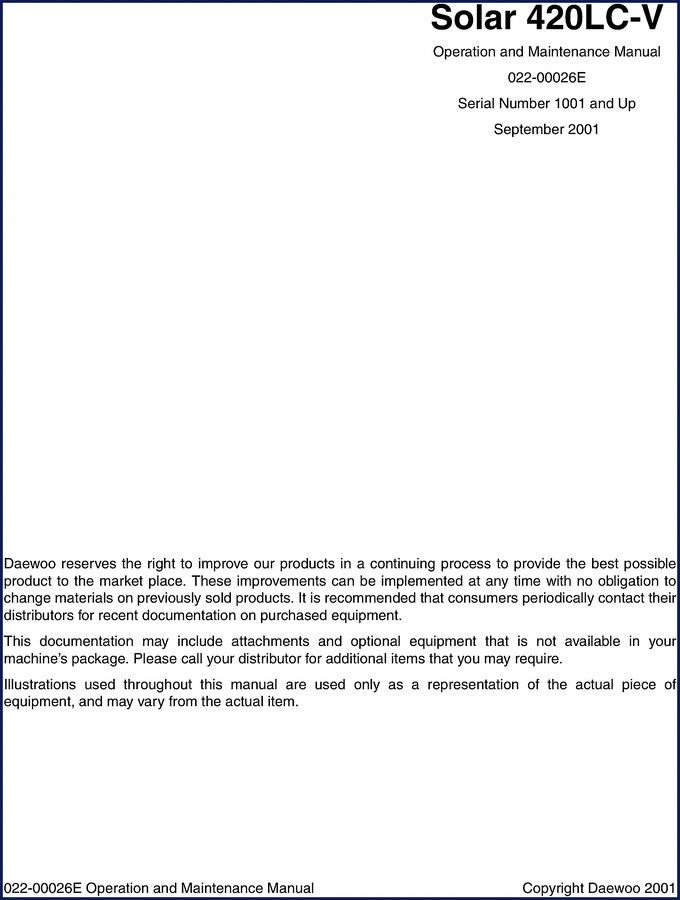

Daewoo Solar 420LC-V 2001 Operators Manual – OEM Factory Safety & Operation Guide

If you are running a Daewoo Solar 420LC-V 2001 Operators Manual on a job site and you don’t have the factory operators manual sitting in the cab, you are asking for trouble. Aftermarket reprints skip half the safety labels and leave out critical warnings for high pressure cylinders and rotating parts. That is how people get hurt. This 2001 Operators Manual from Daewoo is the real document – 238 pages of OEM content that tells you exactly where the decals go and what each one means. No guesswork.

Daewoo Solar 420LC-V 2001 Operators Manual: Safety Coverage

Safety section runs from page 1-1 through 1-41. That is not a placeholder – the factory dedicated over forty pages to keeping operators aware of hazards. Locations of all sixteen safety labels are documented with part numbers like 190-00688, 190-00092. Need to know where the high pressure cylinder warning decal goes? Page 1-4 lists it as warning #4 for a high pressure cylinder (190-00122). The manual also includes a summary of lifting precautions in digging mode, unauthorized modifications warnings, and specific instructions for handling fluids at high temperature. If you skip this section, you are operating blind.

Location of Safety Labels and General Hazard Information

Each of the sixteen labels has a clear diagram showing placement on the machine. Warnings cover everything from battery maintenance (2190-2533A) to rotating parts (190-00694). The General Hazard Information subsection inside that chapter covers fire prevention, asbestos dust hazard, and proper use of PPE. For specific lifting guidelines, refer to the Daewoo Solar Track Excavator Safety Manual 2001 – Section: Lifting With Sling.

Operating Controls and Instrument Panel

Chapter 2 starts with component locations and operator’s area layout. The operational controls and panels list includes the starter switch, engine speed control dial, light switch, and wiper switch – all with factory descriptions. Instrument panel section on page 2-14 gives you the functional check procedure for the engine coolant temperature gauge, fuel gauge, and multifunction gauge. The engine section covers starting procedures for the diesel Internal Combustion Engine, including checks before starting and the booster switch procedure (right-hand work lever, item 16).

Before Starting Engine and Machine Operation

Work site precautions, checks before starting, and the actual engine starting procedure are laid out in sequence. Machine operation covers swinging, travel precautions, slope operation, and prohibited operations. Travel controls are hydraulic, not a Manual Transmission, but the manual explains the travel speed selection switch and how to use it properly. Operators who ignore these steps risk rollovers or swing collisions.

Why OEM Documentation Matters for Heavy Equipment

Aftermarket copies often cut corners – blurry label diagrams, missing part numbers, wrong torque values. This manual is a direct scan of the original Daewoo print, serial number 1001 and up, revision September 2001. Every page carries the copyright notice from Daewoo. If you need the factory specs for a smaller model, check the Daewoo Solar 400LC-V 1998 Operators Manual – Factory Specs & Safety or the Daewoo Solar S220LC-V 1998 Operators Manual – Factory Specs & Safety.

Who Should Use This 238-Page Operators Manual

Machine owners who want to keep their Solar 420LC-V running without surprises. Fleet managers who need all operators on the same page. DIY mechanics who maintain their own excavator and refuse to trust a generic PDF. This manual is for anyone who needs the actual safety label locations (including part numbers for replacement decals), the real lifting capacity tables, and the factory-recommended inspection schedule. It is not a service manual – it will not walk you through overhauling the engine. It will keep you alive and legal on the job site.

FAQ

Does this manual cover the fuel system?

Yes – fuel gauge operation is covered, but fuel system overhaul is not. This is an operators manual, not a service manual.

What safety labels are listed?

Sixteen labels are documented with exact part numbers. These include warnings for high voltage (190-00689), high pressure cylinder (190-00122), track tension adjustment (2190-3386A), battery maintenance (2190-2533A), rotating parts (190-00694), and more. Each label has a diagram showing its location on the machine.

Is there a section on towing procedures?

Yes – page 1-39 covers towing precautions, including weight limits and attachment points.

How many pages does the manual have?

238 pages total, including the table of contents and rated lift capacity tables.

Access the Factory Manual now and put the real Daewoo documentation in your cab. You will know exactly where every decal goes, how to start it safely, and what to do when something goes wrong. That is what a 238-page factory operators manual gives you – confidence that comes from printed OEM specs, not guesswork.
