Cummins ISDe, ISLe User Manual – INSITE Software Guide for CM2100 ECM

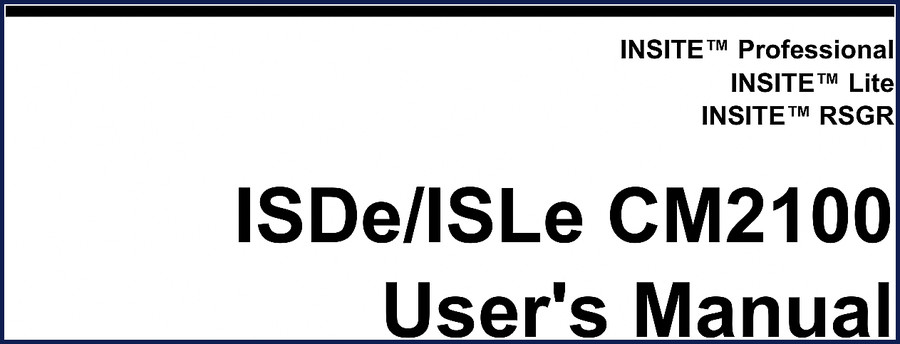

You have a Cummins ISDe or ISLe with a CM2100 ECM, and the INSITE software is sitting on your laptop. But you keep getting “Connection Failed” or you can’t find where to set the ECM passwords. I’ve seen guys waste half a shift wrestling with the wrong cables and guessing at menu options. That’s why the Cummins ISDe, ISLe User Manual belongs on your bench. This is the OEM document – the one the factory ships with the INSITE suite. 206 pages, no filler, no third-party rewrites. It tells you exactly how to register INSITE, connect your PC to the ECM, and navigate every window from the Viewbar to the ECM Templates.

Page 8 lays out the connection procedure. You get the cable type, the COM port selection, and the exact steps for a New Connection. You also get the Password setup on page 10 – Add, Lock, Change, Disable, Remove. That alone will prevent you from locking yourself out of a customer’s ECM. The manual covers INSITE Lite, INSITE Professional, and INSITE RSGR, so whatever variant you’re running, the screens match.

INSITE Connection: Getting Your PC to Talk to the ECM

Chapter 2 (starting page 8) is the one you’ll dog-ear first. “Connecting your PC to an ECM” walks through the hardware: which cable, which port, and how to verify the handshake. If you’ve been fighting with aftermarket adapters and random drivers, this section will save you a call to tech support. The manual shows the Connection Options dialog and explains when to use RS232 versus the USB gateway. It also covers the Connection Wizard (page 14) if you want a step-by-step assistant.

Data Entry Techniques and Toolbar Commands

A big complaint I hear from techs is that INSITE menus seem to disable themselves at random. Page 5–7 explains exactly when options are disabled – usually because you’re not connected or you don’t have the right password level. “Data Entry Techniques” covers how to enter values, use the Toolbar, and read the Status Bar. No guesswork. The manual also details the Right Click Menu on ECM Images (page 23) and Templates (page 25). If you’ve ever needed to copy an ECM configuration from one truck to another, the Exporting and Importing section on page 27 is gold.

ECM Passwords and PowerSpec Authorization

Locking or unlocking an ECM without the right procedure can brick the unit. This manual gives you the exact Add, Lock, Change, Disable, and Remove steps (pages 10–13). It also covers PowerSpec Authorization – something many aftermarket guides skip entirely. If you’re working with fleets that use PowerSpec, you need those permissions to change feature settings. The manual doesn’t assume you’re an IT guy; it spells out what each password level does and how to request a new authorization code.

Using Task Wizards for Diagnostics

Task Wizards are the fastest way to run a system test or create a work order. The manual devotes pages 14–19 to the Connection Wizard, Work Order Wizard, and ECM Diagnostic Tests Wizard. The Work Order Wizard (page 16) lets you attach images to the repair record – something dealers require for warranty claims. The Diagnostic Tests Wizard runs ECM self-tests and logs codes. If you’re a field mechanic trying to clear a fault without the full shop software, these wizards are your shortcut.

Why the OEM INSITE Manual Beats Aftermarket Instruction Sheets

I have a stack of aftermarket “cheat sheets” that got torque specs wrong and skipped whole sections. This Cummins ISDe, ISLe User Manual is scanned from the original factory document. Every screenshot, every menu path, every password policy is either Cummins-approved or a direct copy of the software’s own help files. You’re not guessing. You’re following the same steps the dealer techs use. If you need to train a new hire or just get consistent with INSITE, this is the document. Related manuals: Cummins ISBe ISDe CM2150 Operation and Maintenance Manual, Cummins ISBe ISLe CM2150 User’s Manual, and Cummins QSM11 CM876 INSITE User Manual – 166 Pages | AutoRepairManuals. For background on how manual transmissions interact with ECM control logic, see Manual Transmission and Manual Transmission.

FAQ – Cummins ISDe/ISLe User Manual

Does this manual cover the ISBe or only ISDe/ISLe?

This manual is specifically for ISDe and ISLe engines with the CM2100 ECM. It does not cover ISBe or CM2150 controllers.

What version of INSITE does this manual apply to?

The manual covers INSITE Professional, INSITE Lite, and INSITE RSGR as of the publication date. It includes detailed descriptions of the user interface, viewbar, task wizards, and data entry techniques that are common across those versions. If you’re running a newer version (7.x or later), the core navigation and password management sections still apply, but some wizard screens may have changed.

Can I use this manual with Cummins engines other than ISDe/ISLe?

Only if those engines share the CM2100 ECM. Some ISX and ISM engines used different controllers. Check the model number on the ECM label; if it says CM2100, this manual’s INSITE instructions will work.

How do I get the manual after purchase?

Immediately after checkout, you’ll receive a access link to the PDF. No waiting, no shipping.

You’ve got the truck, the laptop, and the INSITE disc. Now get the factory documentation that ties it all together. Access the Factory Manual.
