Clarion PN-3001P-A, PP-3001M-A, PP-3001M-B 2007 Service Manual

Clarion PN-3001P-A, PP-3001M-A, PP-3001M-B 2007 Service Manual is the factory document for these Nissan genuine 1CD LW/MW/FM/RDS Bluetooth combo units. I’m Mike Callahan, 28-year ASE Master, and I’ve seen more burned-up radio boards than I care to count because some guy grabbed a third-party wiring schematic off the internet. This 28-page OEM reprint gives you the actual connector layout, the ESR readings on the electrolytic caps, and the exact removal procedure for the DSP IC that’s soldered with exposed die pads. Don’t mess around with generic pinouts.

Electrical Tracking: The CONNECTOR LAYOUT and CIRCUIT DIAGRAM

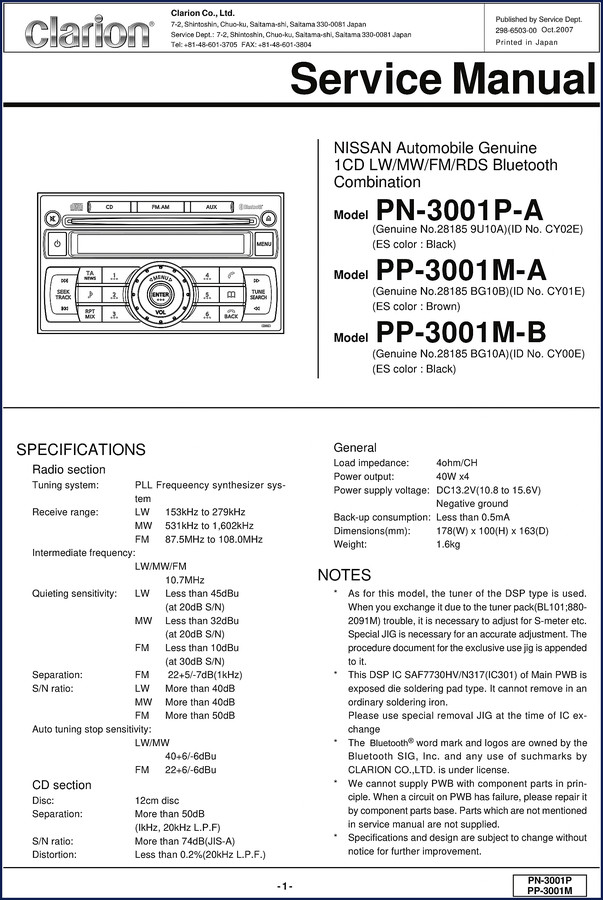

Page 1 gives you the full radio specs: FM quieting sensitivity under 10 dBu, LW/MW intermediate frequency 10.7 MHz, power output 40W x 4 into 4 ohms. That’s not just a number—it tells you what signal level you need to see at the antenna input before you start chasing a dead tuner. The CONNECTOR LAYOUT section (page 3 of the manual) maps every pin on the main harness. I’ve had guys come in with a unit that had no display, and they were poking at random pins. One look at the factory diagram showed the backup power pin was dead. Wiring issues kill these radios faster than any blown output transistor.

7 Systems Covered in the Manual

This isn’t a generic radio repair book. It covers the entire chain: radio section (LW/MW/FM), CD section (12cm disc, separation >50 dB), Bluetooth module, power supply, mechanical disc loader, and the DSP control board. The TROUBLESHOOTING chapter walks you through fault isolation without swapping parts blindly. For example, if the CD won’t eject, the manual tells you to check the limit switch through the CONNECTOR LAYOUT pin 2 of CN501. That’s the kind of step that saves an hour of disassembly. The CD MECHANISM section (929-5004-81) has its own exploded view and parts list—another 5 pages of laser diode alignment and gear replacement procedures.

What Torque Values Are Listed?

Short answer: the manual doesn’t list chassis bolt torque—this is an electronics service manual. But what it does give you is the electrical torque specs in the form of component values. Every capacitor, resistor, and IC is listed in the ELECTRICAL PARTS LIST with exact part numbers. The PRINTED WIRING BOARD (Switch) diagram shows trace widths and pad locations. That’s critical when you’re reflowing a bad joint on the main board. The manual also includes the special removal JIG requirement for the DSP IC (SAF7730HV/N317 on Main PWB). If you try to unsolder that exposed die pad with a standard iron, you’ll lift the trace. Page 2 in the NOTES section explicitly warns about that.

Does This Manual Cover the CD Mechanism and Laser Adjustment?

It does. The CD MECHANISM block diagram and circuit diagram are separate sections. The laser diode is a Class 1 product. The CAUTION on page 2 tells you not to open the enclosure without following the safety procedure. If you need to replace the optical pickup, the manual gives the exploded view with the part number for the 929-5004-81 unit. You can adjust the S-meter on the tuner pack (BL101;880-2091M) only with a special JIG—the manual has the procedure document appended. Don’t attempt that without the JIG. I’ve seen tuner packs destroyed by blind trimming.

Source Validity: OEM vs Aftermarket Documentation

I refuse to use third-party reprints for electrical diagnostics. This is a direct scan of the original Clarion Service Manual published October 2007 by the Clarion Service Dept. in Japan. The BLOCK DIAGRAM, CONNECTOR LAYOUT, and CIRCUIT DIAGRAM (Main and Switch) are factory-authorized. Compare that to some PDF you find on a forum where someone drew the pinout from memory. The manual also lists the genuine Nissan part numbers: PN-3001P-A (28185 9U10A), PP-3001M-A (28185 BG10B), PP-3001M-B (28185 BG10A). Those numbers are gold when ordering replacement components from the dealer. The ELECTRICAL PARTS List is complete—no missing values. For background on why factory specs matter in the broader automotive electronics world, see this Automotive Industry Overview. And if you’re working on a vehicle with a manual transmission that has a factory radio interface, this manual still applies—it’s a standalone unit, but the wiring harness interacts with the vehicle’s CAN bus. Use the Manual Transmission link to understand the contrast in electrical complexity.

Related Manuals Worth Your Time

• Clarion ARX5370R 1997 Service Manual – Factory Radio Cassette CD Repair”>
• White Outdoor LT-5 – 700 Series Rider Service Manual”>
• Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D”>

How many pages does the manual have?

28 pages exactly.

Does it include wiring diagrams for the Bluetooth module?

Yes. The Bluetooth section is part of the main circuit diagram. The BLOCK DIAGRAM shows the signal path from the Bluetooth IC to the DSP. The manual mentions the Bluetooth word mark is licensed from Bluetooth SIG. If you need to troubleshoot a no-audio condition on Bluetooth calls, start at the CONNECTOR LAYOUT and verify the audio output pins (CN401, pins 3 and 5). The ELECTRICAL PARTS LIST includes the part numbers for the Bluetooth module components, so you can order exact replacements instead of guessing. That’s what I do when a customer’s hands-free stops working after a windshield replacement that damaged the antenna amplifier—chase the signal path, not the parts cannon.

What year was this published?

October 2007.

Can I use this manual for a different Clarion model like the ARX5370R?

No. The wiring, DSP, and CD mechanism are specific to the PN-3001P/PP-3001M series. For the ARX5370R, get the correct manual: Clarion ARX5370R 1997 Service Manual – Factory Radio Cassette CD Repair”>. Using the wrong wiring diagram will blow the microcontroller.

Look, I’ve been doing this since before most DIY guys were born. If you’re sitting at a bench with a dead Nissan factory radio and you’re tired of swapping boards, this is the document that gets it working. Access the Factory Manual and have the actual OEM wiring on your screen—not some forum copy.
