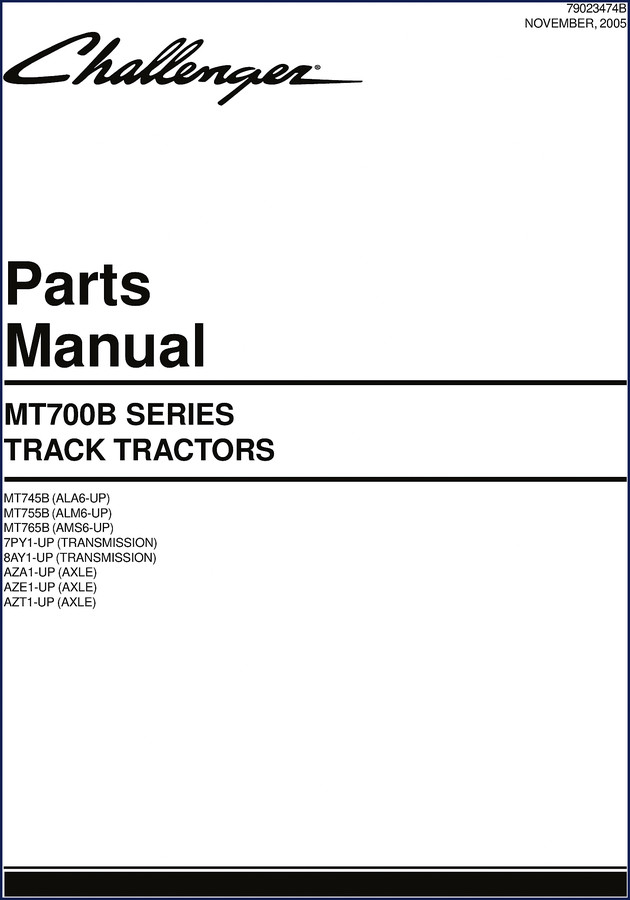

Challenger MT745B, MT755B, MT765B, 7P71, 8AY1 2005 Parts Catalog

Ever had a 700-horsepower tractor sitting dead in the field because you ordered the wrong fuel tank mount? I have. That mistake cost a customer a full day of planting and me a lot of goodwill. A factory Challenger MT745B, MT755B, MT765B, 7P71, 8AY1 2005 Parts Catalog stops that kind of guesswork cold. This isn’t a reprint or a third-party compilation. It’s the OEM print from November 2005, exactly what the dealer parts counter uses to look up part numbers for MT700B Series Track Tractors. If you’re wrenching on any of these models—MT745B (serial ALA6-UP), MT755B (ALM6-UP), MT765B (AMS6-UP), or transmissions 7P71 and 8AY1—this is the only source I trust.

Part Numbers and Exploded Views

Each assembly in this 1171-page manual gets its own illustration on the left page and a text list on the right. Every part gets an item number, a factory part number, a quantity, and a description. Common hardware like bolts and nuts is listed indented beneath the item it attaches to—but you only order that hardware if the description says “Incl.” Miss that detail and you’ll be waiting on a $0.50 bolt while the machine sits. The Engine section alone covers basic engine groups: air compressor GP (501652D1), flexible coupling options, accessory drive, alternator mounting, refrigerant compressor mounting. Each subgroup has its own page with every nut and bracket identified.

Which Models Are Covered?

Besides the main tractor models MT745B, MT755B, and MT765B, the manual includes transmission identifiers 7P71 and 8AY1 (7P1-UP, 8AY1-UP). Axle serial numbers 6ZA1-UP, AZE1-UP, AZT1-UP are also listed. This covers the whole MT700B track tractor line from the 2005 production year. If you’ve got one of these machines, the part numbers in this catalog are the same ones the Challenger dealer stocks. No generic cross-references—these are the OEM numbers you write on the order form.

What If You Need a Related Manual?

If you’re working on a different Challenger model, check out the Challenger MT 655B 665B TECHstar CVT Parts manual for those CVT-equipped machines. For the larger frame tractors, the Challenger MT800B Series Tractors Parts Manual covers the 800B series. If you need braking system parts specifically, the Challenger MT800 Series Track Tractors Parts Manual – Section: Braking System breaks down accumulator and brake assemblies. All factory prints, all from the same source.

Why OEM Documentation Matters

Aftermarket parts catalogs often renumber parts or leave out hardware groups. I’ve seen aftermarket manuals that list “FUEL TANK GP” but don’t show the separate mounting kit part numbers. This OEM catalog includes everything: fuel tank arrangements (165-8506, 210-1381, 500100D1), mounting groups (171-3737, 197-8133, 199-3433, 203-7082), and even fuel tank kits (199-3432, 210-1382). If you order parts from an aftermarket source, you’re rolling dice—and dice don’t belong on a repair bench. This manual came from Challenger’s own publication (PN 79023474B, November 2005). The indexing system lets you look up any part number numerically or alphabetically. The Automotive Industry Overview article outlines why factory documentation is the gold standard for heavy equipment repairs. Same principle applies here: when you’re pulling a transmission on a MT755B, you want the exact part number for the coupling GP (168-5077 or 163-0450 depending on model)—not a suggestion.

Index Systems: How to Find Any Part

This manual starts with an alphabetical index and a numerical index. Flip to the alphabetical section to locate a major group like “BRAKING SYSTEM” or “ELECTRICAL AND STARTING SYSTEM.” The numerical index tells you on which page and grid location a specific part number appears. All part numbers in the text match the manufacturer’s database. If you’ve got a part number from an old invoice, the numerical index gets you straight to the illustration. No flipping through hundreds of pages guessing.

Reading the Exploded Views and Hardware List

Each illustration has item numbers that correspond to a column on the facing text page. The text lists part number, quantity, description. Common hardware (bolts, nuts, cotter pins, lube fittings) is indented below the item it belongs to. But read carefully: hardware indented without the word “Incl.” is NOT included with that assembly. You have to order it separately. I’ve seen guys order a mounting GP and assume the bolts come with it. They don’t, unless it says “Incl.” Check the fine print before you place the order.

FAQ

Does this manual include torque specs for assembly?

No. This is a parts catalog, not a service manual. It gives part numbers and exploded views, not torque values or repair procedures. For torque specs, you need the matching Challenger MT700B service manual.

Can I use this to order parts for a 2006 model?

The manual covers 2005 model year. Later models may have superseded part numbers. Cross-check with your dealer. But for 2005 MT700B tractors, the numbers are correct.

The bottom line: if you need to order a water pump, a fan suction group, or a complete brake assembly for your Challenger MT745B, MT755B, or MT765B, you need the factory part numbers. This 1171-page OEM catalog gives you those numbers, organized so you can find them fast. No flipping through blurry scans or guessing at supersessions. Access the Factory Manual and put the right parts on your bench the first time.
